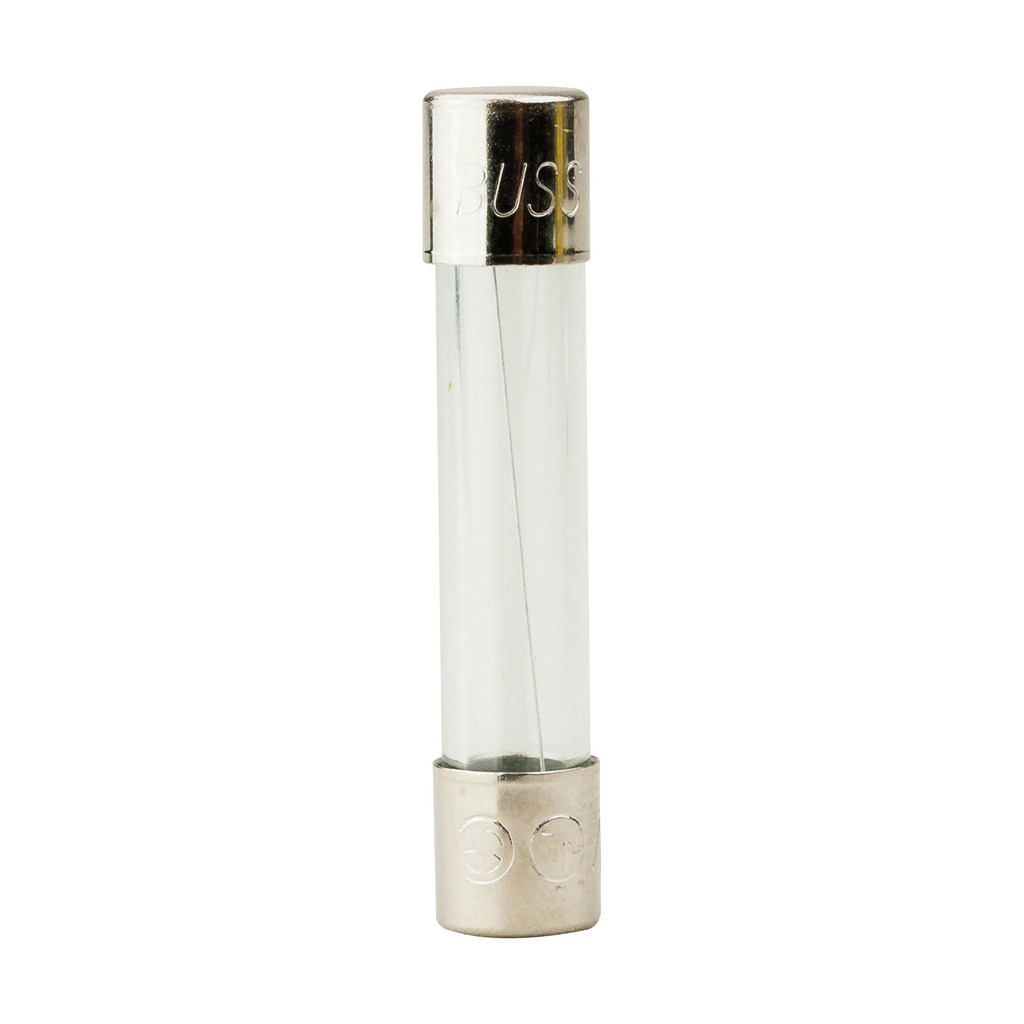

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Manuals & Documentation
Catalog Number AGC-1-1/2-R
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin Multiple
Made in USA No
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Ferrule end x ferrule end
Interrupt Rating 100 AIC at 250 Vac|10 kAIC at 125 Vac
Material Glass tube|Nickel-plated brass end cap construction
Response Time 60 min at 135%, 120 sec at 200%
Special Features Interrupt Rating 100 Amp at 250 Vac, 10000 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant
Standard RoHS Compliant
UPC 051712654821
GTIN 00051712654821
Item Type Fast-acting glass tube fuse
Weight UOM Pounds
Size 1/4 In Diameter X 1-1/4 In Length
Voltage Rating 250 Vac, 32 Vdc (self certified)
