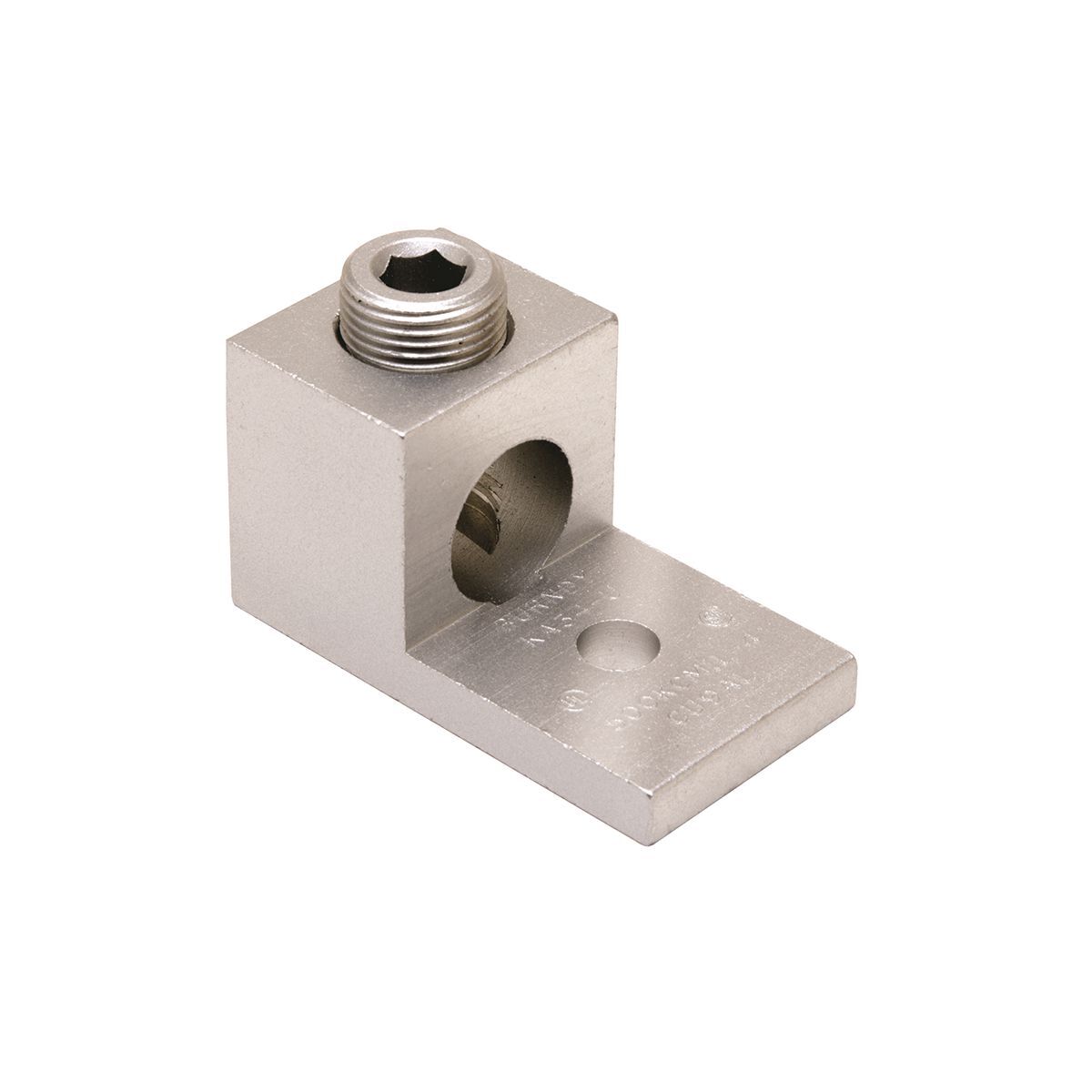

KA40U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 300 to 800 kcmil Copper/Stranded Aluminum Conductor, 1/2 in Stud, 1 Bolt Hole, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KA40U
- UPC:
- 781810370308
- Item #:
- 283458
KA40U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 300 to 800 kcmil Copper/Stranded Aluminum Conductor, 1/2 in Stud, 1 Bolt Hole, Aluminum
- MFR #:
- KA40U
- UPC:
- 781810370308
- Item #:
- 283458
Manuals & Documentation
| Catalog Number | KA40U |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Aluminum And Copper Conductors |
| Material | Aluminum |
| Number of Conductors | 1 |
| Special Features | Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Number Of Screws: 1, Dimension D: 1.69 IN, Stud/bolt Hole Size: 1/2 IN, Dimension N: 0.88 IN, Dimension T: 0.5 IN, Installation Torque: 500 IN-LB, Set Screw Type: Allen Key, Height: 1.94 IN, Width: 1-3/4 IN, Length: 3.38 IN |
| Standard | UL 486A-486B |
| UPC | 781810370308 |
| GTIN | 00781810370308 |
| Item Type | Bolted Lugs & Terminals |
| Cross Reference Products | TA-800-S, 800T |
