SQUARE D

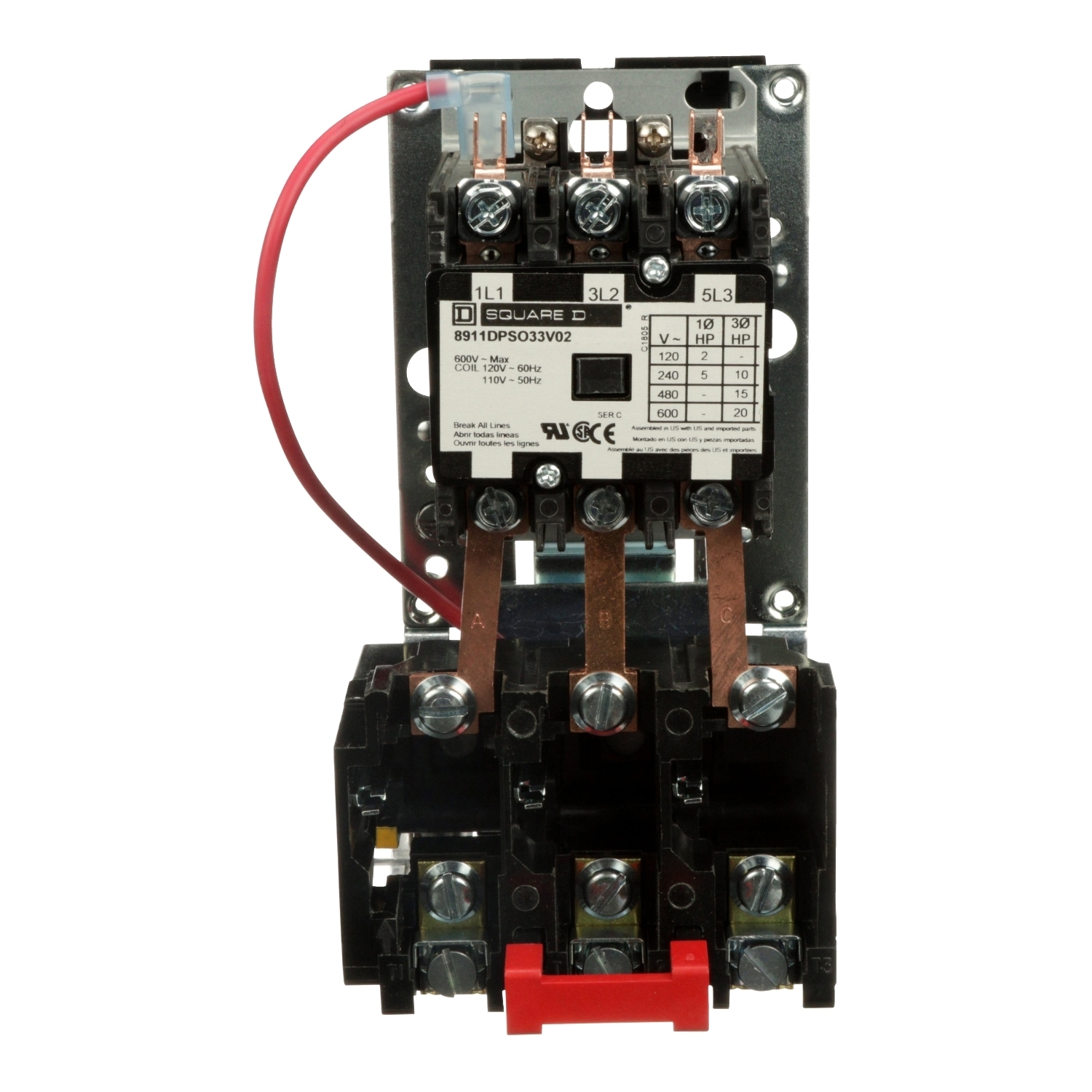

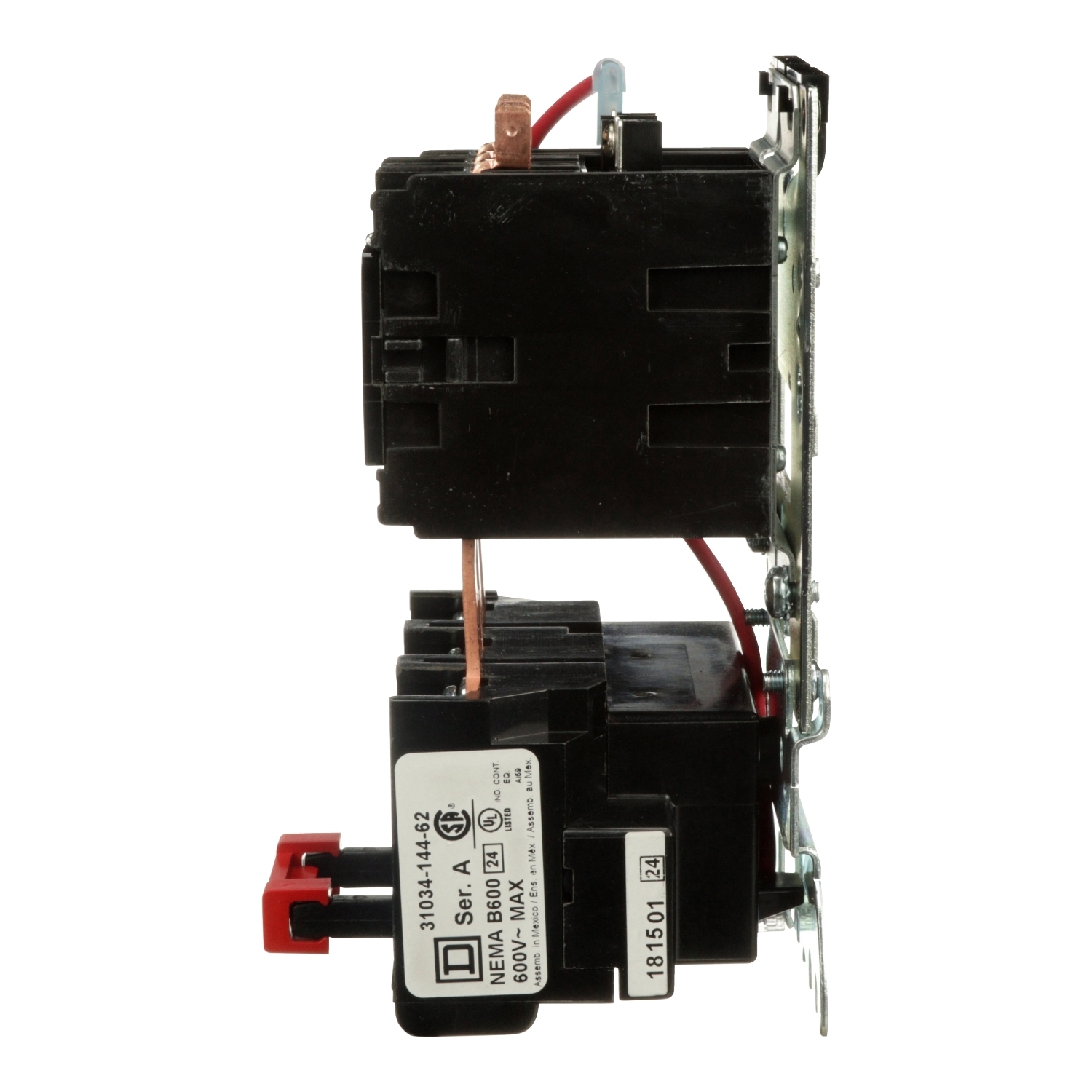

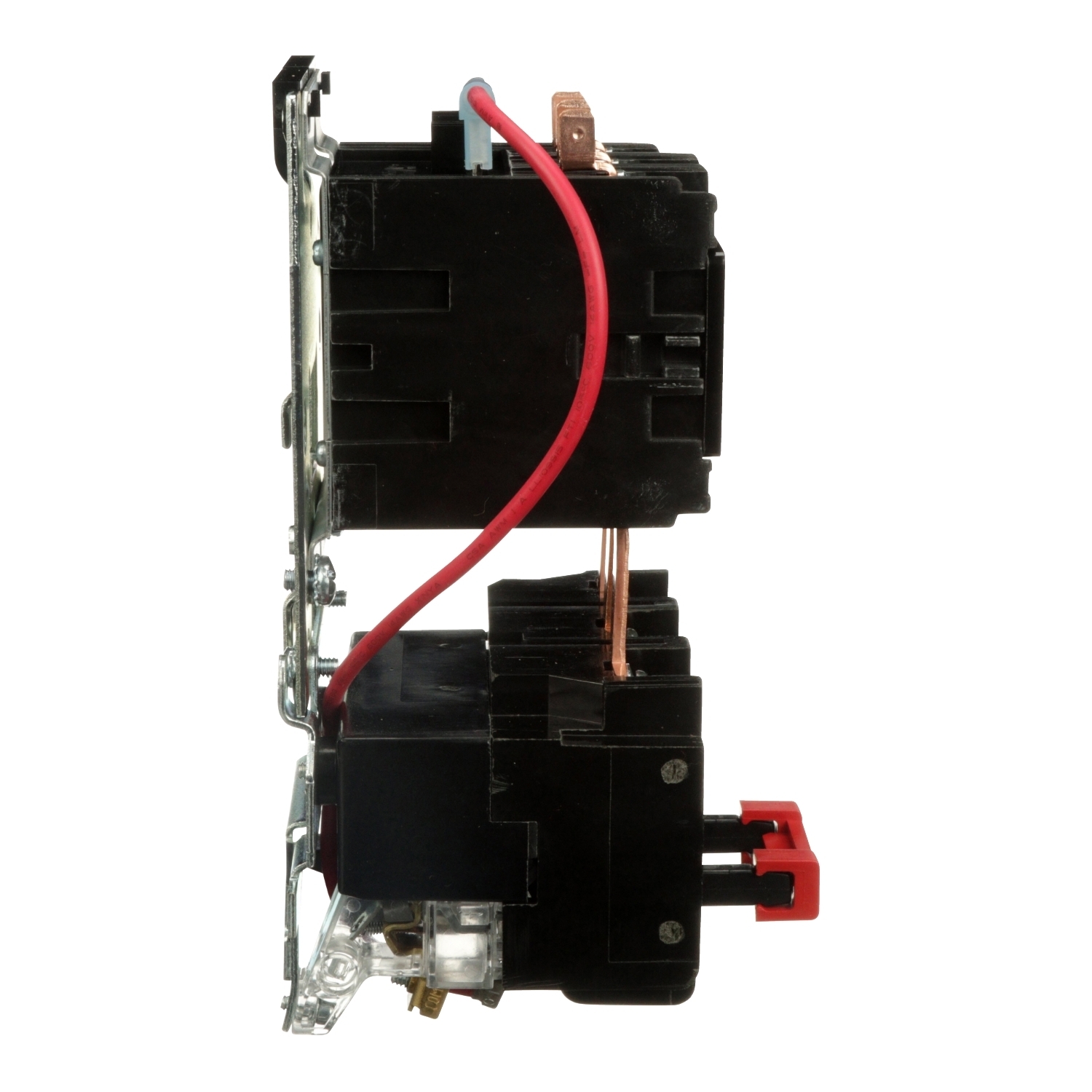

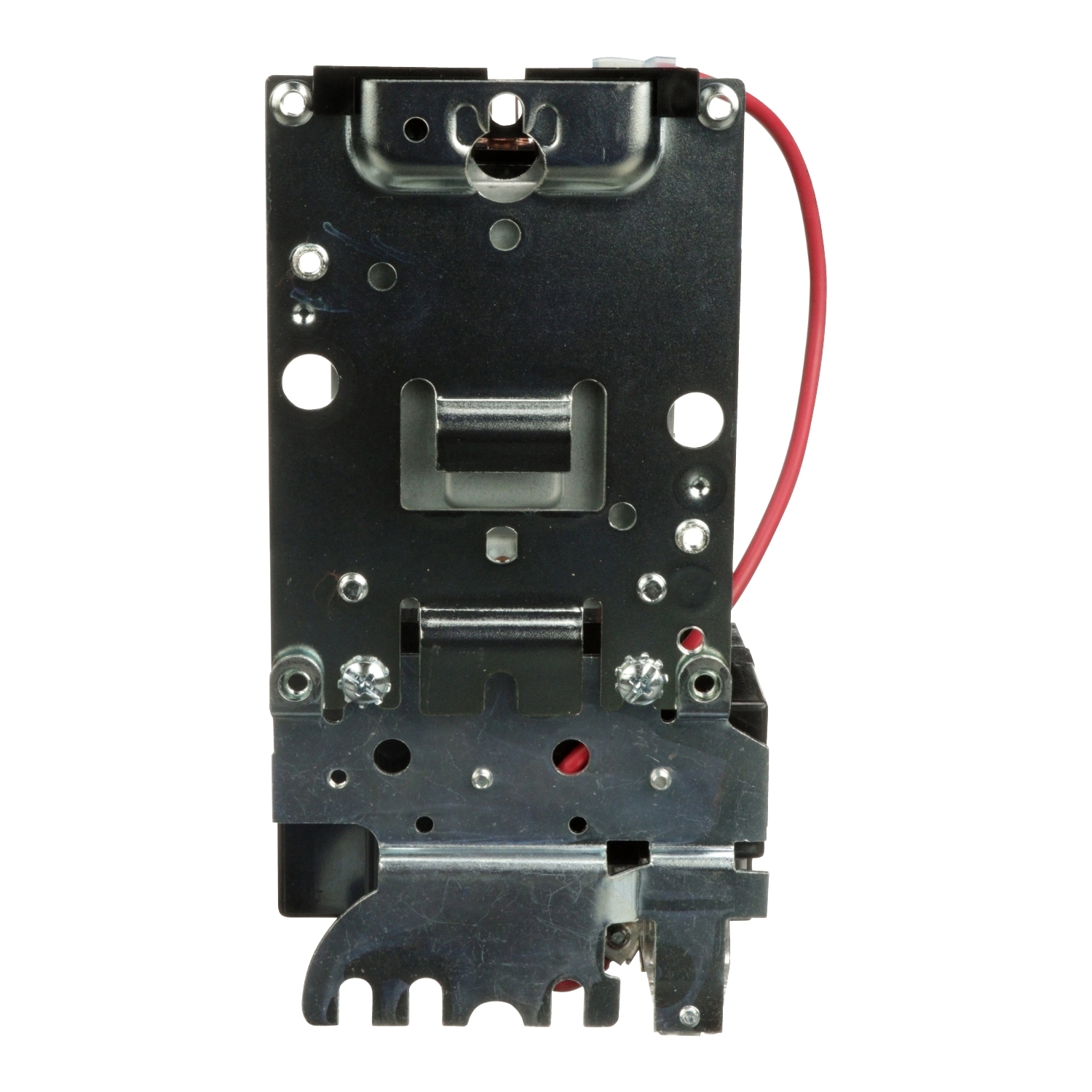

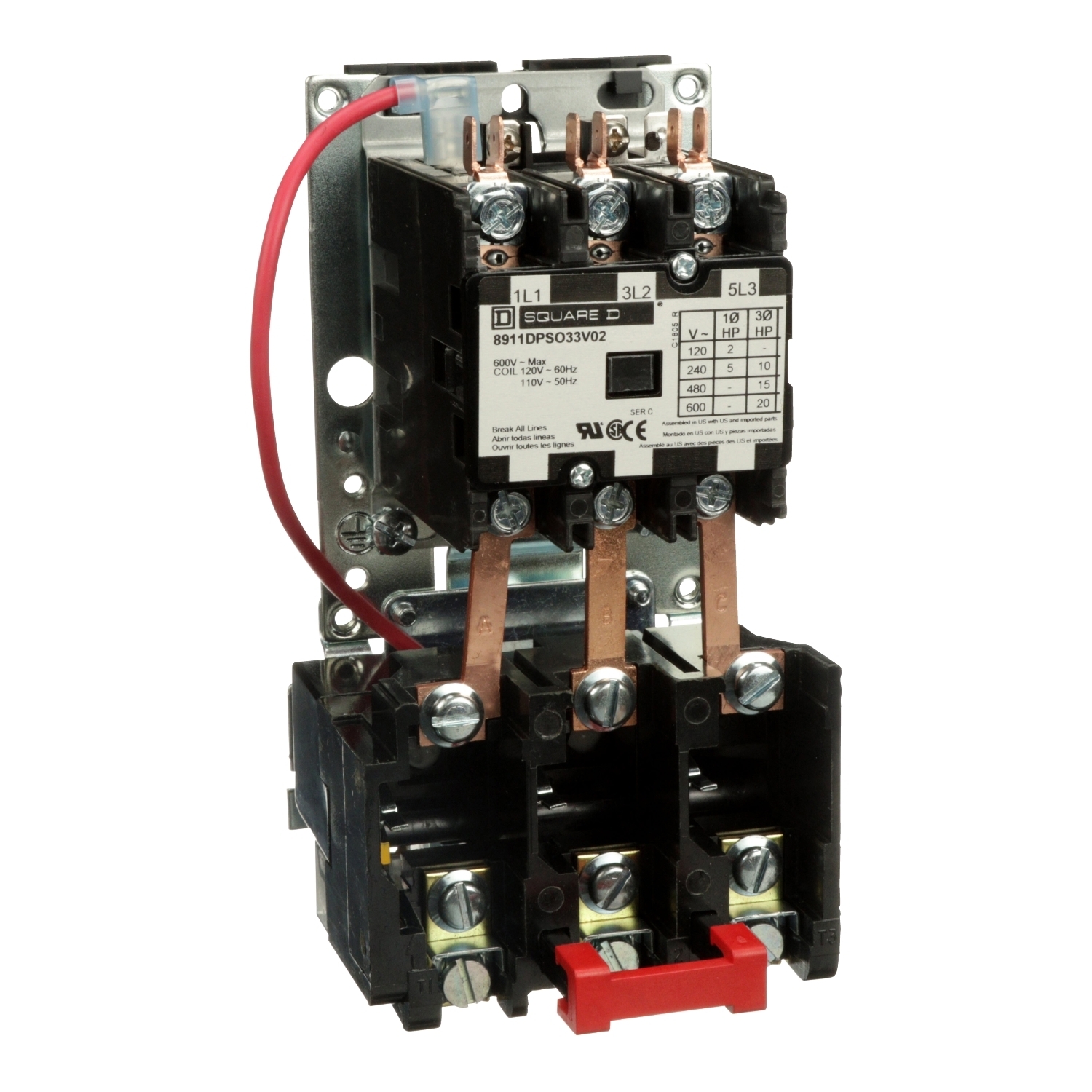

8911DPSO33V02 Type DPS Definite Purpose Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure

MFR:
Schneider Electric
MFR #:
8911DPSO33V02
UPC:
785901116738
Item #:
282950

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 30 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. It has a 10 HP at 230 VAC, 15 HP at 460 VAC and 20 HP at 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Manuals & Documentation
Catalog Number 8911DPSO33V02
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=561701&lang=en-us
UPC 785901116738
GTIN 00785901116738
