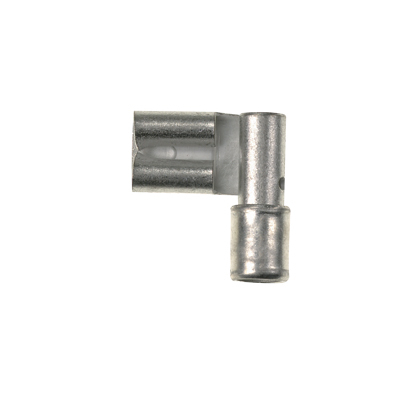

DR10-250-L Pan-Term Type DR Loose Piece Vibration-Resistant Female Disconnect, 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, Brass, Metallic, Non-Insulated
- MFR:
- Panduit
- MFR #:
- DR10-250-L
- UPC:
- 074983827367
- Item #:
- 28281
DR10-250-L Pan-Term Type DR Loose Piece Vibration-Resistant Female Disconnect, 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, Brass, Metallic, Non-Insulated
- MFR #:
- DR10-250-L
- UPC:
- 074983827367
- Item #:
- 28281
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm). It is 0.61 (15.5 mm) long and 0.3 (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 50.
Manuals & Documentation
| Catalog Number | DR10-250-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | Standard |
| Finish | Tin-Plated |
| Insulation | Non-Insulated |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983827367 |
| GTIN | 00074983827367 |
| Item Type | Disconnect |
| Temperature Rating | 302 Degrees Fahrenheit (150 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
