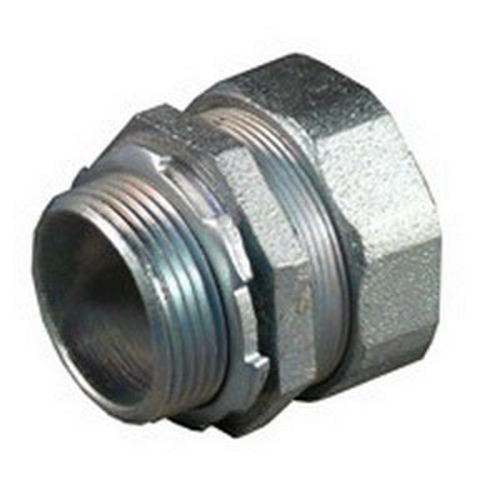

CG-1850S CG Series Strain Relief Straight Cord Connector, 1/2 in Trade, 3/16 to 5/16 in Cable Openings, Machined Steel, Natural
- MFR:
- Appleton Electric
- MFR #:
- CG-1850S
- UPC:
- 781381449281
- Item #:
- 282527
CG-1850S CG Series Strain Relief Straight Cord Connector, 1/2 in Trade, 3/16 to 5/16 in Cable Openings, Machined Steel, Natural
- MFR #:
- CG-1850S
- UPC:
- 781381449281
- Item #:
- 282527
Straight Liquidtight Strain Relief Connector, Size: 1/2 IN, Conductor Range: 3/16 - 5/16 IN, Material: Machined Steel, Color: Brown Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 0.94 IN Height, Standard: Class I, Div
Manuals & Documentation
| Catalog Number | CG-1850S |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| Color | Brown Label |
| Conductor Range | 3/16 - 5/16 IN |
| Connection | Threaded Hub |
| Material | Machined Steel |
| NEMA Rating | 3R |
| Special Features | For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Machined steel cap; Neoprene sealing grommet |
| Standard | Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178 |
| UPC | 781381449281 |
| GTIN | 00781381449281 |
| Item Type | Straight Liquidtight Strain Relief Connector |
| Size | 1/2 |
