SCHNEIDER ELECTRIC

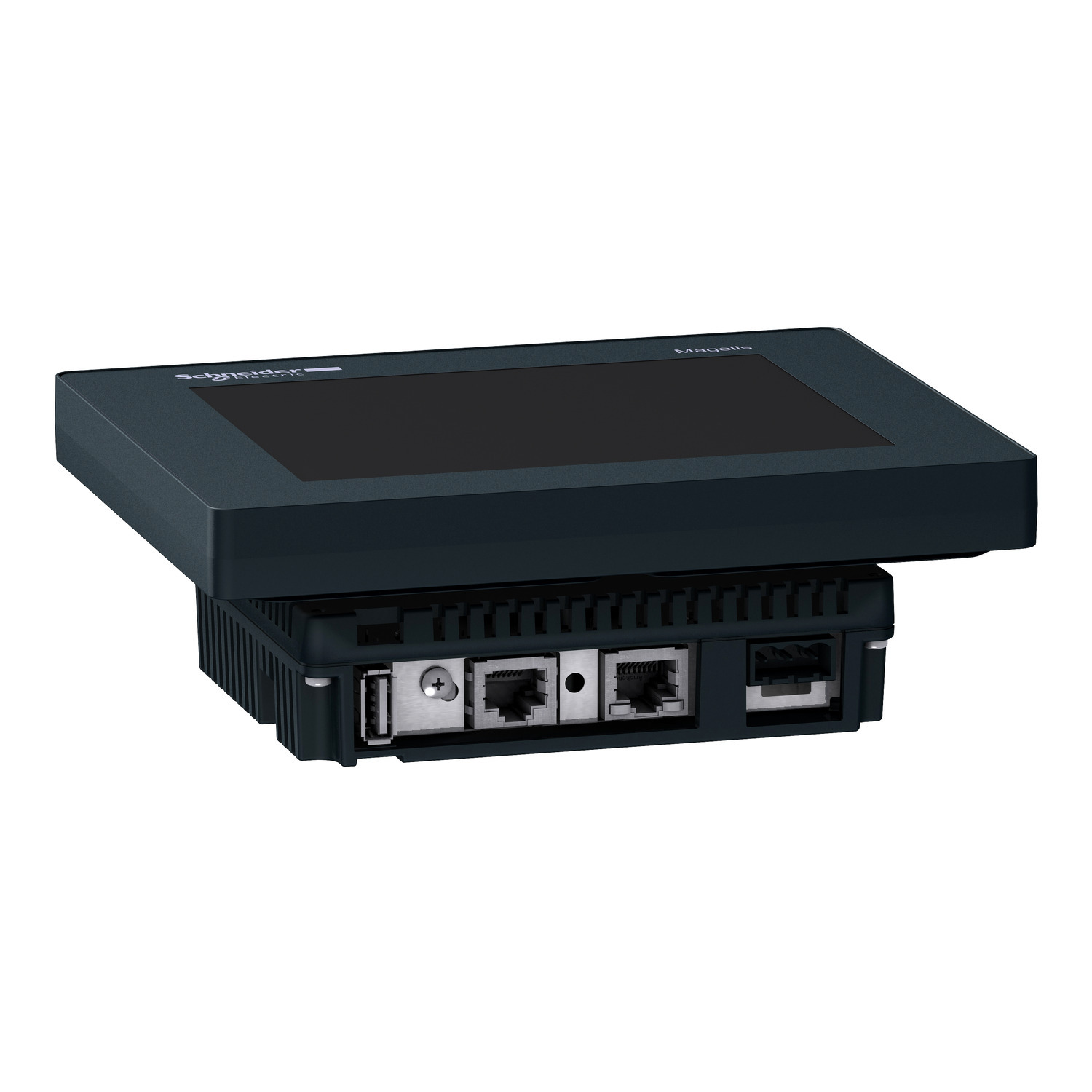

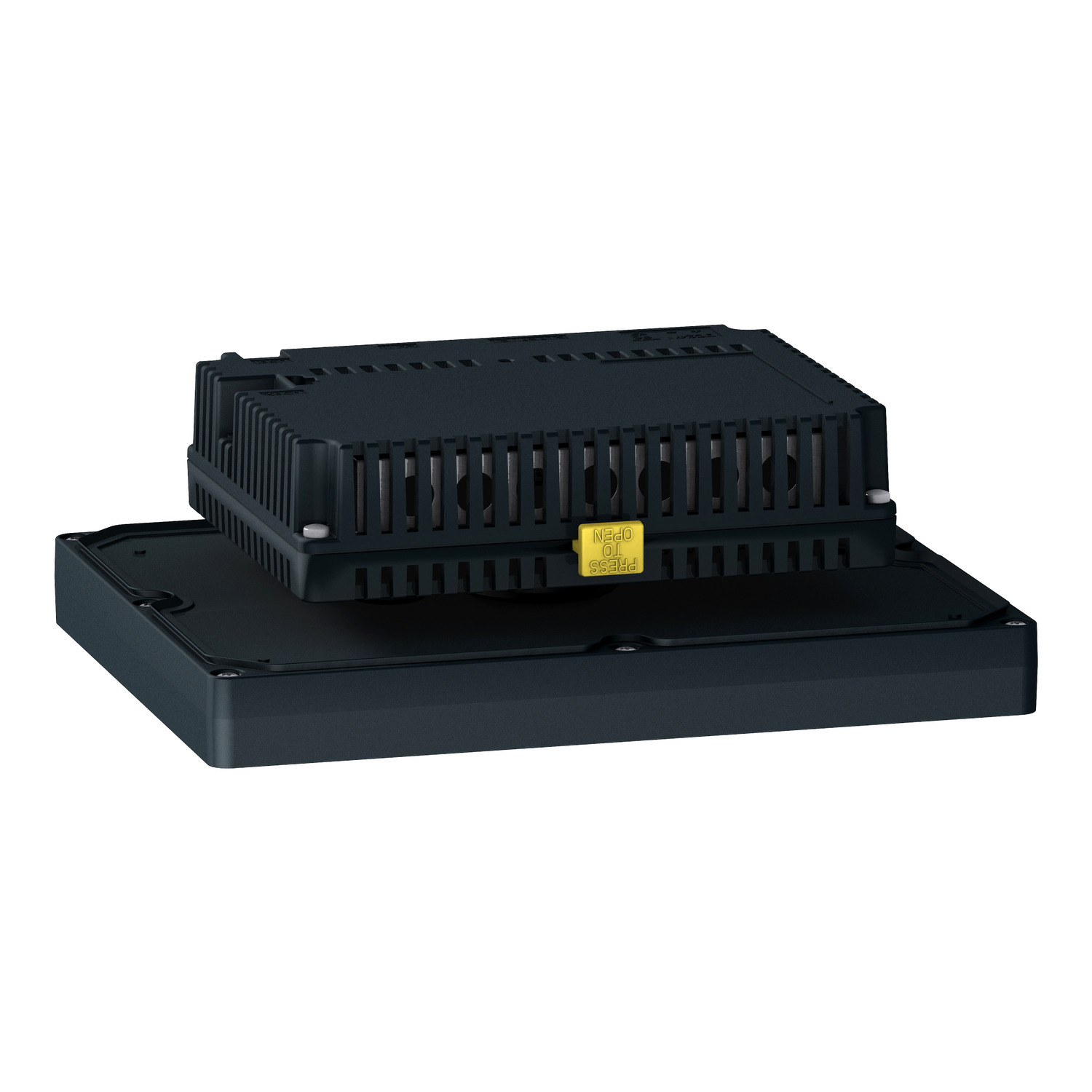

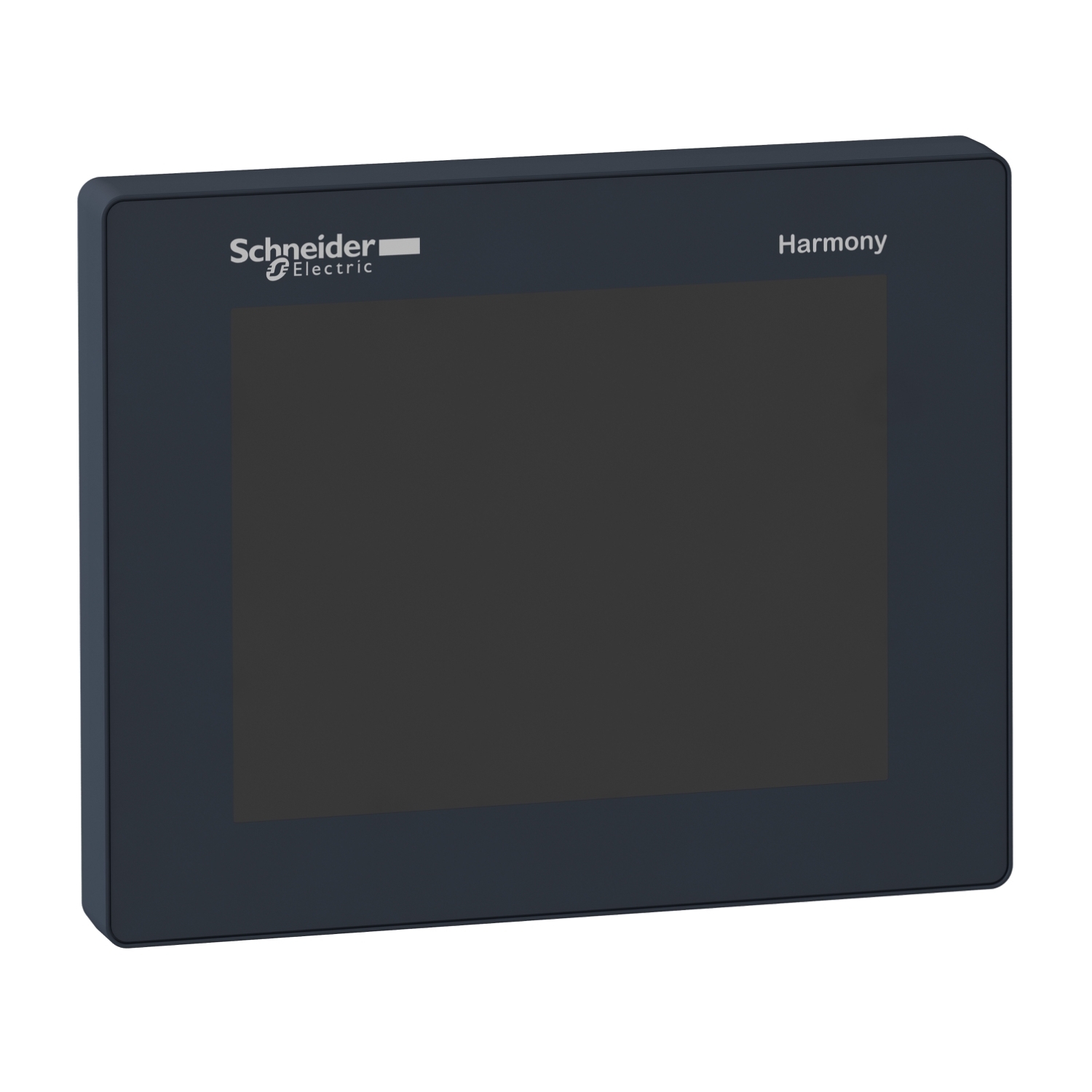

HMISCU8A5 Magelis Small Touch HMI Controller Panel, 24 V DC, 30 A, 24 W, 5.7 in Backlit LED Color TFT LCD Display, 2 USB/COM1/CANopen

MFR:
Schneider Electric
MFR #:
HMISCU8A5
Item #:
281531

This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 5.7"

Manuals & Documentation
Catalog Number HMISCU8A5
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin China
Made in USA No
Number of Pages Limited by interl memory capacity
Standard Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2;electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2;susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3;electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4;surge immunity test - test level: 2 kV (po;+/- 3.5 mm 5-9 Hz) IEC 60068-2-6;1 gn 9-150 Hz) IEC 60068-2-6;147 m/s² 11 ms on DIN rail)IEC 60068-2-27;294 m/s² 6 ms on panel mounting)IEC 60068-2-27
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403615547&lang=en-us
GTIN 03595864175577
