Appleton

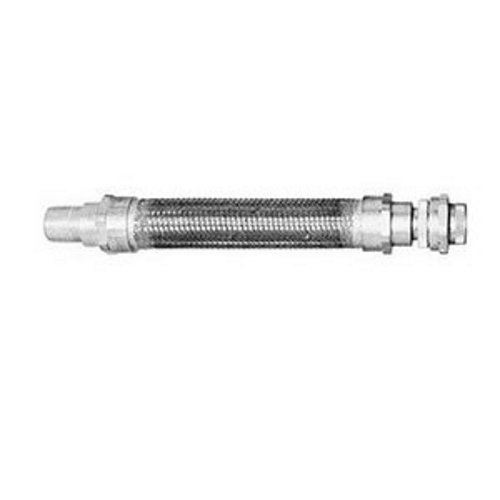

Flexible Coupling, 1 x 24 inch, Male x Union, Bronze Braid Outer/Brass Inner

MFR:
Appleton Electric
MFR #:
EXLK-324
UPC:
781381328708
Item #:
27940

UNILETS Flexible Coupling, Trade Size: 1 IN, Outside Diameter: 2.06 IN, Flex Length: 24 IN, Bending Radius: 14 IN, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type (1) Male Nipple, (1) Union, Finish: Natural, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certifed, Class I, Division 1 And 2 and Class II, Division 1 And 2, Suitable for Class I, Groups C, D, Class II, Groups E, F, G, Class III, For Use With Threaded Rigid Metal Conduit And IMC

Manuals & Documentation
Catalog Number EXLK-324
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit And IMC
Connection Female Threaded
Flexibility Rigid And IMC
Material Outer Bronze Braid And Inner Brass Core With Insulating Liner
Special Features Explosionproof, dust-ignitionproof, watertight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Heavy duty design resists mechanical abuse; Electrical conductivity equal to rigid conduit on a similar length basis no bonding jumper required; Interior insulating liner protects conductors from abrasion under vibrating conditions; Female end fitting with removable ductile iron union at one end and a female end fitting with a removable brass male nipple at the other end; Used in areas where vibration and movement is a problem, also used in place of rigid conduit in difficult-bend situations
Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified, Class I, Division 1 And 2 and Class II, Division 1 And 2, Suitable for Class I, Groups C, D; Class II, Groups E, F, G; Class III
UPC 781381328708
GTIN 00781381328708
Item Type Flexible Coupling
Length 27.38
Length UOM Inch
Outside Diameter 2.06 IN
Trade Size 1 IN
