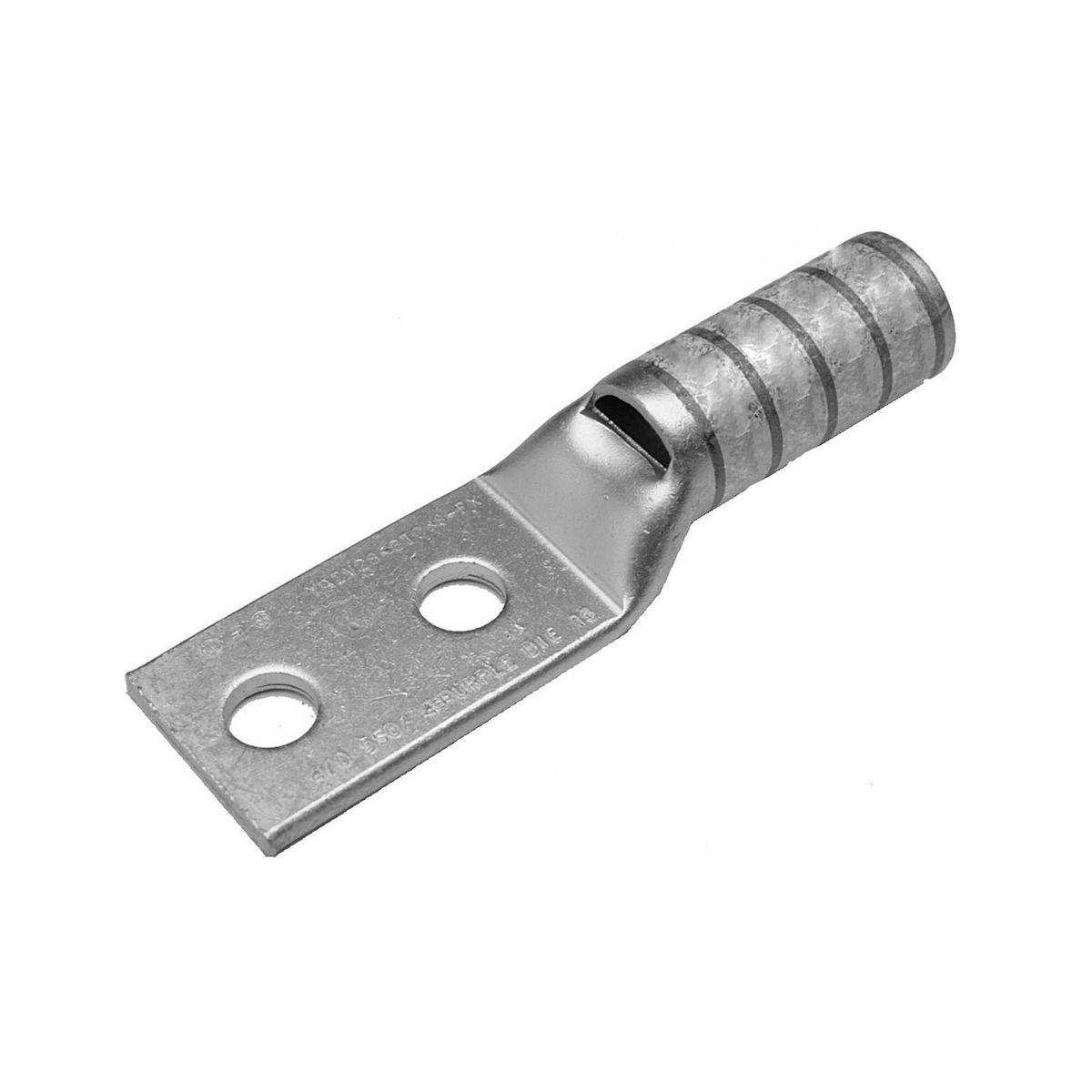

YAZ382NTCFX YAZ-FX 2-Hole Compression Lug With Inspection Window, 535.3 kcmil Flexible Copper Conductor, Die Code: L99, 1/2 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ382NTCFX
- UPC:
- 781810228678
- Item #:
- 278552
YAZ382NTCFX YAZ-FX 2-Hole Compression Lug With Inspection Window, 535.3 kcmil Flexible Copper Conductor, Die Code: L99, 1/2 in Stud, Tin Plated Copper
- MFR #:
- YAZ382NTCFX
- UPC:
- 781810228678
- Item #:
- 278552
Manuals & Documentation
| Catalog Number | YAZ382NTCFX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Wire Strip Length: 2-7/8 IN, Die Index: L99, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810228678 |
| GTIN | 00781810228678 |
| Item Type | Long Barrel, Skive |
| Voltage Rating | 35 |
| Cross Reference Products | CLWN-700-12-134 |
