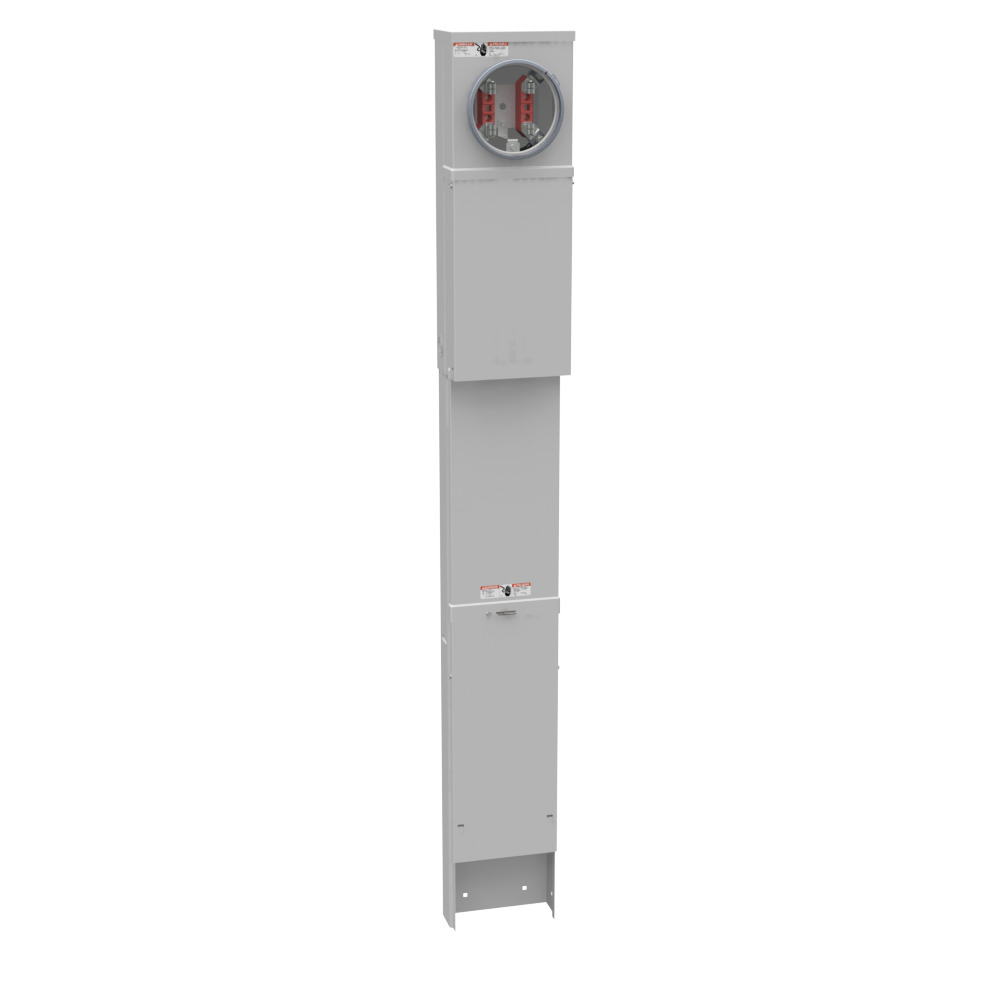

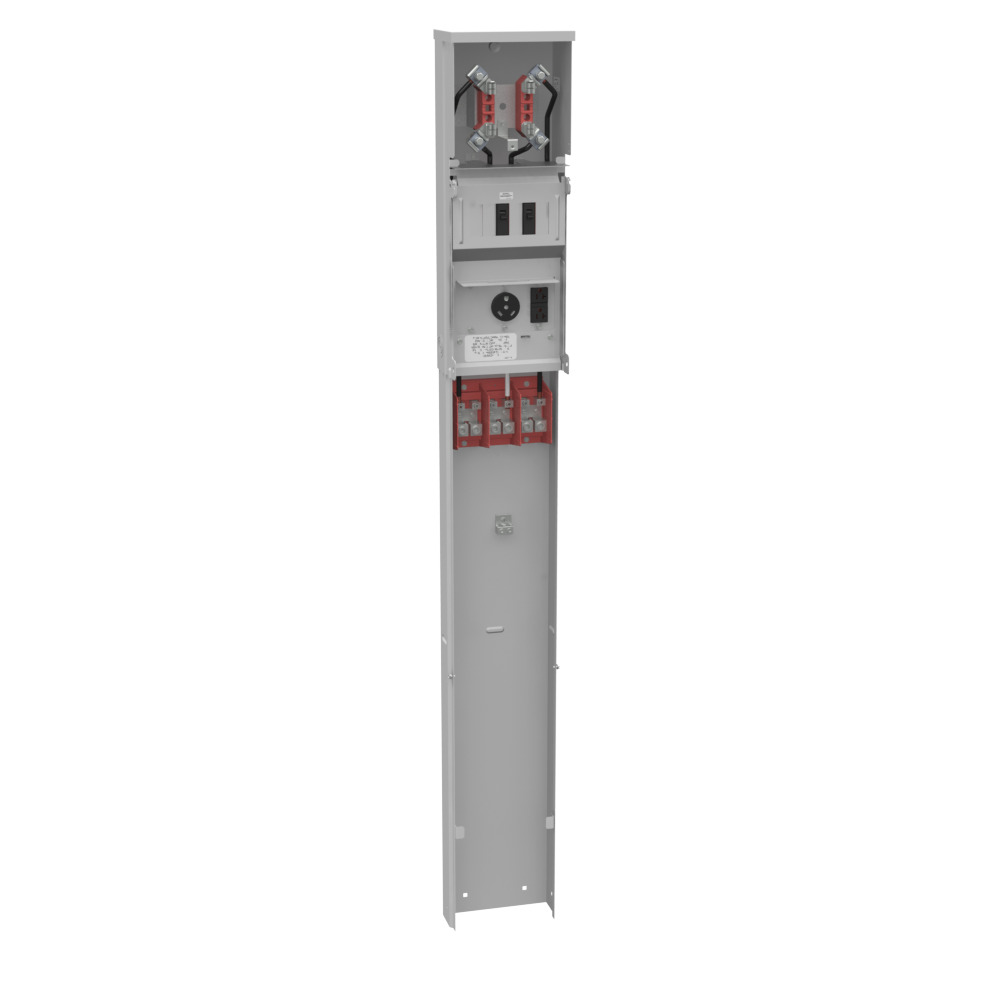

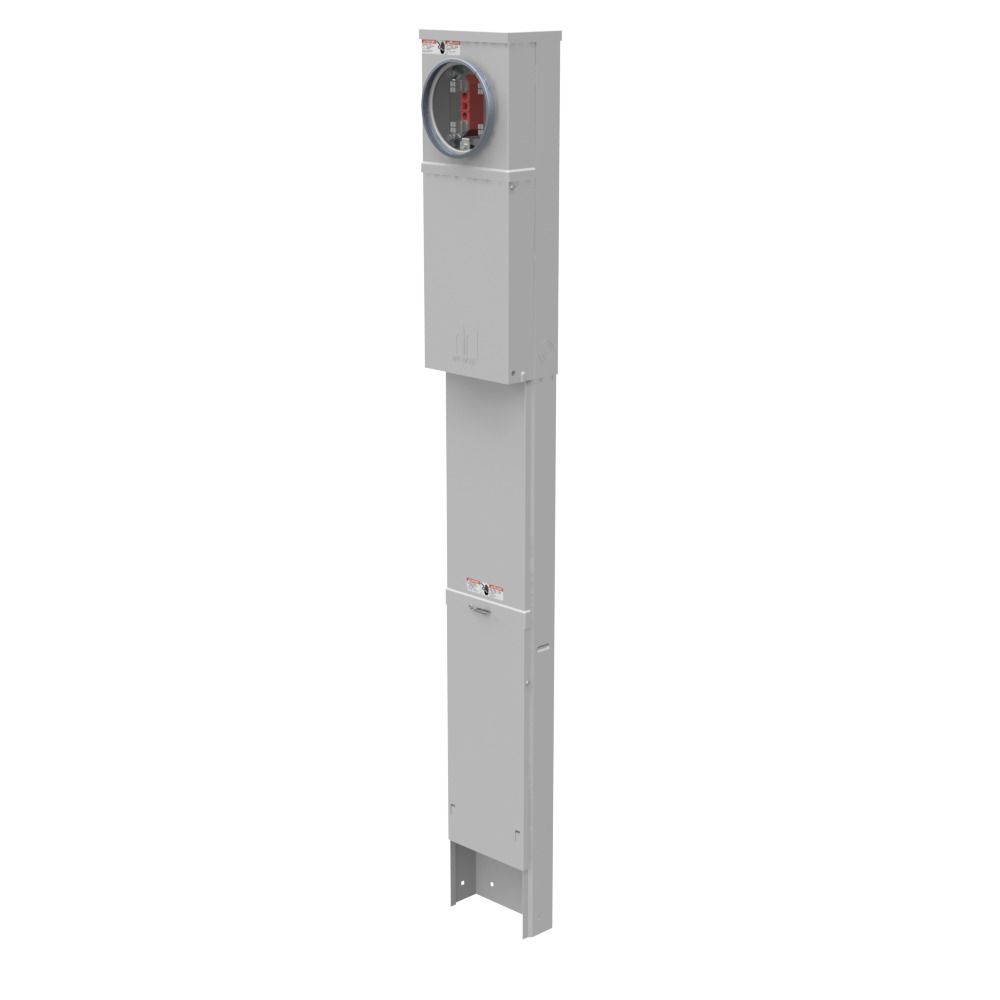

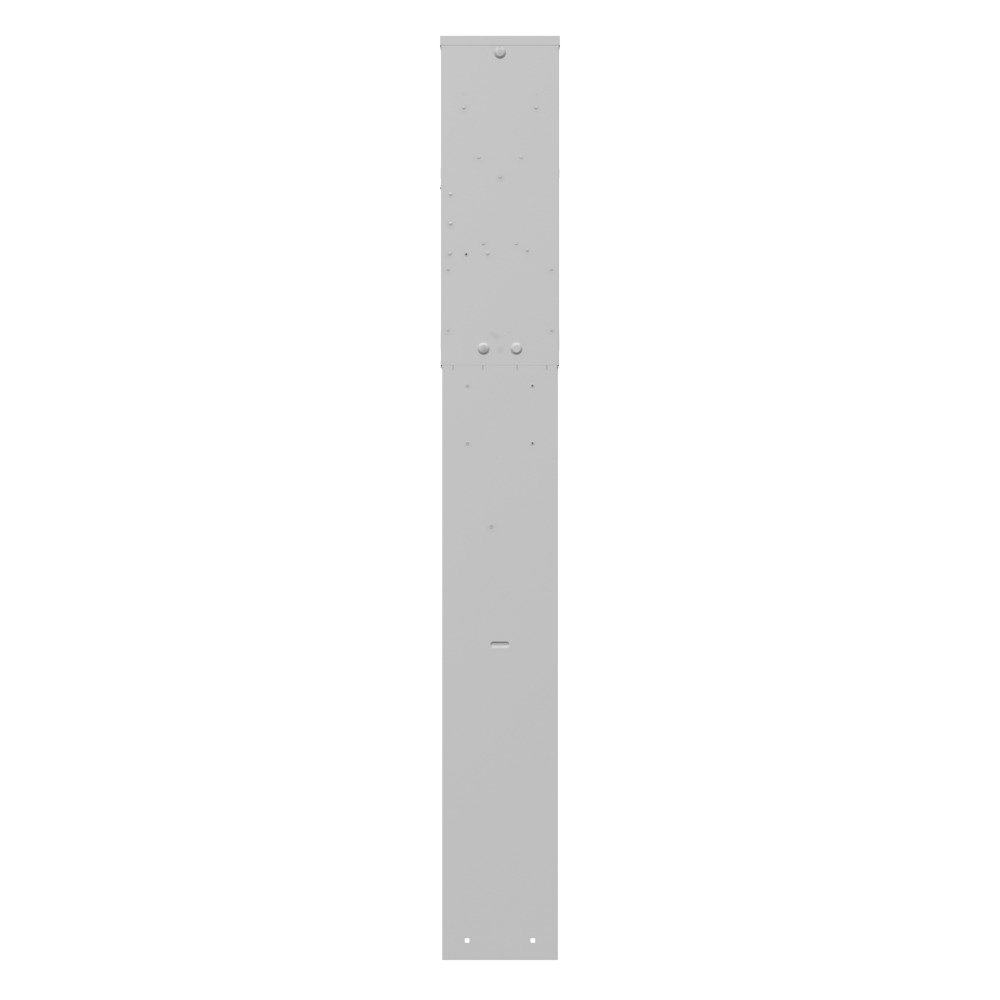

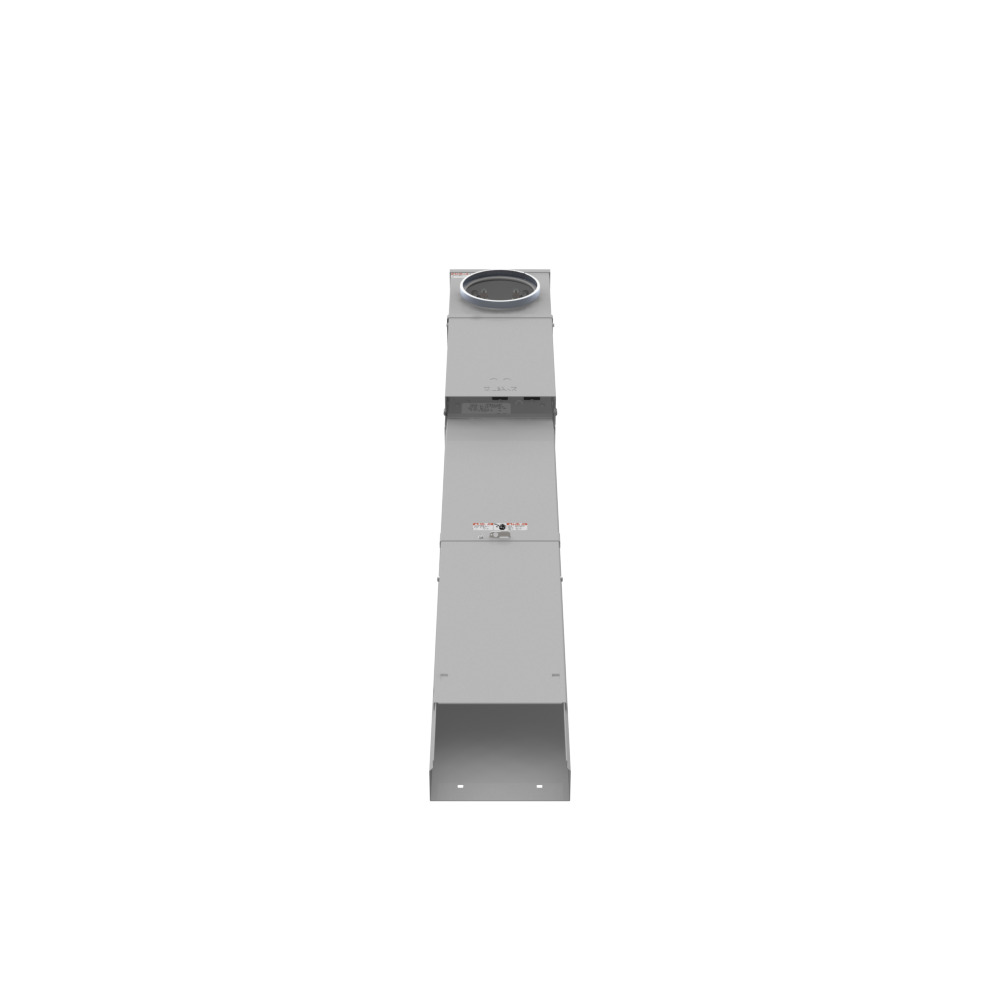

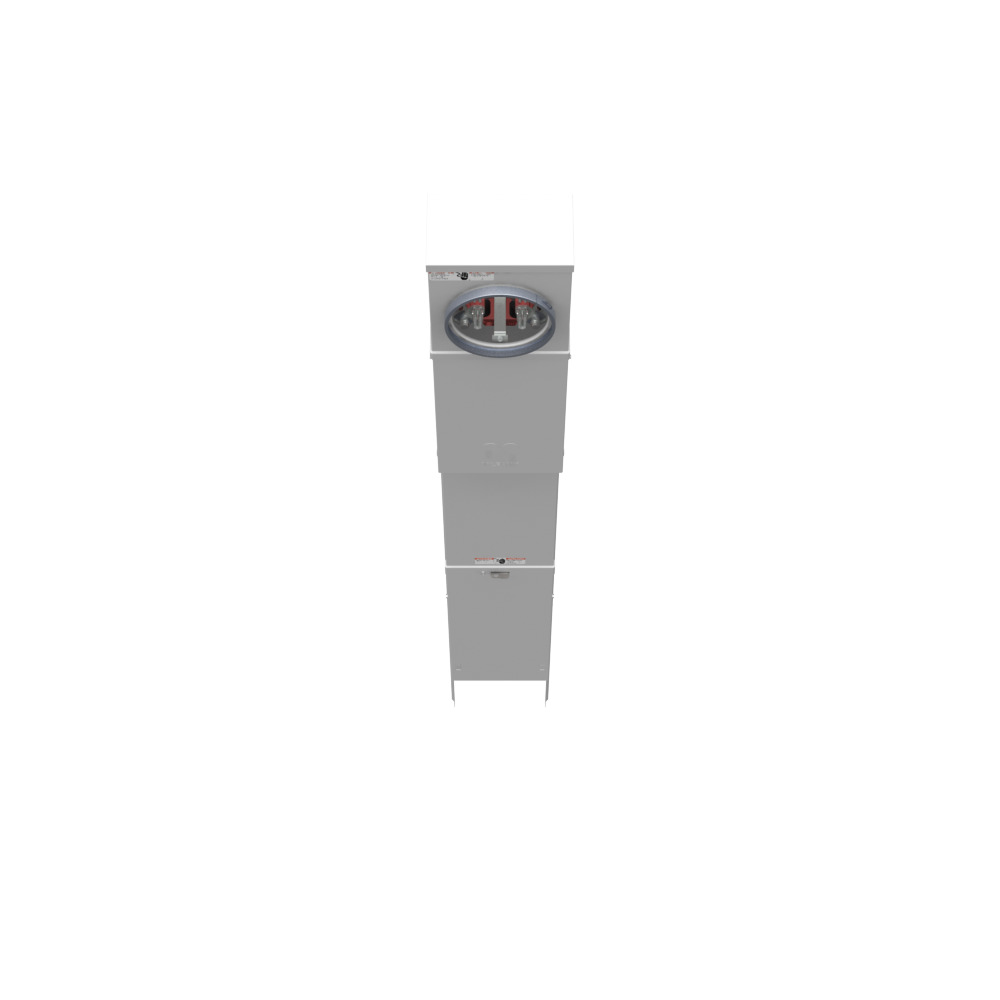

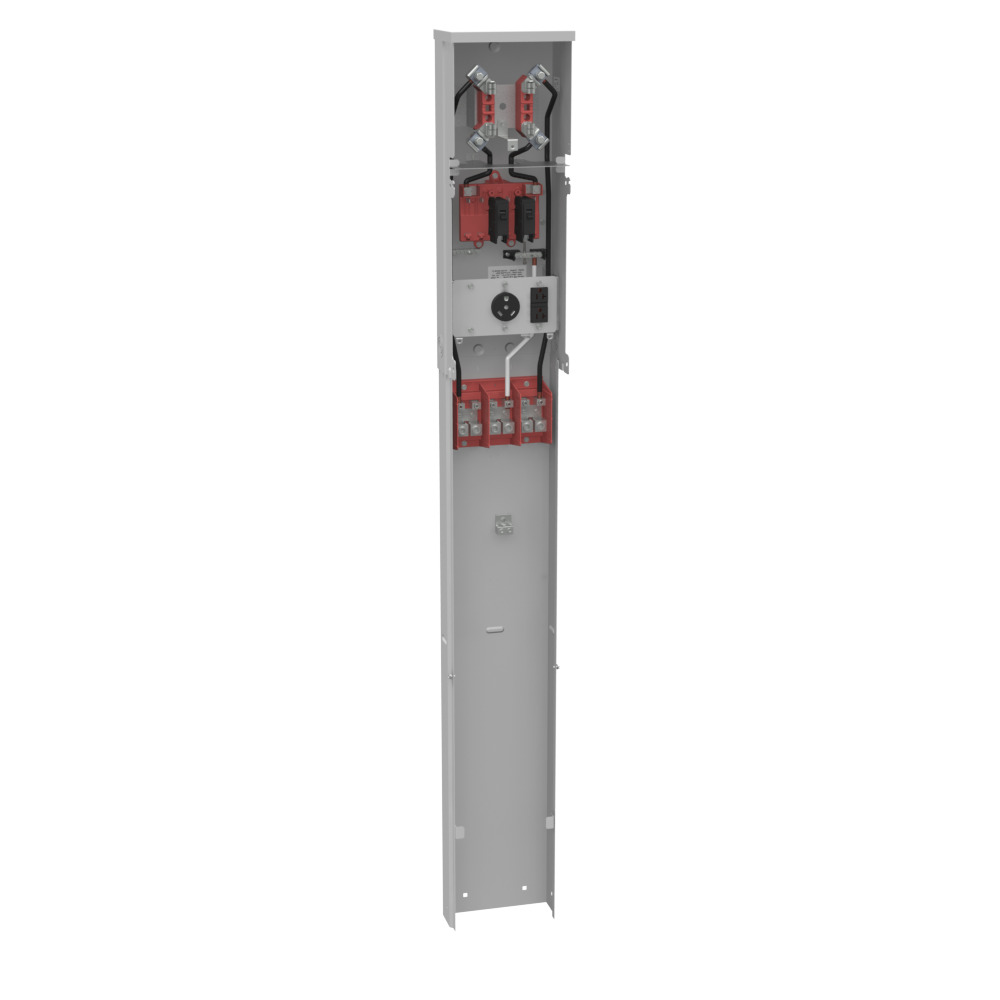

4 TERM RNGTP PLAIN TOP TT30 520GR SGL PED DIR BURY
Manuals & Documentation
| Catalog Number | U5300-O-41 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 125 |
| Application | RV Power |
| Bypass Type | No Bypass |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | One Single Pole 20 Ampere Breaker and One Single Pole 30 Ampere Breaker |
| Standard | UL Listed;Type 3R |
| UPC | 784572258426 |
| GTIN | 00784572258426 |
| Item Type | Ring Type Meter Socket |
| Length | 5.313 |
| Length UOM | Inch |
| Width | 8.688 |
| Width UOM | Inch |
| Height | 70.25 |
| Height UOM | Inch |
| Size | 5.313L x 8.688W x 70.25H |
| Terminals | Double Mechanical |
| Voltage Rating | Up to 240 Volts Alternating Current |
