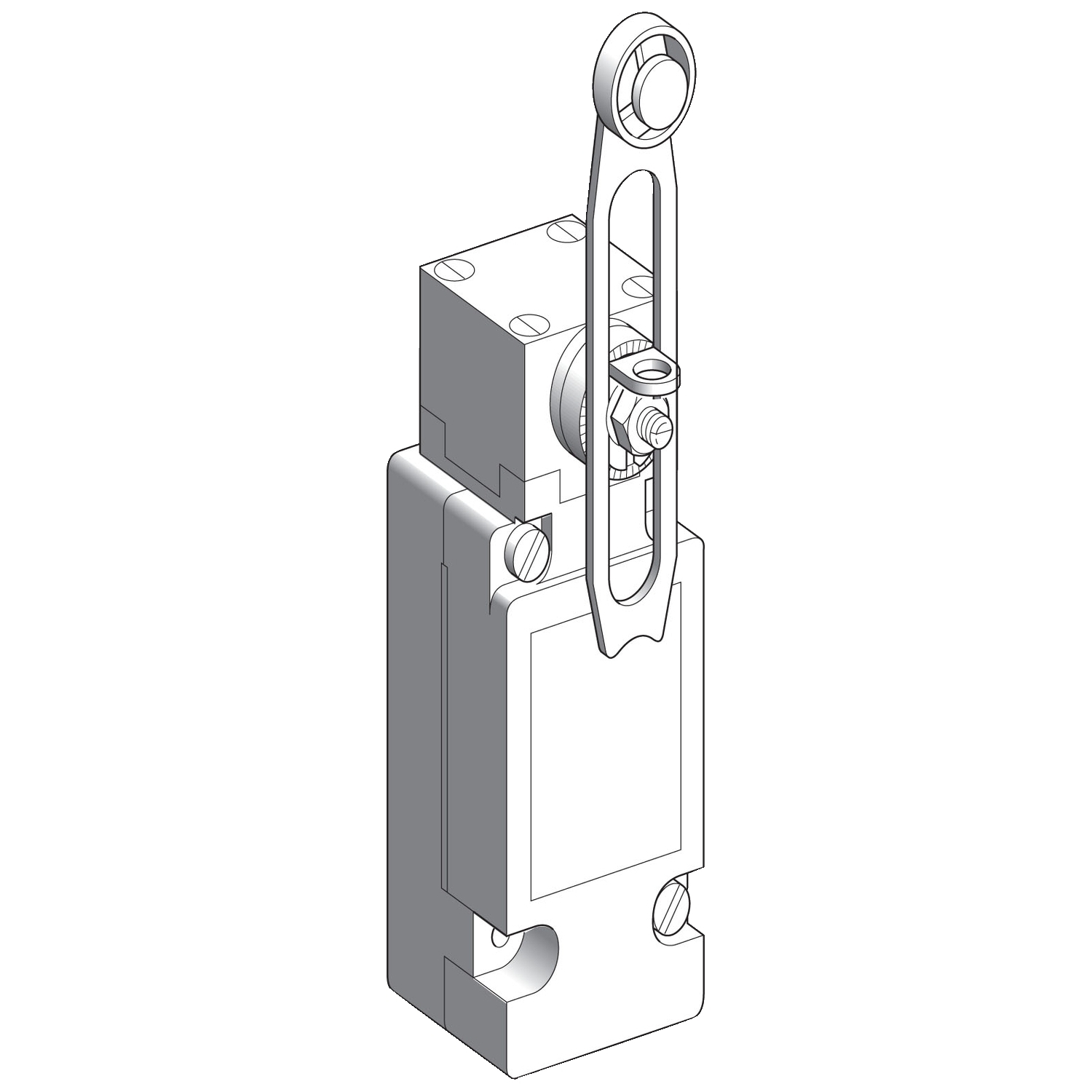

XCKJ110541 OsiSense Heavy Duty Limit Switch, 240 V AC/250 V DC, 10 A, Spring Return Roller Lever Arm Actuator, 1CO Contact, 1 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKJ110541
- UPC:
- 785901093718
- Item #:
- 277942
XCKJ110541 OsiSense Heavy Duty Limit Switch, 240 V AC/250 V DC, 10 A, Spring Return Roller Lever Arm Actuator, 1CO Contact, 1 Poles
- MFR #:
- XCKJ110541
- UPC:
- 785901093718
- Item #:
- 277942
limit switch XCKJ - th.plastic roller lever var. length - 1C/O - snap - Pg13
Manuals & Documentation
| Catalog Number | XCKJ110541 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Lateral approach, 1 or 2 programmable direction;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller lever thermoplastic variable length |
| Amperage Rating | 10 |
| Application | INDUSTRIAL |
| Connection | Screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
| Contact Configuration | 1 C/O |
| Enclosure | NEMA 1/2/4/12 IP 66 |
| Mounting | By The Body |
| Number of Poles | 1 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | METAL,PLUG-IN BODY |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL-CCC,IEC 60204-1-CENELEC EN 50041-EN 60947-5-1-CSA C22.2 NO 14-IEC 60947-5-1-UL 508-EN 60204-1,IK07 EN 50102,IP66 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856190&lang=en-us |
| UPC | 785901093718 |
| GTIN | 03389110645910 |
| Item Type | Limit switch |
| Size | 1.42 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
