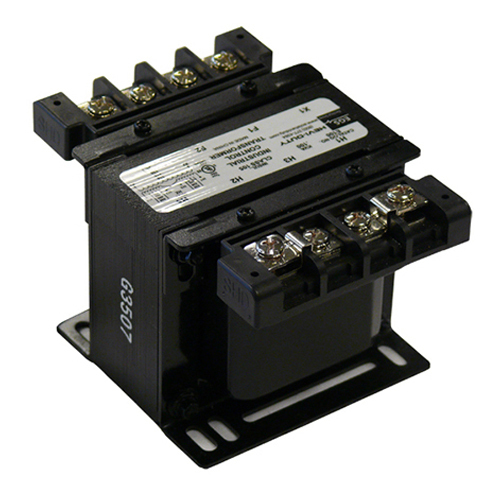

E500JN SBE Encapsulated Control Transformer, 208/240/480/600 V AC Primary, 24/120 VAC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- SolaHD
- MFR #:
- E500JN
- UPC:
- 783472531707
- Item #:
- 277655
E500JN SBE Encapsulated Control Transformer, 208/240/480/600 V AC Primary, 24/120 VAC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- E500JN
- UPC:
- 783472531707
- Item #:
- 277655
Manuals & Documentation
| Catalog Number | E500JN |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Industrial |
| Frequency Rating | 60 |
| Mounting | Mounting Plate |
| Phase | 1 |
| Primary Voltage | 208/240/480/600 Volt Primary |
| Secondary Voltage | 120/24 Volt Secondary |
| Special Features | 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Will only accept one FB2 secondary fuse holder. |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| UPC | 783472531707 |
| GTIN | 00783472531707 |
| Item Type | SBE Encapsulated Series Transformers |
| Length | 5.07 |
| Width | 5.25 |
| Height | 4.53 |
| Wattage | 250 |
