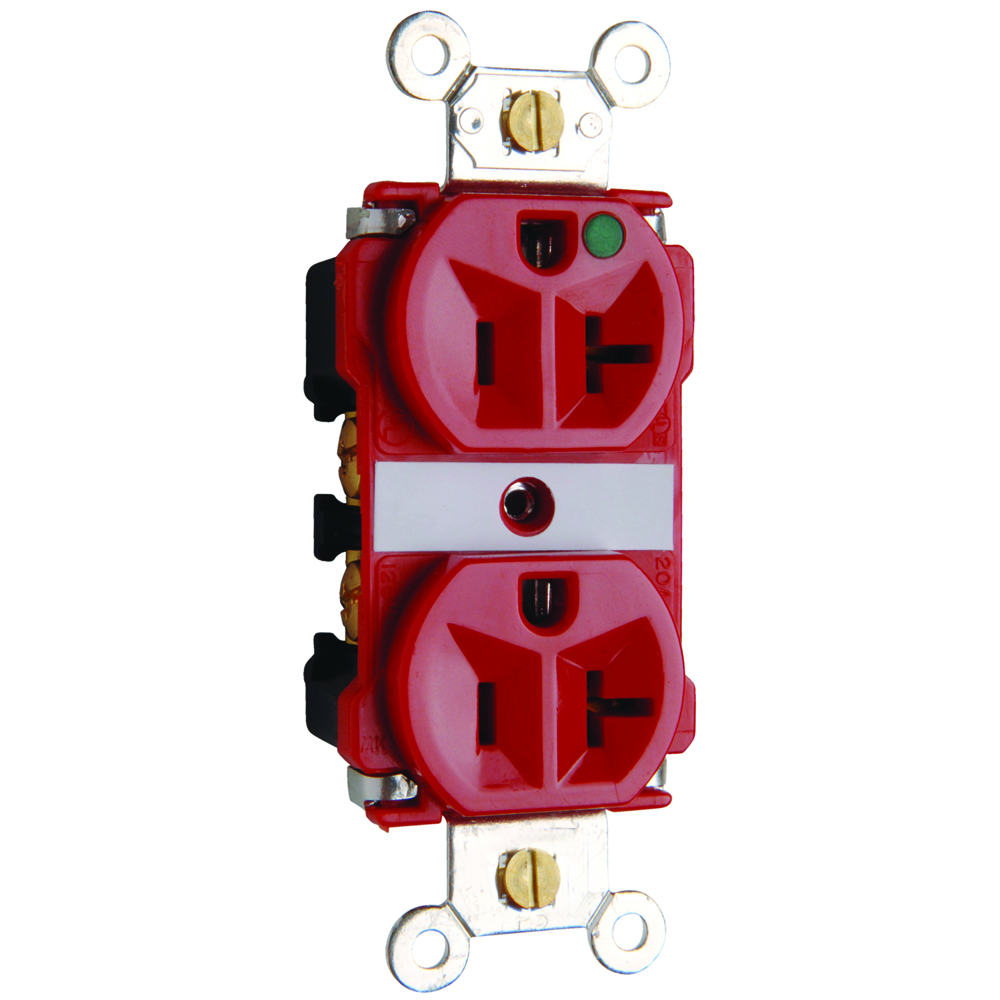

Extra Heavy-Duty MRI Duplex Receptacle Back and Side-Wire 20A 125V

Catalog Number 8300REDMRI
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Commercial
Color Red
Connection Back and side wire
Material Nylon
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Designed expressly for MRI applications. Exclusive patented feature, circuit label on face allows permanent circuit identification. Extra heavy-duty one-piece nickel-plated brass mounting strap with integral ground for superior structural integrity and long-term performance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Auto-ground clip assures positive ground.
Standard UL498, CSA C22.2 No. 42
UPC 785007269222
GTIN 00785007269222
Item Type Hospital Grade MRI Receptacle, Extra Heavy-Duty
Size 1.625 L x .900 W x 3.281 H
Environmental Conditions Flammability: UL94 V2
Temperature Rating -40° - 60° C
Voltage Rating 125
Wire Size 14 - 10 AWG
