SQUARE D

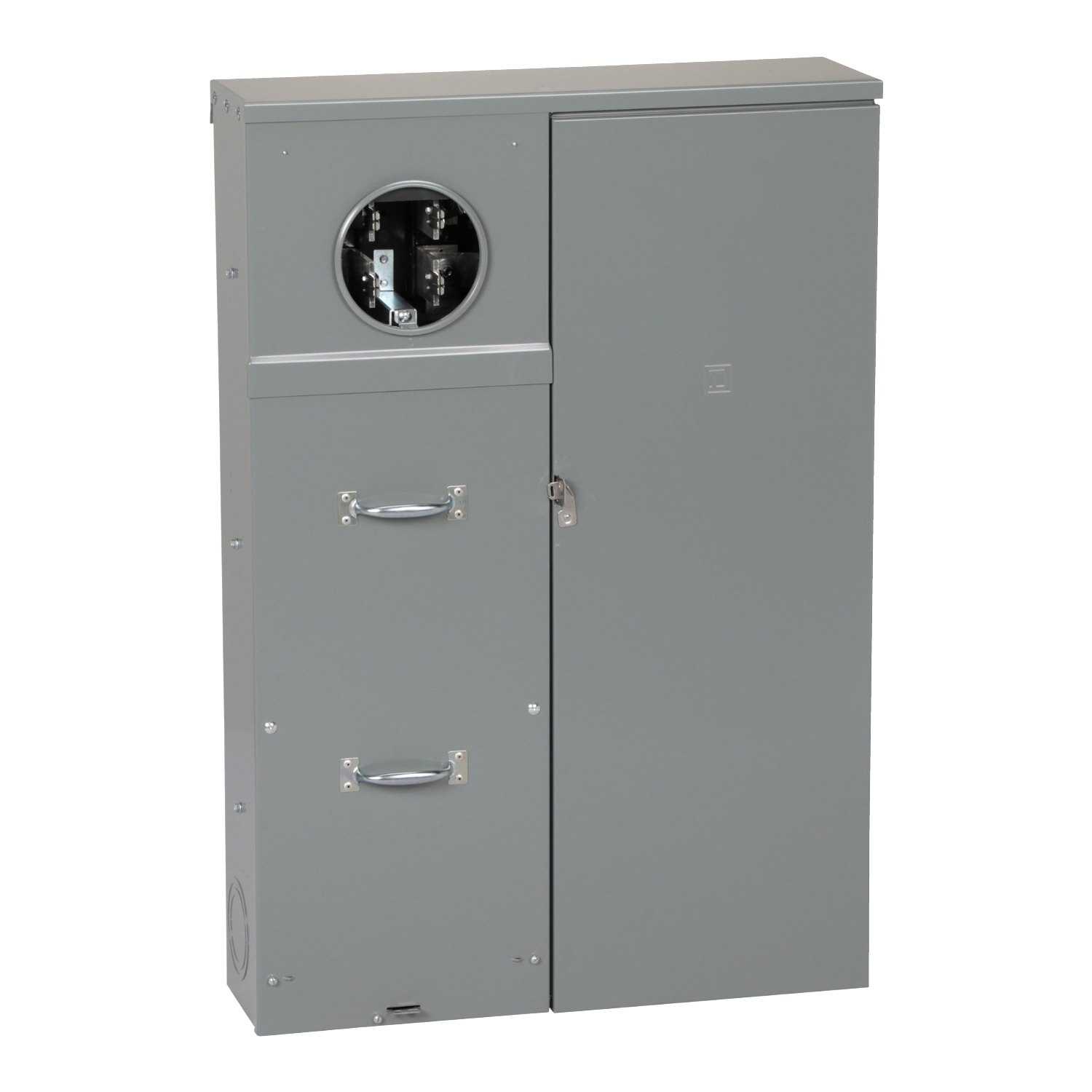

CU12L400CN QO Meter Main, CSED, 400 Amp, 1 Phase, Ringed, No Bypass, UG, Surface, Class 320

MFR:
Schneider Electric
MFR #:
CU12L400CN
UPC:
785901928195
Item #:
27526

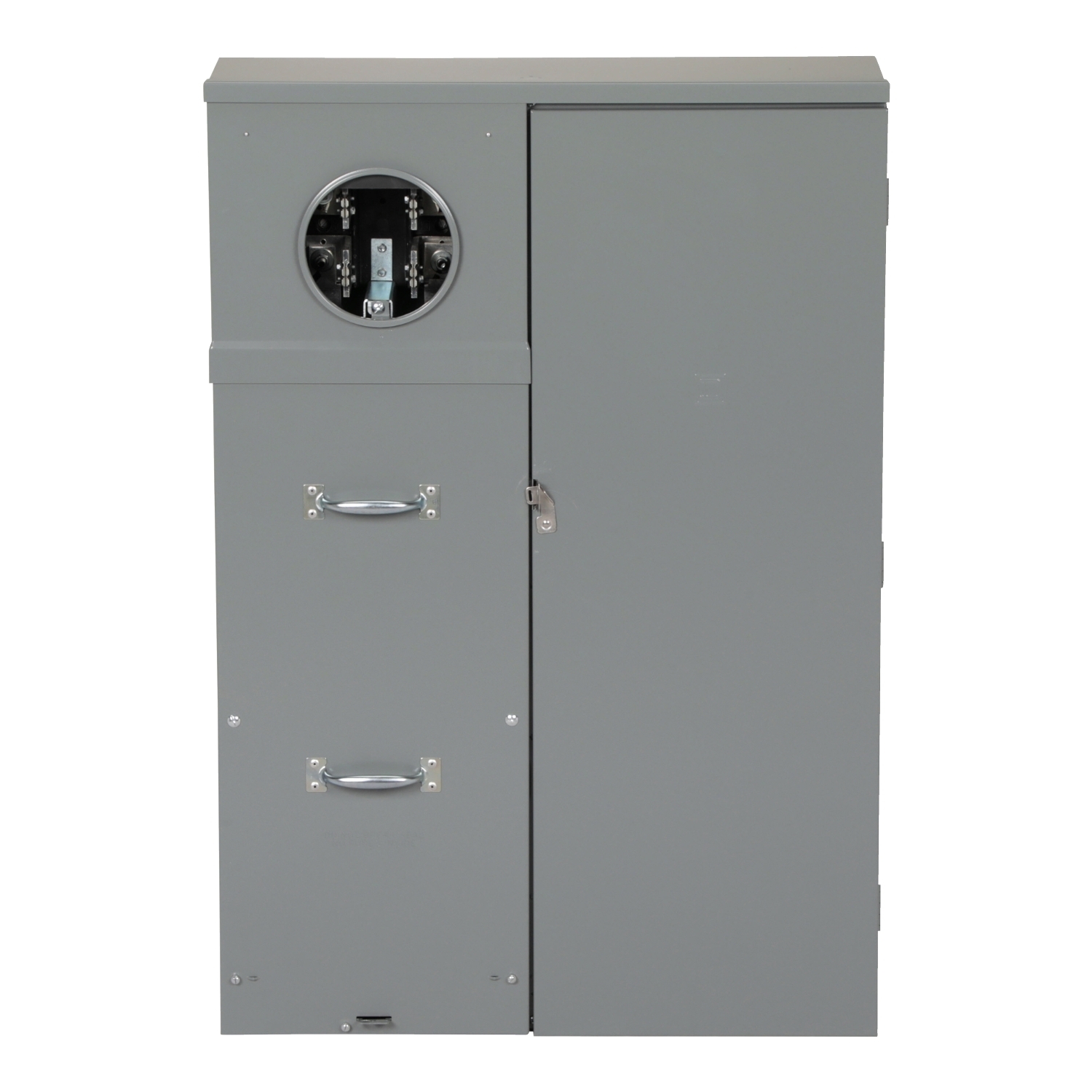

Square D Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with no bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. This unit is supplied with factory installed QDL22200 main breaker. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.

Manuals & Documentation
Catalog Number CU12L400CN
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Bypass Type No Bypass
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357233&lang=en-us
UPC 785901928195
GTIN 00785901928195
Width 28.25
Width UOM Inch
Height 43.0
Height UOM Inch
Depth 7.87 IN
