SQUARE D

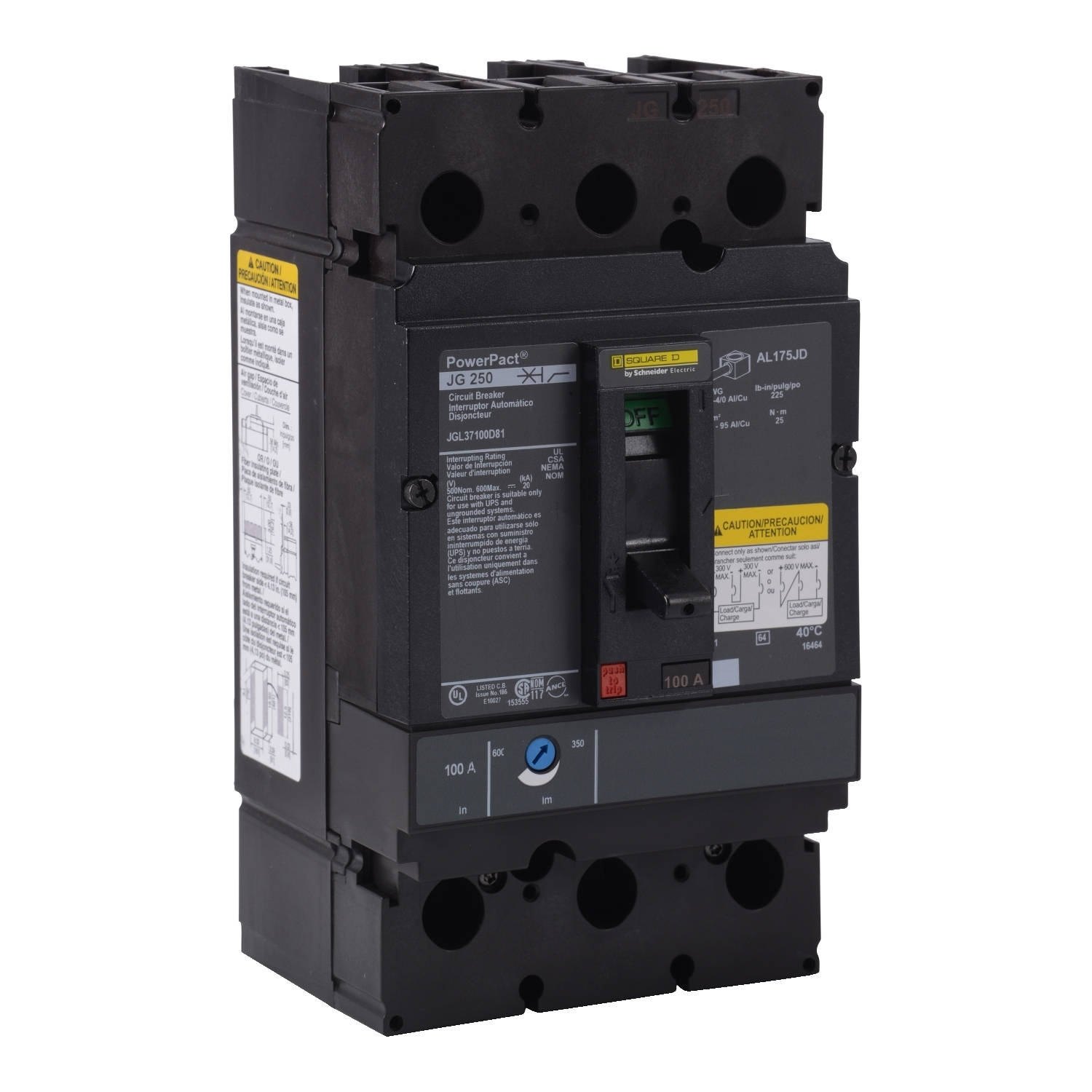

JGL37125D81 PowerPact Type JGL Molded Case Circuit Breaker, 500 V DC, 125 A, 20 kA Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
JGL37125D81
UPC:
785901631798
Item #:
274663

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 20kA at 500VDC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 125A, 3 pole, circuit breaker has a breaking capacity of 20kA at 500VDC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number JGL37125D81
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application Distribution
Connection Lugs, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals
Control Toggle
Number of Poles 3
Special Features Modbus;Ethernet
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10111885&lang=en-us
UPC 785901631798
GTIN 00785901631798
Item Type Circuit breaker
Trip Type Thermal-magnetic
