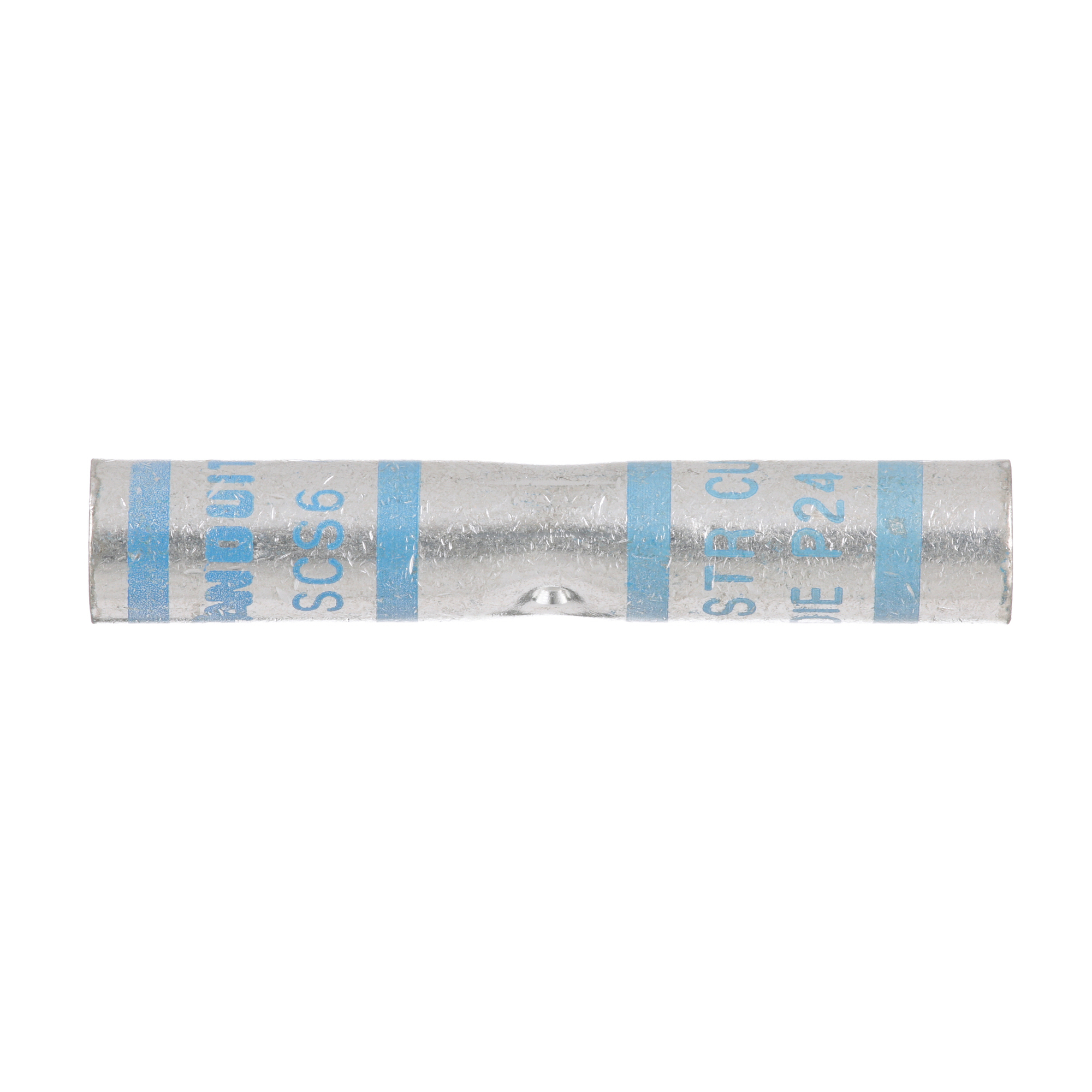

SCS6-L Pan-Lug Color Coded Compression Butt Splice Connector, 6 AWG Conductor, 1-3/4 in L, Standard Barrel, Copper, Blue
- MFR:
- Panduit
- MFR #:
- SCS6-L
- UPC:
- 074983903054
- Item #:
- 274046
SCS6-L Pan-Lug Color Coded Compression Butt Splice Connector, 6 AWG Conductor, 1-3/4 in L, Standard Barrel, Copper, Blue
- MFR #:
- SCS6-L
- UPC:
- 074983903054
- Item #:
- 274046
The SCS6-L Copper Compression Lug, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Manuals & Documentation
| Catalog Number | SCS6-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Finish | Tin-Plated |
| Material | Copper |
| Standard | Yes |
| UPC | 074983903054 |
| GTIN | 00074983903054 |
| Item Type | Compression Splice |
| Size | 6 - 6 |
