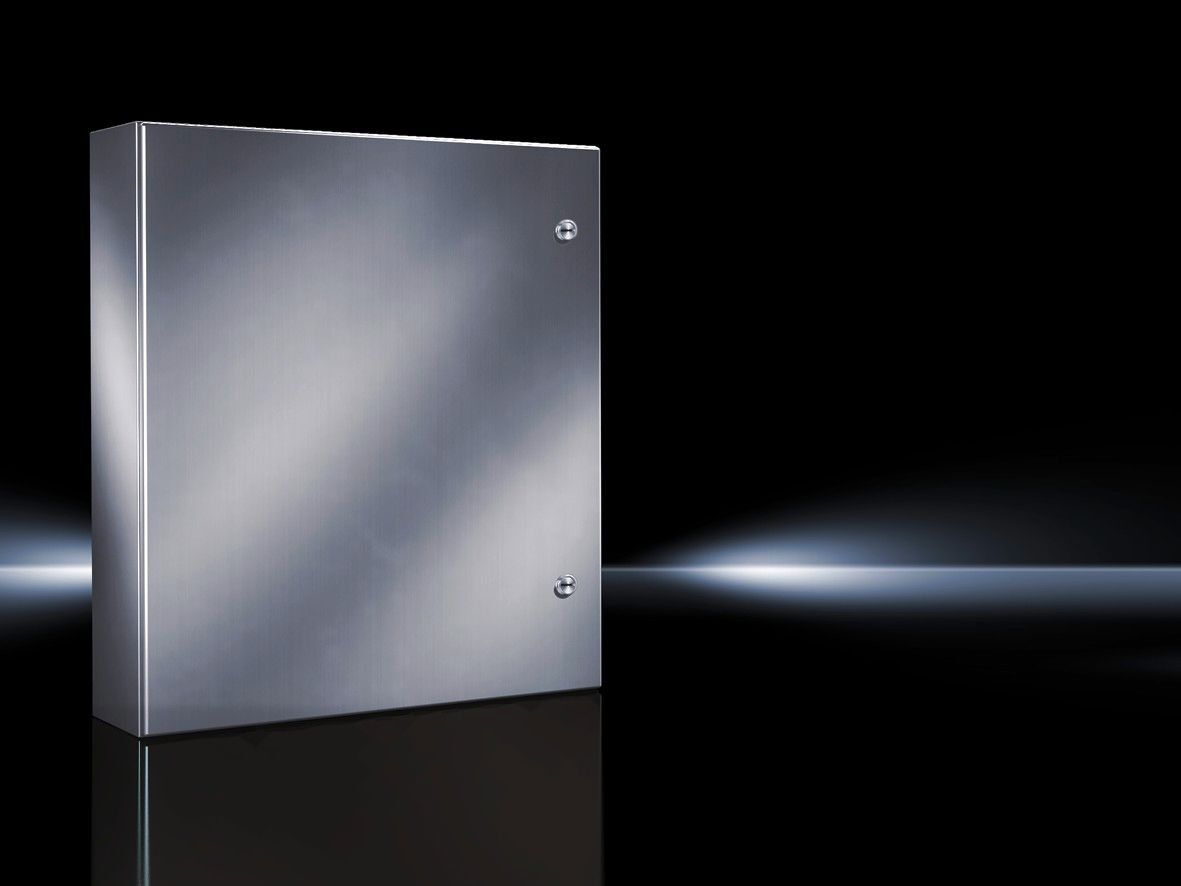

8018474 WM Series Compact Non-Disconnect Enclosure, 24 in W x 12 in D, NEMA 1/12/3R/4X/IP66 NEMA Rating, 304 Stainless Steel
- MFR:
- Rittal
- MFR #:
- 8018474
- UPC:
- 639889834965
- Item #:
- 273998
8018474 WM Series Compact Non-Disconnect Enclosure, 24 in W x 12 in D, NEMA 1/12/3R/4X/IP66 NEMA Rating, 304 Stainless Steel
- MFR #:
- 8018474
- UPC:
- 639889834965
- Item #:
- 273998
Compact enclosures WM 304 stainless steel
Manuals & Documentation
Features
- Size: 24 Inch Width x 12 Inch Depth x 24 Inch Height
- One-piece welded cold-rolled steel body
- Double door and disconnect enclosures have a 3-point latching L-handle
- Wallmounting holes (carbon steel versions) and blind riv-nuts (stainless steel versions)
- Slope top enclosures have a 20 deg sloped roof that overhangs the door
- Single door enclosures less than 20 Inch in height have one 1/4 turn latch with screwdriver insert
- Single door enclosures greater than or equal to 42 Inch in height have a 3-point latching L-handle
| Catalog Number | 8018474 |
| Manufacturer | Rittal |
| Brand | Rittal |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Industrial |
| Construction | One Piece Construction |
| Insulation | Foamed-in PU Seal |
| Material | Stainless Steel |
| Mounting | Wall |
| NEMA Rating | 4X |
| Standard | UL Listed, cUL Listed |
| RoHS Indicator | Yes |
| UPC | 639889834965 |
| GTIN | 00639889834965 |
| Item Type | Compact Enclosure |
| Length | 24.0000 |
| Length UOM | Inch |
| Width | 12.6300 |
| Width UOM | Inch |
| Height | 23.8100 |
| Height UOM | Inch |
| Weight | 46.001 |
| Weight UOM | Pounds |
| Size | 24 (H) x 24 (W) x 12 (D) |
