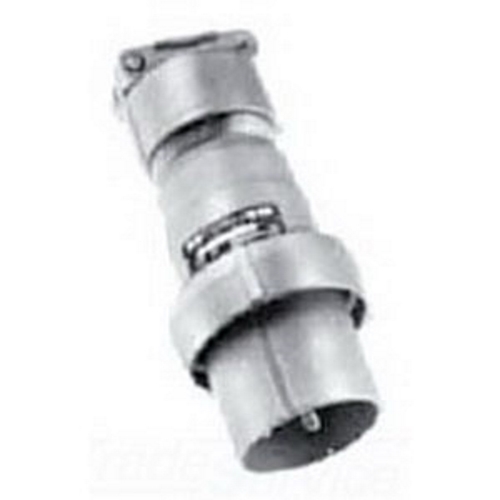

4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600 Volt AC/ 250 Volt DC
- MFR:
- Appleton Electric
- MFR #:
- AEP10463
- UPC:
- 781381137003
- Item #:
- 273682
4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600 Volt AC/ 250 Volt DC
- MFR #:
- AEP10463
- UPC:
- 781381137003
- Item #:
- 273682
AE Series Grounding Style 2 Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 3 - 1 AWG, Amperage Rating: 100 AMP, Voltage Rating: 600 VAC, 250 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Connection: Pressure Wire Terminal, Finish: Epoxy Powder Coat, Plug Cable Diameter: 7/8 IN, 1-7/16 - 1-3/4 IN, Standard: UL 1682, UL 1686, For AE1042, AE1048 Receptacles And APR10463 Connector Body
Manuals & Documentation
Features
- Discontinued
| Catalog Number | AEP10463 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | For AE1042, AE1048 Receptacles And APR10463 Connector Body |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Special Features | Grounding style: shell and extra pole; Weatherproof; Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs; Plug with clamp ring has neoprene gasket, ring threads onto screw cap receptacle to provide raintight assembly when properly tightened; Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking; Floating-type plug contacts self-align to receptacle contacts; For welders, generators, compressors, pumps, similar apparatus; Natural finish fiber glass reinforced phenolic insulation blocks |
| Standard | UL 1682, UL 1686 |
| UPC | 781381137003 |
| GTIN | 00781381137003 |
| Item Type | AE Series Grounding Style 2 Clamping Ring Plug |
| Voltage Rating | 600 VAC, 250 VDC |
| Wire Size | 3 - 1 AWG |
