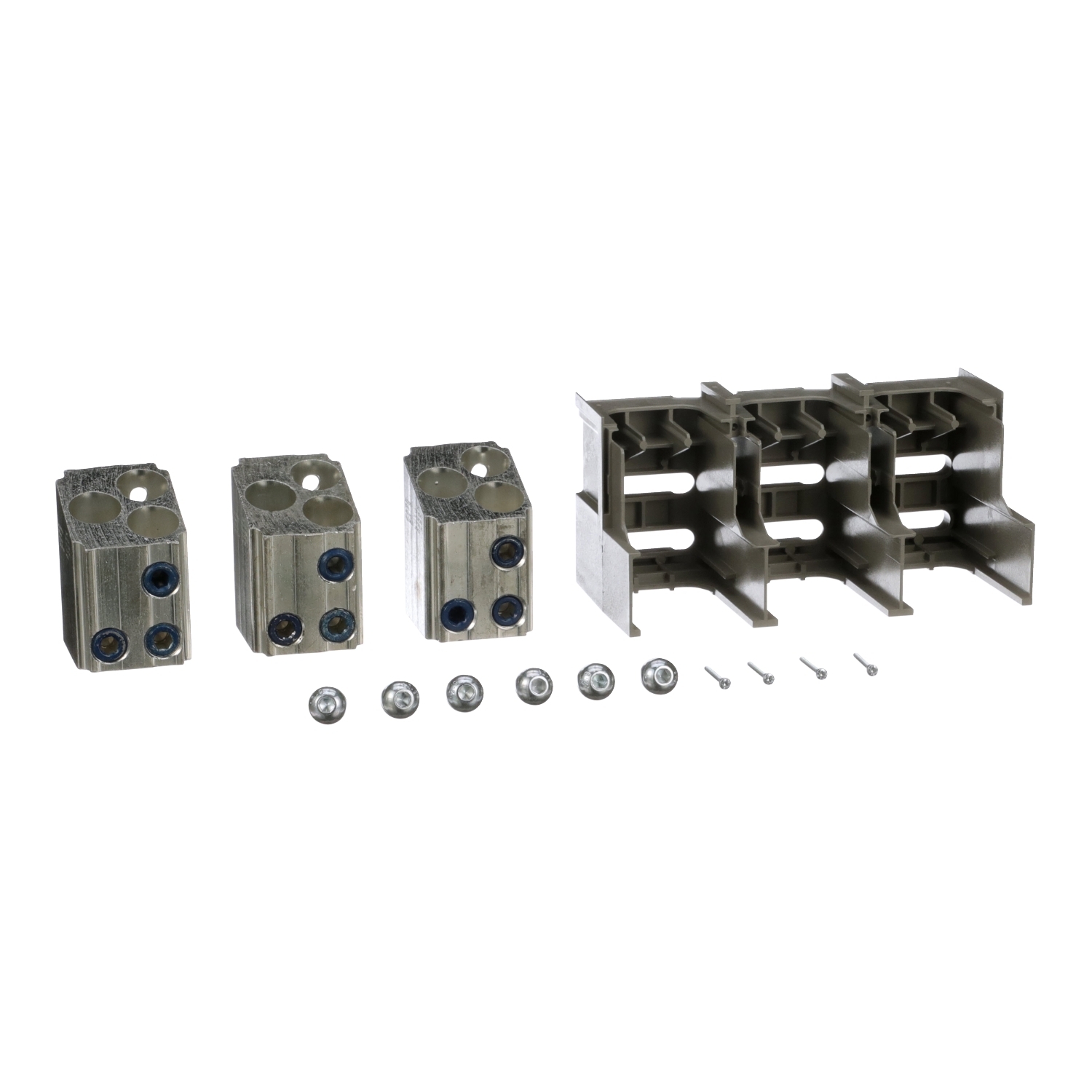

AL1200P7KU Mechanical Lug Kit, 3/0 AWG to 750 kcmil, For Use With PowerPact P-Frame Molded Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- AL1200P7KU
- UPC:
- 785901654766
- Item #:
- 272790
AL1200P7KU Mechanical Lug Kit, 3/0 AWG to 750 kcmil, For Use With PowerPact P-Frame Molded Circuit Breaker
- MFR #:
- AL1200P7KU
- UPC:
- 785901654766
- Item #:
- 272790

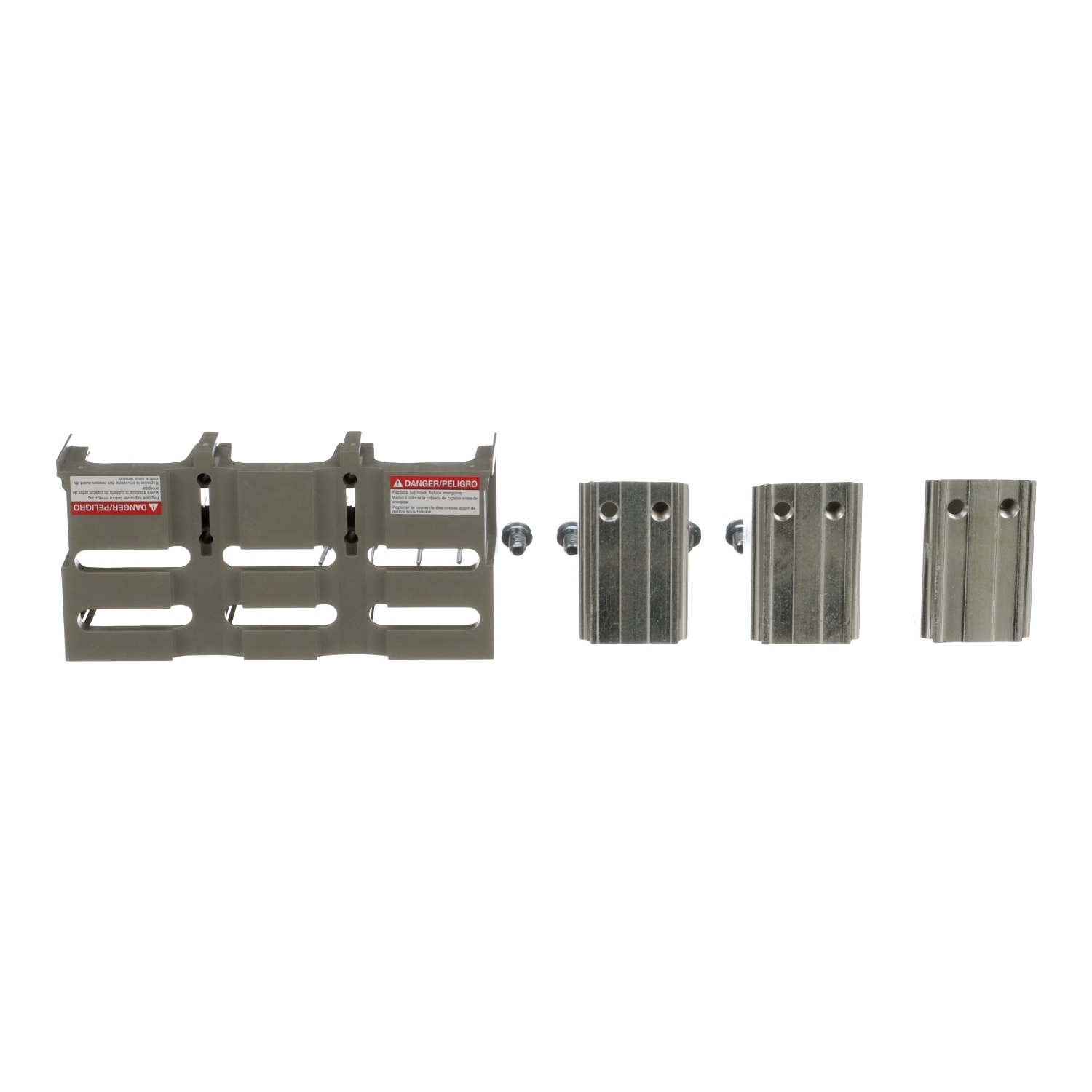

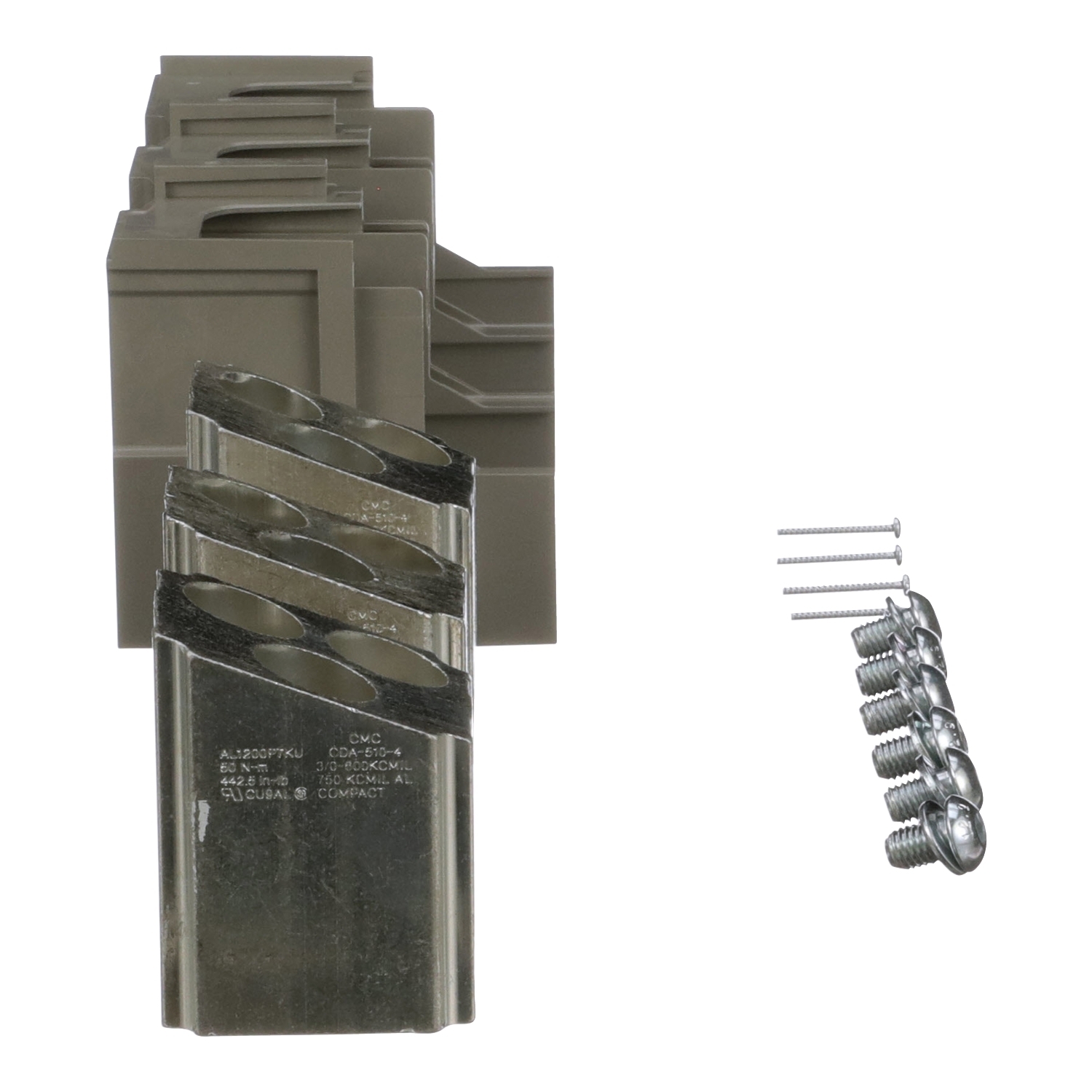

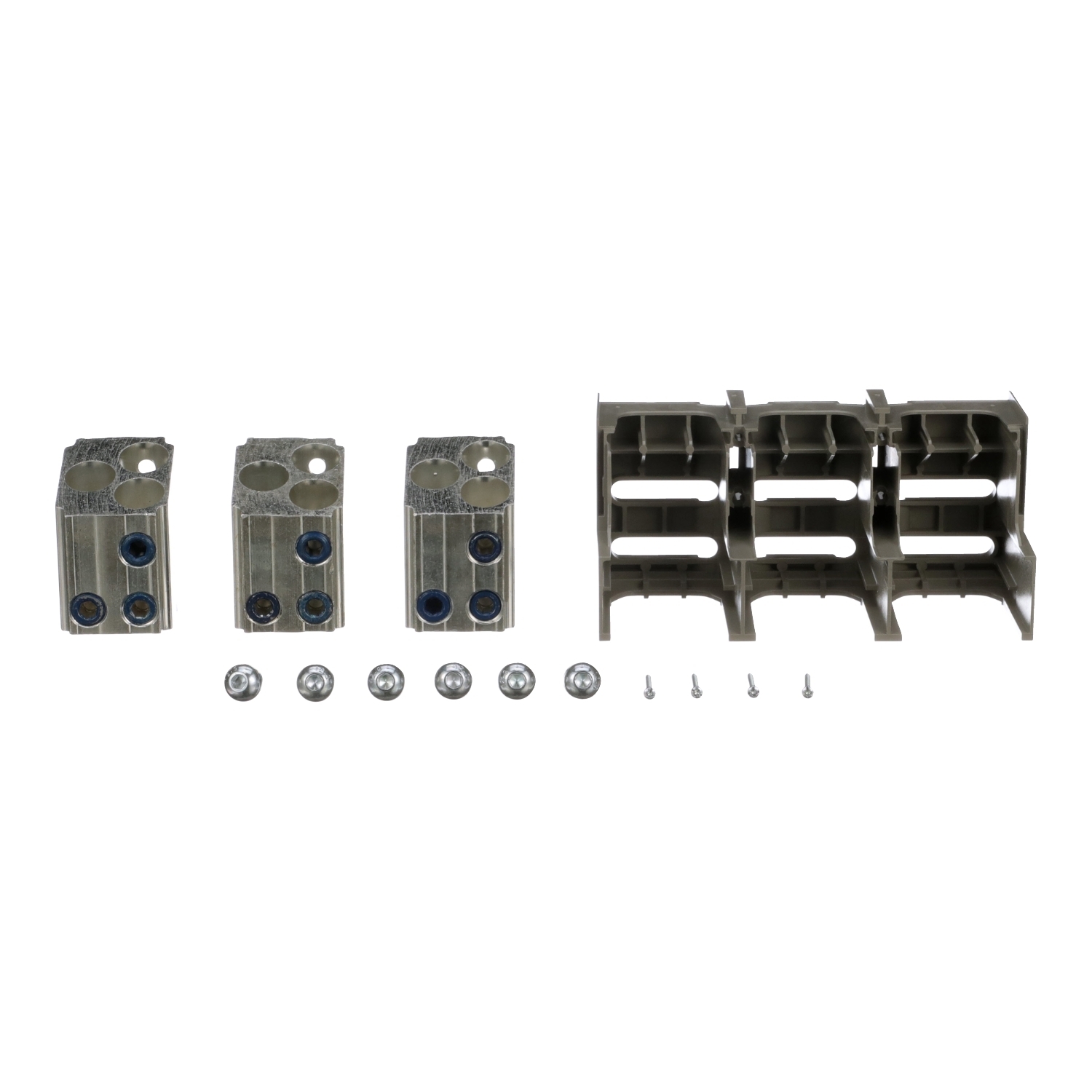

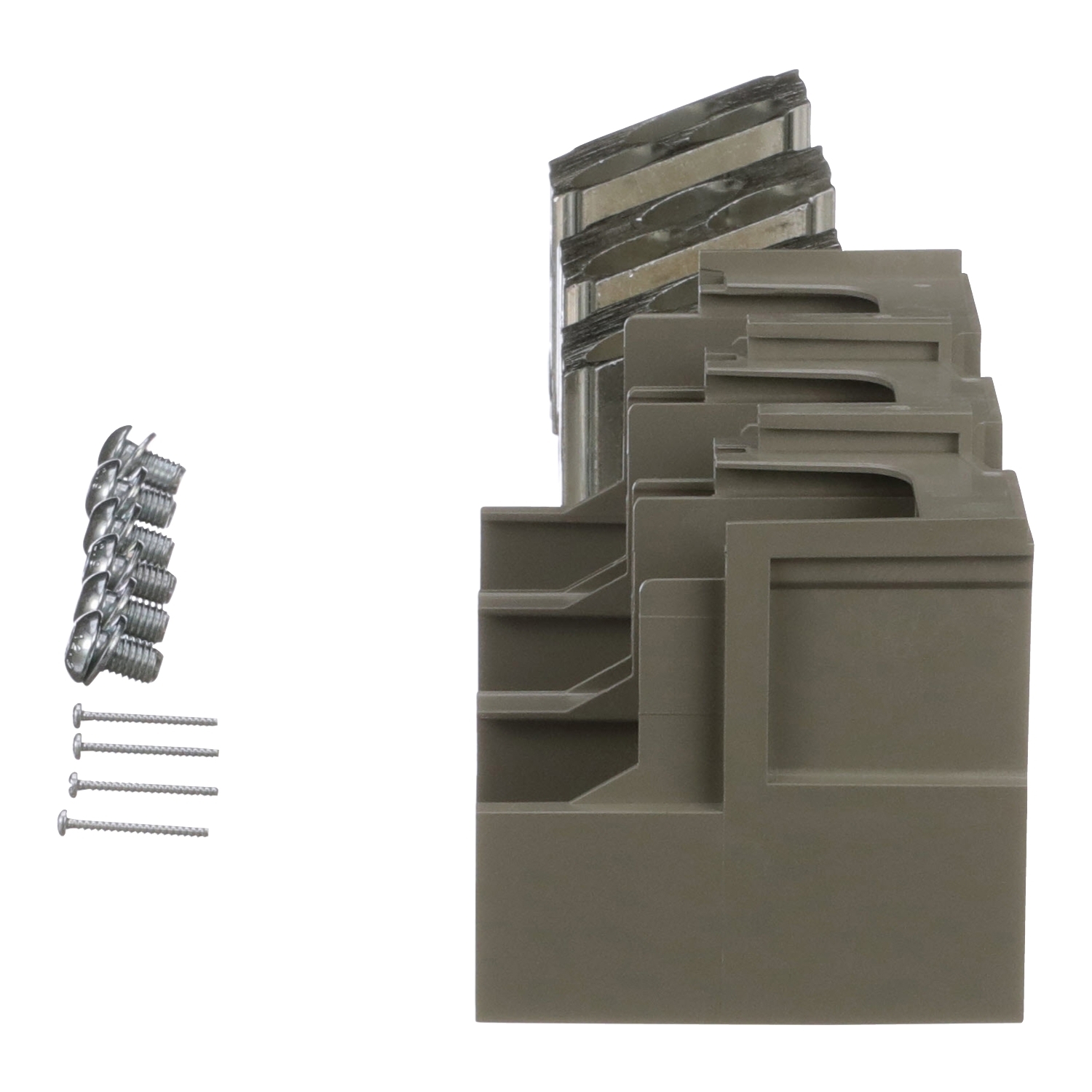

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT P circuit breakers. These aluminum lugs are rated for 1200A. The lugs accept 3/0 AWG to 750kcmil aluminum and copper conductors; 750kcmil compact Al only. These lugs comply with UL and CSA standards.
Manuals & Documentation
| Catalog Number | AL1200P7KU |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | PGL;PJL;PLL |
| Conductor Size | 750 KCMIL |
| Connection | AWG 3/0...600 kcmil aluminium/copper;AWG 3/0...750 kcmil aluminium |
| Material | Aluminium |
| Mounting | Screw |
| Special Features | Set of 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55982578&lang=en-us |
| UPC | 785901654766 |
| GTIN | 00785901654766 |
| Item Type | Connection accessory;Mechanical lug |
