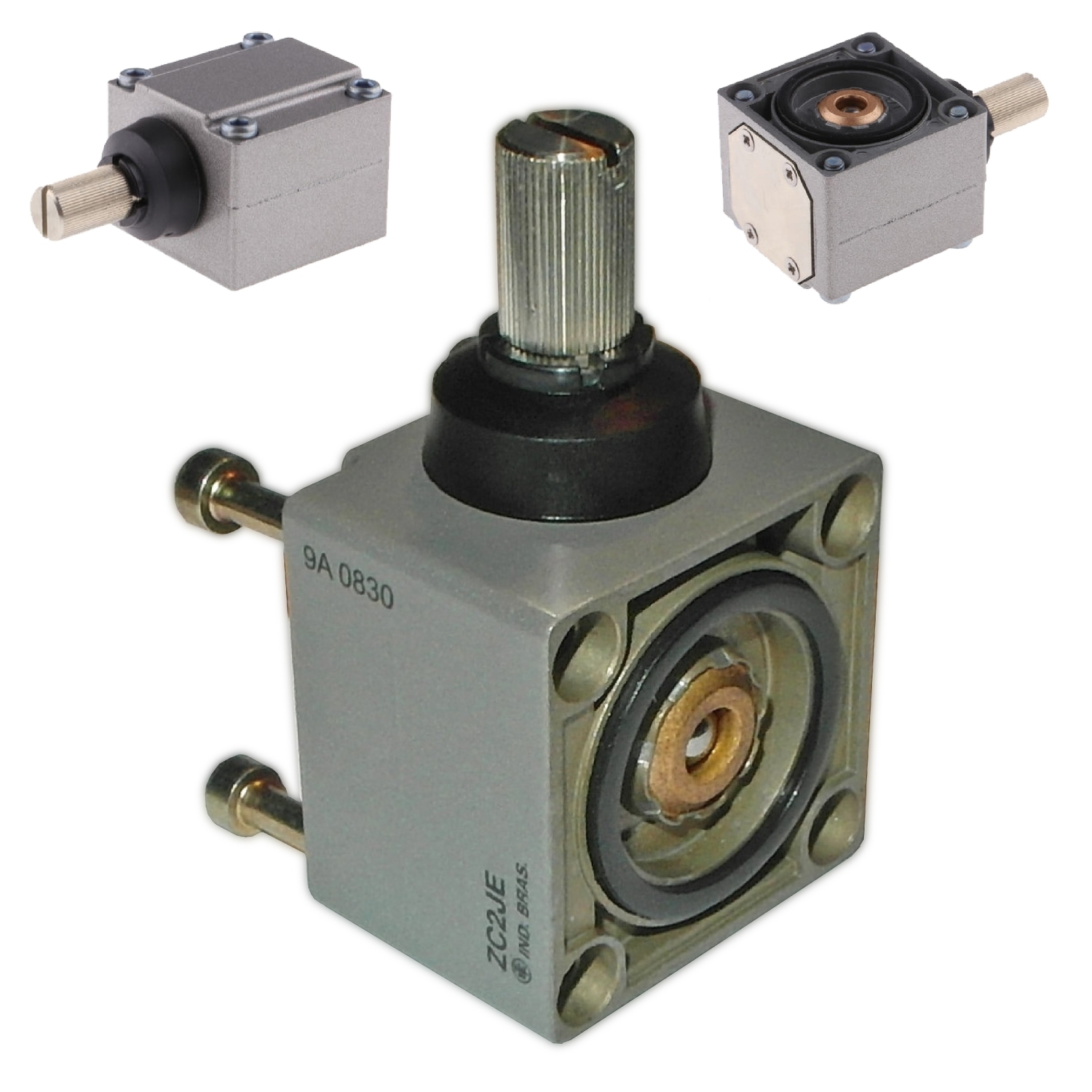

ZC2JE04 OsiSense Rotary Limit Switch Head, Left/Right Lever, For Use With XC2J and ZC2J Series Special Format Limit Switch
- MFR:
- Telemecanique Sensors
- MFR #:
- ZC2JE04
- UPC:
- 785901185833
- Item #:
- 271813
ZC2JE04 OsiSense Rotary Limit Switch Head, Left/Right Lever, For Use With XC2J and ZC2J Series Special Format Limit Switch
- MFR #:
- ZC2JE04
- UPC:
- 785901185833
- Item #:
- 271813
This product is part of the XC Special range, an offer of limit switches. This limit switch head provides switch actuation from left and right, CW and CCW without positive opening operation. Without spring return operating lever. It supports lateral approach in 2 directions. The movement of limit switch operating head is rotary. The limit switch head is made of metal. It weighs 0.21kg. It is compatible with XC2J series limit switches. Its associated bodies are ZC2JC48, ZC2JC4, ZC2JD4 and lever are ZC2JY12, ZC2JY11, ZC2JY81, ZC2JY51, ZC2JY31, ZC2JY13. Special format limit switches for severe environments.
Manuals & Documentation
| Catalog Number | ZC2JE04 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Lateral approach, 2 directions;CW and CCW;from left and right |
| Actuator | Without operating lever spring return |
| Application | XC2J |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=878598&lang=en-us |
| UPC | 785901185833 |
| GTIN | 03389110324600 |
| Item Type | Limit switch head |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Operating Temperature | -25-70 A Degrees C |
