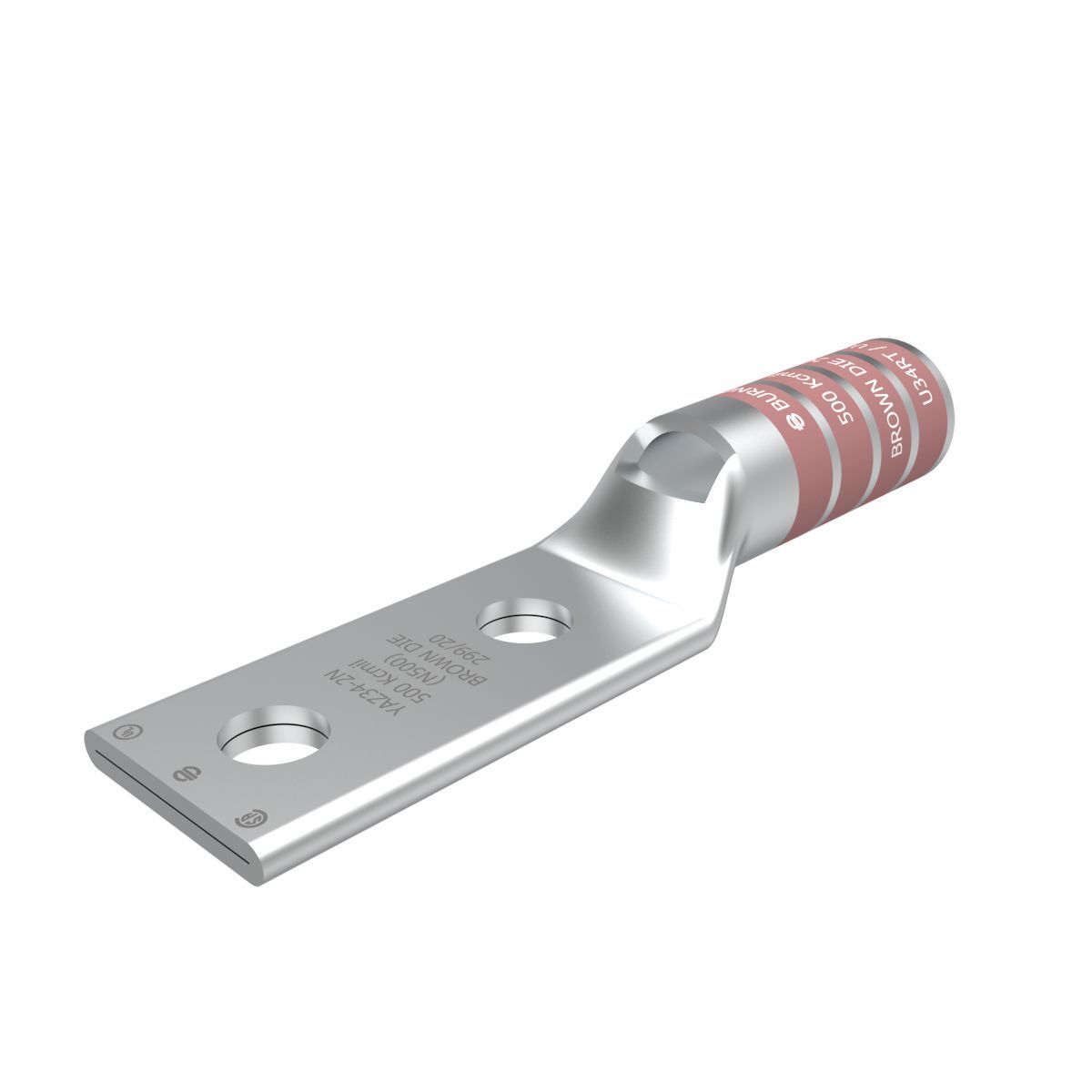

YAZ342N YAZ-2N 2-Hole Compression Lug With Inspection Window, 500 kcmil Copper Conductor, Die Code: 20/299, 1/2 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ342N
- UPC:
- 781810208625
- Item #:
- 270616
YAZ342N YAZ-2N 2-Hole Compression Lug With Inspection Window, 500 kcmil Copper Conductor, Die Code: 20/299, 1/2 in Stud, Tin Plated Copper
- MFR #:
- YAZ342N
- UPC:
- 781810208625
- Item #:
- 270616
Manuals & Documentation
| Catalog Number | YAZ342N |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 2-5/16 IN, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (4), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Die Index: 20 Or 299 |
| Standard | UL 486A-486B |
| UPC | 781810208625 |
| GTIN | 00781810208625 |
| Item Type | Long Barrel, Skive, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | CLWD-500-12-134, L500N |
