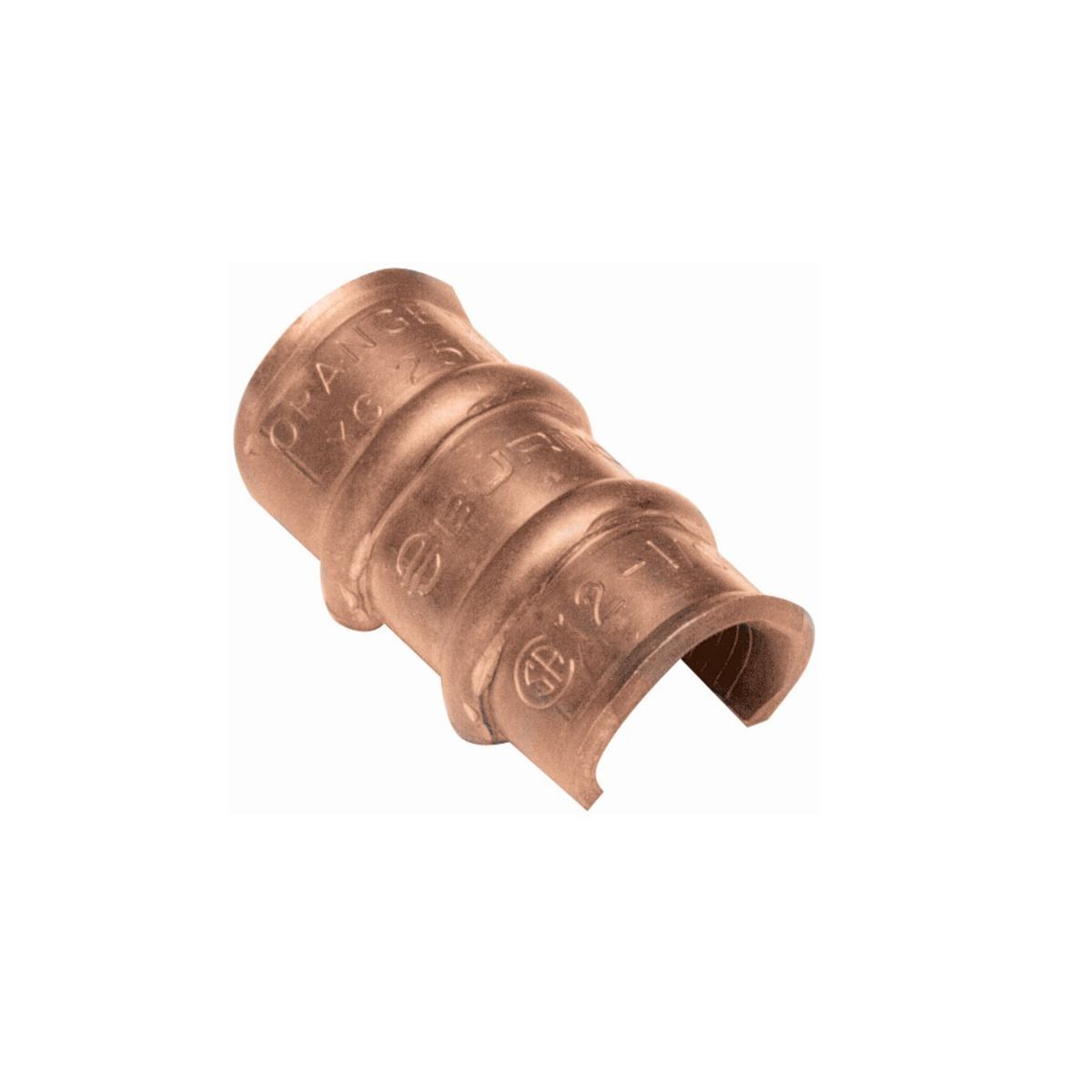

YC25L12 Type YC-L Thinwall Compression C-Tap Connector, Figure C Shape, 1 AWG Main/Run, 12 to 2 AWG Tap, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YC25L12
- UPC:
- 781810040171
- Item #:
- 269206
YC25L12 Type YC-L Thinwall Compression C-Tap Connector, Figure C Shape, 1 AWG Main/Run, 12 to 2 AWG Tap, Copper
- MFR #:
- YC25L12
- UPC:
- 781810040171
- Item #:
- 269206
Manuals & Documentation
| Catalog Number | YC25L12 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Tap |
| Finish | Tin-Plated |
| Material | COPPER |
| Special Features | Features: Manufactured Form High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Range-Taking Connector: Lowers Inventory Requirements, Reinforced Ribs: Provides Maximum Pull-Out Values, Compact Size: Easy To Tape And Insulate Connection, Economical: Provides Low Installed Cost,Type YC-L Is A Thin-Wall High Conductivity Copper Connector For Making Copper Tap And Parallel Connections From #14 To 3/0 AWG, Die Index: 14 Element A (Mechanical), 14M Element A (Hydraulic), Shape: C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840 And MD7-34R Tool, W27VT Die, (3), Hydraulic: BCT500, Y500CT, BAT500 Tool, WC25 Die, (2), Y35, Y39, Y750, Y45, Y46 Tool, UC25 Die, (1), Number Of Ribs: 2, Wire Strip Length: 1-13/16 IN, Color Code: Orange |
| Standard | UL 486A-486B |
| UPC | 781810040171 |
| GTIN | 00781810040171 |
| Item Type | YC-L Series |
| Temperature Rating | 194 |
| Cross Reference Products | 54740 |
