8801745 TS Series Top Mounting Module, For Use With TS Series 31 in W x 24 in D Enclosure, NEMA 12, Carbon Steel, Light Gray
- MFR:
- Rittal
- MFR #:
- 8801745
- UPC:
- 639889358881
- Item #:
- 268353
8801745 TS Series Top Mounting Module, For Use With TS Series 31 in W x 24 in D Enclosure, NEMA 12, Carbon Steel, Light Gray
- MFR #:
- 8801745
- UPC:
- 639889358881
- Item #:
- 268353

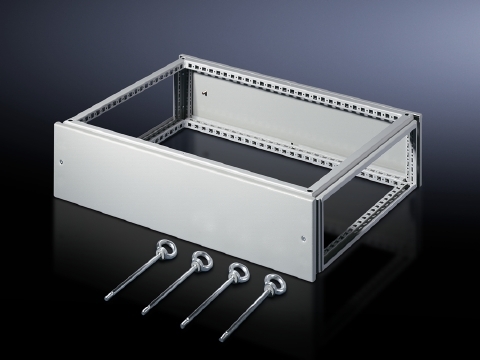

Top-mounting module, for TS, material: Sheet steel, 1.5 mm, surface: Spray-finished, textured paint, color: Similar to RAL 7035, supply includes: 1 frame module, 2 trim panels (front and rear), 8 holders with automatic potential equalisation, 4 tapped rods with eyebolts, 2 trim panels front/rear, 8 retainers with automatic potential equalisation, description: As a cable chamber for cable infeed from above or for power distribution with busbar systems across bayed enclosures.
Features
- Size: 31.500 Inch Width x 23.600 Inch Depth x 7.900 Inch Height
- UL type 12 (IP 55 to EN 60 523/10.91) in conjunction with module sidewall
| Catalog Number | 8801745 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Color | RAL 7035 |
| Consist of | 1 Frame Module, 2 Trim Panels (front and Rear), 8 Holders with Automatic Potential Equalization, 4 Tapped Rods with Eyebolts, 2 Trim Panels Front/Rear, 8 Retainers with Automatic Potential Equalization |
| Material | Sheet Steel |
| Standard | UL Listed, cUL Listed, cULus Listed |
| RoHS Indicator | Under Review |
| UPC | 639889358881 |
| GTIN | 00639889358881 |
| Item Type | Top-Mounting Module |
| Length | 24.4090 |
| Length UOM | Inch |
| Width | 32.2830 |
| Width UOM | Inch |
| Height | 8.4650 |
| Height UOM | Inch |
| Weight | 28.880 |
| Weight UOM | Pounds |
| Size | 200 (H) |
