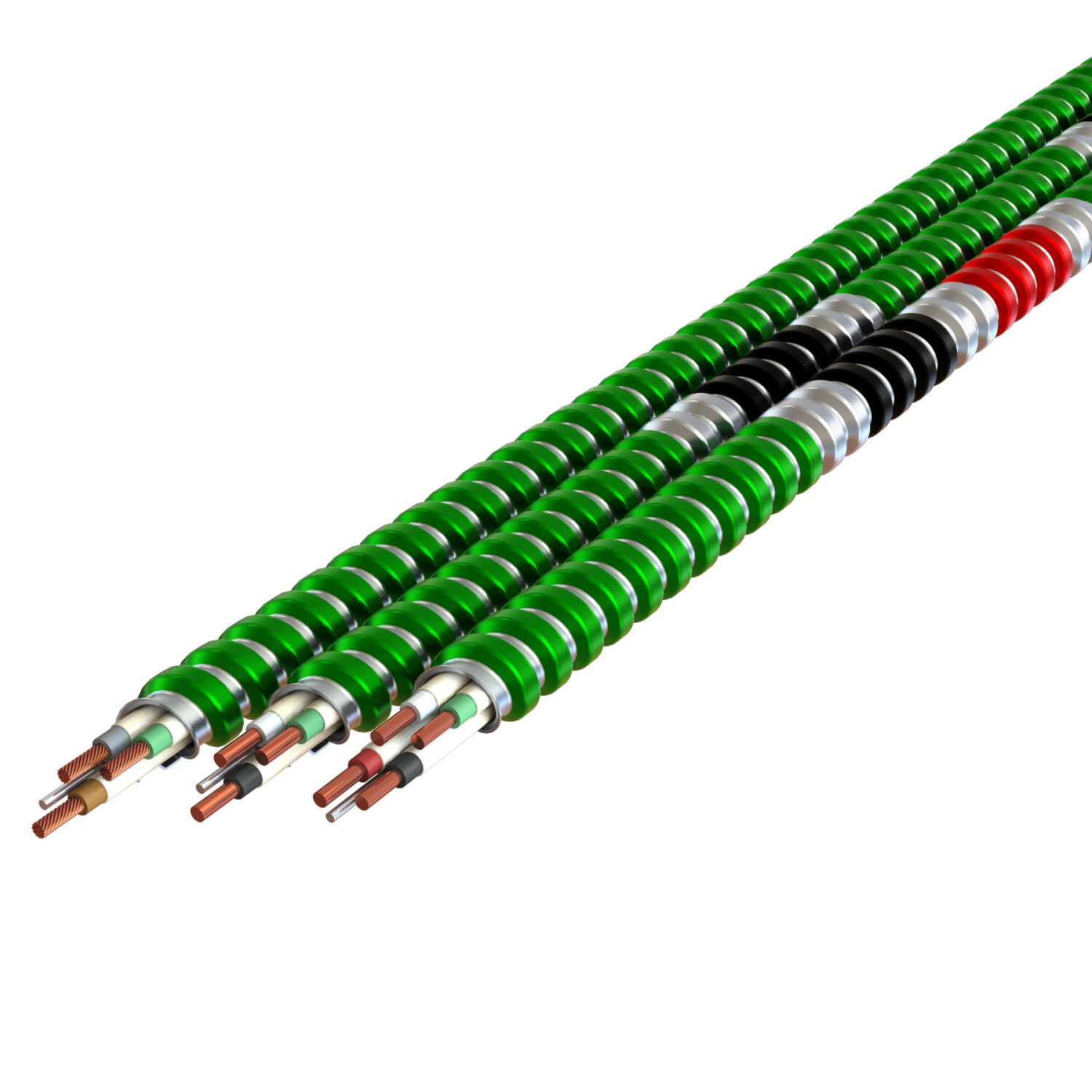

2858G60-00 Type AC Healthcare Facility Armored Cable, Reel Packaging, 600 V, (2) 12 AWG Stranded Copper Conductor, 1000 ft L

MFR:
ATKORE - KAF-TECH
MFR #:
2858G60-00
UPC:
077680178602
Item #:
268171

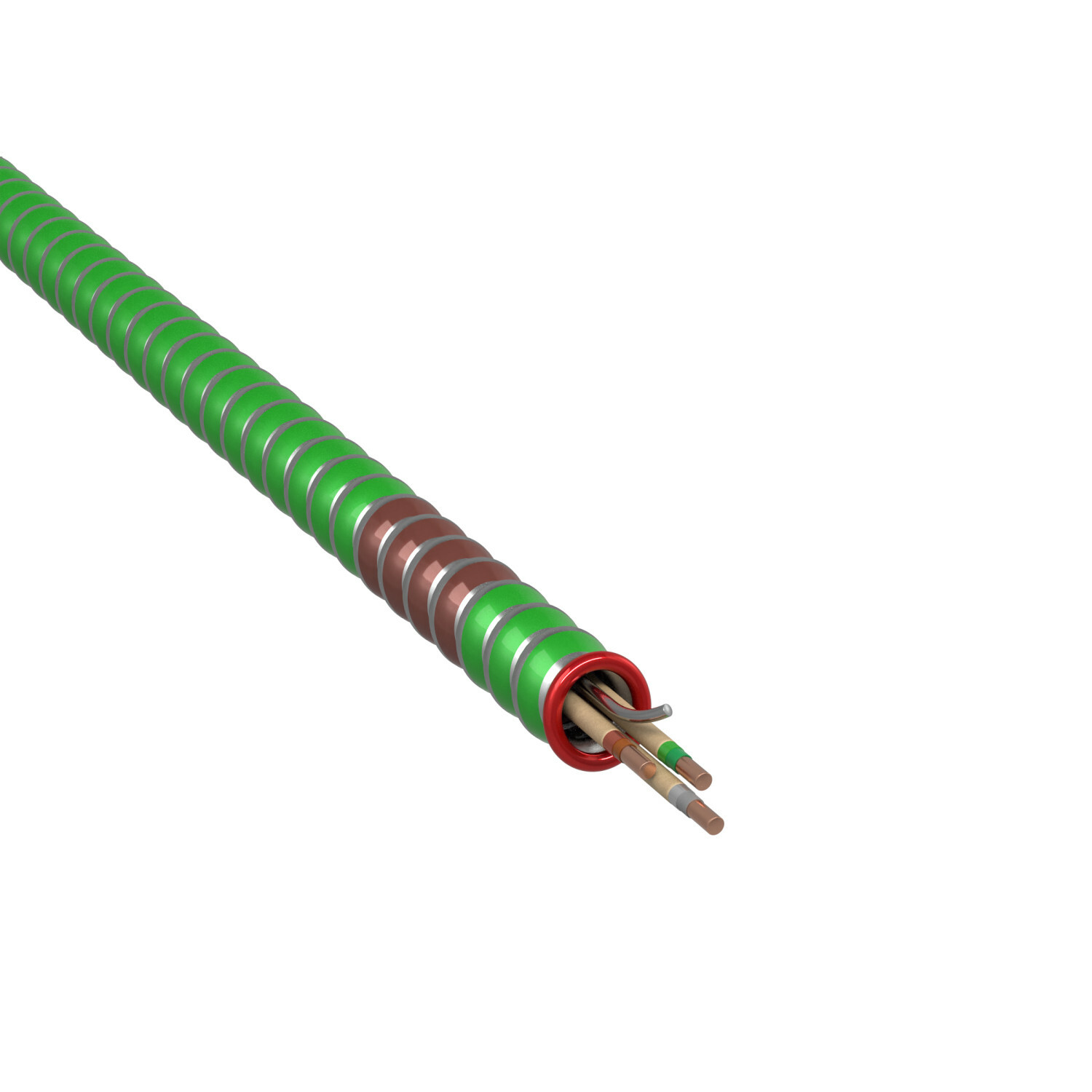

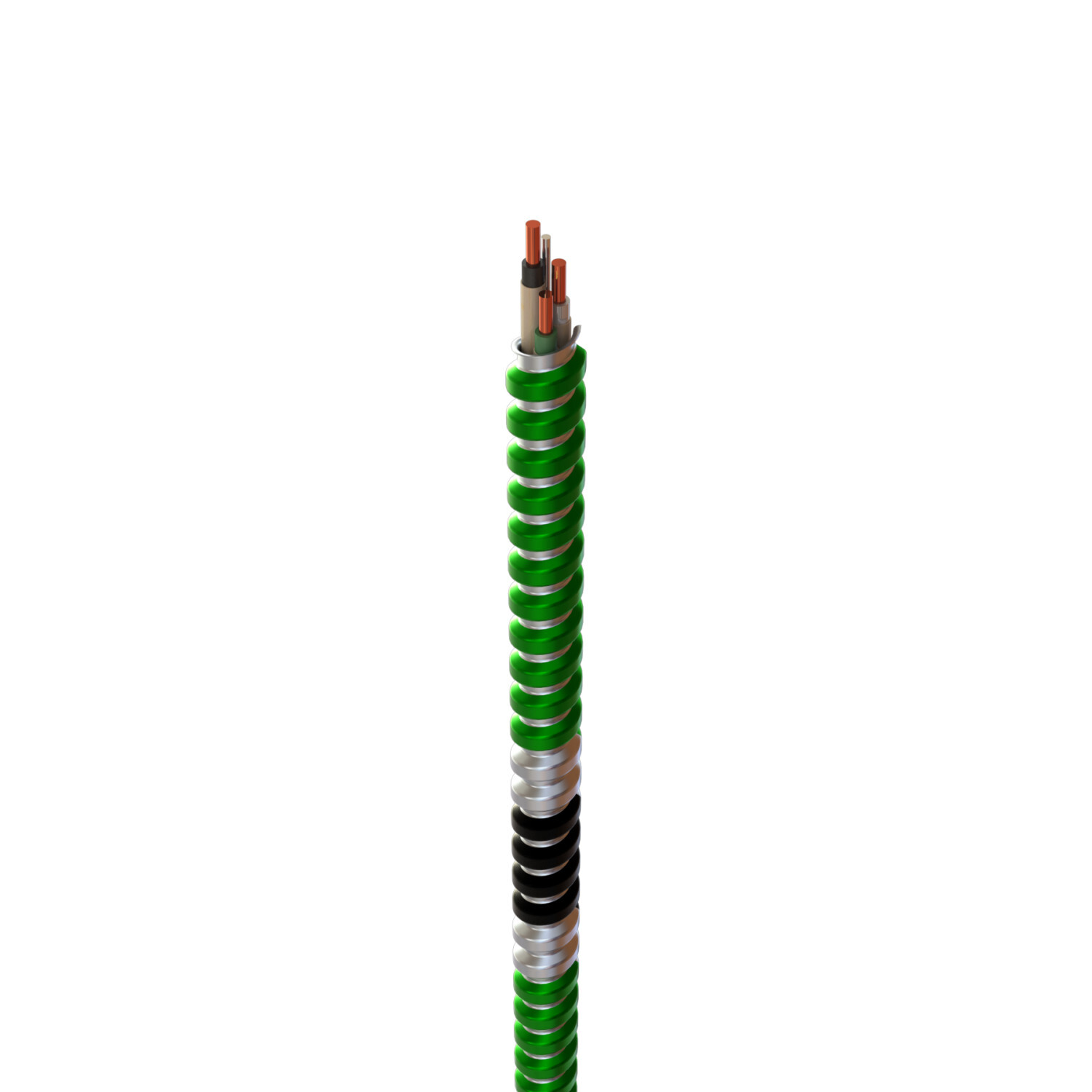

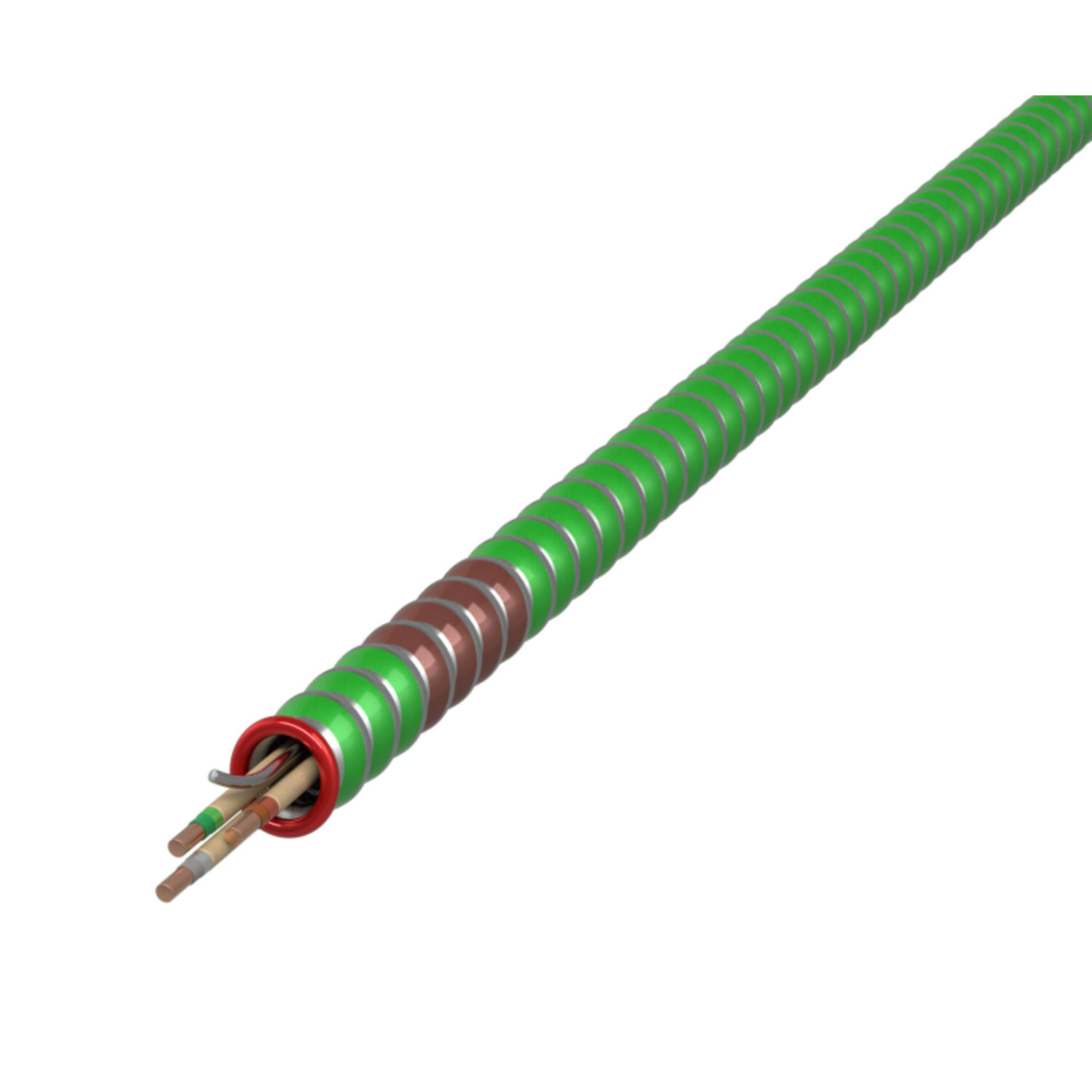

HCF-Lite, which features interlocked aluminum armor, is a derivative of Type AC Cable. It was introduced in the 1980s to support NEC Article 517 on Healthcare Facilities in "areas of patient care". This branch circuit cable is offered in 12 or 10 AWG THHN in 2, 3, or 4 conductors and was one of the original ColorSpec ID cables. The green interlocked armor became the recognized standard for healthcare facilities' cables, where redundant grounding is required. These 600V cables with THHN conductors have two paths to ground, which is a requirement of NEC 517. The outer metal jacket, in combination with a 16AWG, serves as one equipment grounding means, while the second is an additional full-size green copper ground.

Manuals & Documentation
Catalog Number 2858G60-00
Manufacturer ATKORE - KAF-TECH
Brand Kaf-Tech
Country of Origin United States
Made in USA Yes
Armour Interlocked Aluminum Strip
Color Green
Conductor Material Copper
Number of Conductors 3
Standard UL 4, 83, 1479, 1581, 2556 File Number E7330, NEC 250.118(8), 300.22(C), 392, 320, 517.13, 518, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, RoHS Compliant
UPC 077680178602
GTIN 00077680178602
Item Type Healthcare Facilities Cable With Ground And Neutral
Length 1000
Length UOM Foot
Weight 0.141 LB/FT
Outside Diameter 0.568 IN
Temperature Rating 90
Voltage Rating 600V
