Appleton

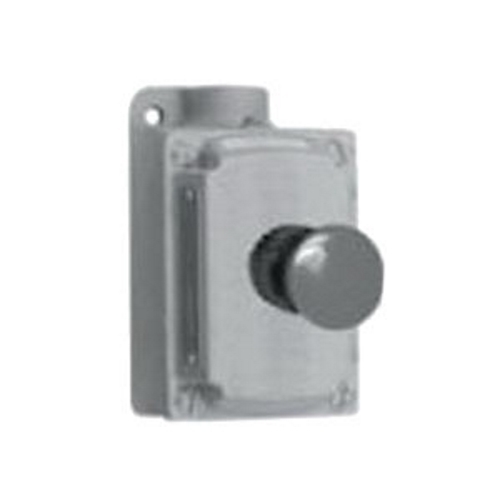

EDS2714 Contender 1-Gang 1-Circuit Dead End Pushbutton Control Station, 600 V AC, 10 A, 1NO-1NC Contact, 1 Operators, NEMA 3/7CD/9EFG NEMA Rating

MFR:
Appleton Electric
MFR #:
EDS2714
UPC:
781381901987
Item #:
266644

Contender EDS Series 1-Gang 1 Circuit Push Button Switch, Action: Maintained, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Actuator: Red Mushroom Head, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 5.31 IN, Width: 3.72 IN, Depth: 3.06 IN, Legend: Emergency Stop, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G And Class III, For Remote Control Of Motors

Manuals & Documentation
Catalog Number EDS2714
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Action Maintained
Application For Remote Control Of Motors
Enclosure NEMA 3, 7CD, 9EFG
Mounting Surface
Special Features Covers are UL Listed when used on Contender bodies; Ground screw installed in bodies for ground continuity; Corrosion resistant stainless steel hex head captive screws hold covers to body; Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Smooth, rounded integral bushing in each hub protects conductor insulation; Push button and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
Standard UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G And Class III
UPC 781381901987
GTIN 00781381901987
Item Type EDS Series 1-Gang 1 Circuit Push Button Switch
