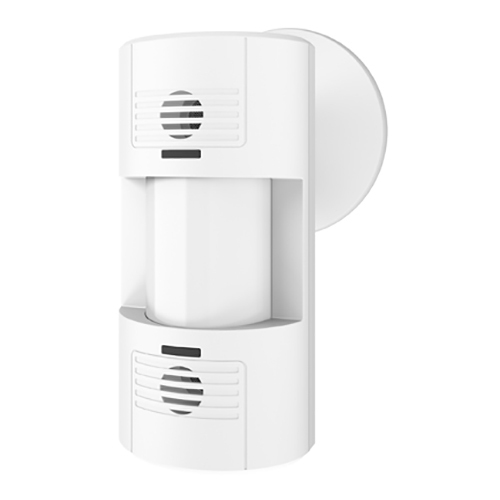

LOS-WDT-WH LOS Wall Mount Sensor, Dual Technology, 1600 sq ft, 360 Degree View, Self Adapt, 20-24V, White
- MFR:
- Lutron Electronics
- MFR #:
- LOS-WDT-WH
- UPC:
- 027557212410
- Item #:
- 26544
LOS-WDT-WH LOS Wall Mount Sensor, Dual Technology, 1600 sq ft, 360 Degree View, Self Adapt, 20-24V, White
- MFR #:
- LOS-WDT-WH
- UPC:
- 027557212410
- Item #:
- 26544
Manuals & Documentation
| Catalog Number | LOS-WDT-WH |
| Manufacturer | Lutron Electronics |
| Brand | Lutron |
| Application | Lighting Control |
| Enclosure | Plastic |
| Mounting | Ceiling |
| Sensing Range | 1600 ft2 (148 m2), 110 degree field of view |
| Special Features | Can be mounted to a wall or ceiling for use in spaces with pendant fixtures, ceiling fans, or high ceilings (higher than 12 ft (3.7 m). The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product. Designed to meet the challenges found in a wide variety of spaces, the sensor works well in spaces with overhead fans and space heaters. Ideal for use in work areas, storage facilities, storerooms, indoor garages, and rooms with pendant fixtures. Intelligent, continually adapting sensor. Ultrasonic (US) combined with Passive Infrared (PIR) sensing provides high sensitivity, high noise immunity, and excellent false tripping immunity. The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors. Suited for complex environments that are difficult to control with single-technology sensors. Flexible base mounting on wall or ceiling. Aim and lock: base mount permits fast alignment. Non-volatile memory: settings saved in protected memory are not lost during power outages. 1600 ft2 (148 m2) coverage when used where the ceiling height is between 8 to 12 ft (2.4 to 3.7 m). Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system. |
| Standard | UL, cUL |
| Supply Voltage | 20 to 24 VDC |
| UPC | 027557212410 |
| GTIN | 00027557212410 |
| Item Type | Dual Technology wall-mount occupancy sensor |
| Environmental Conditions | Relative humidity less than 95 percent, non-condensing. For indoor use only |
| Operating Temperature | 32 to 104 F |
