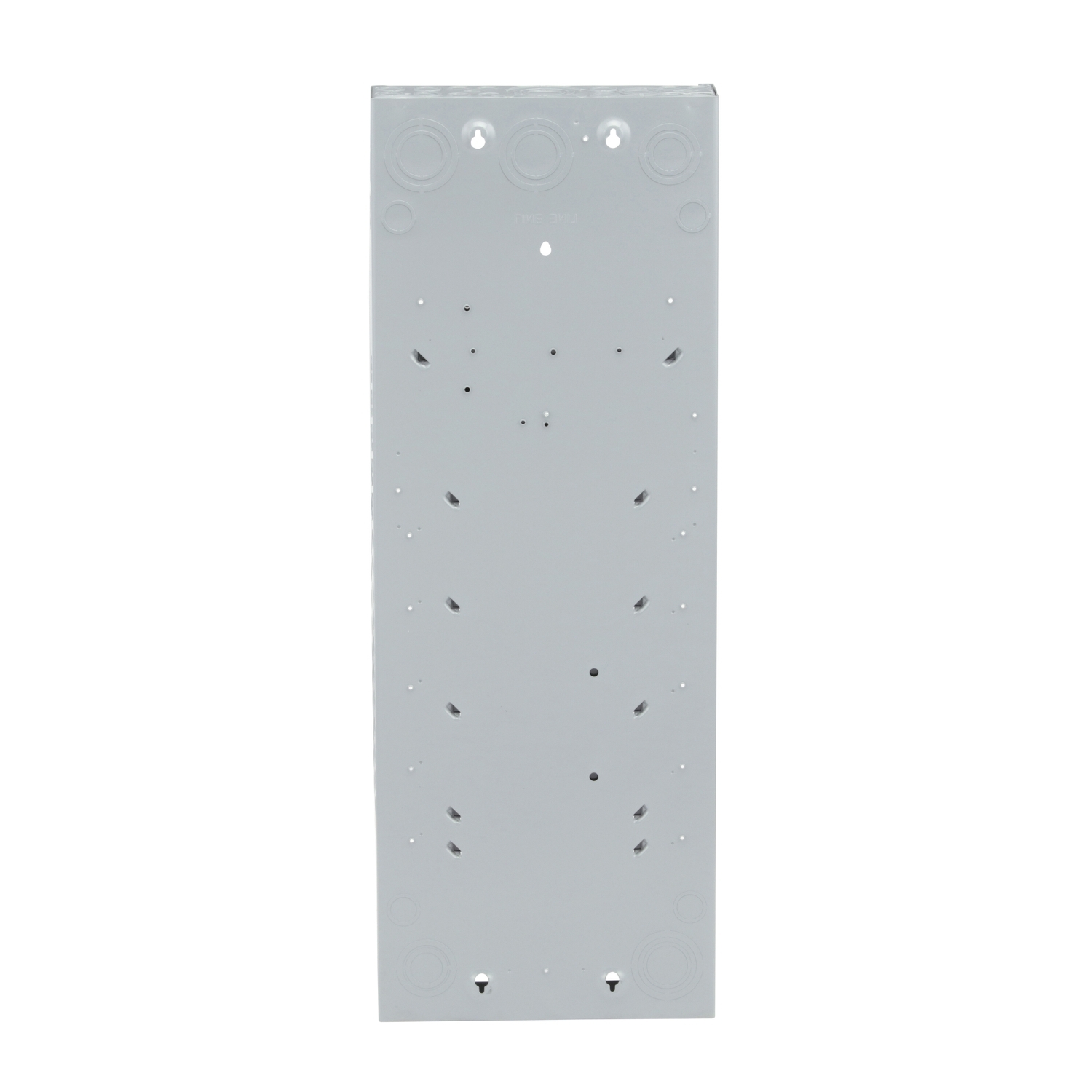

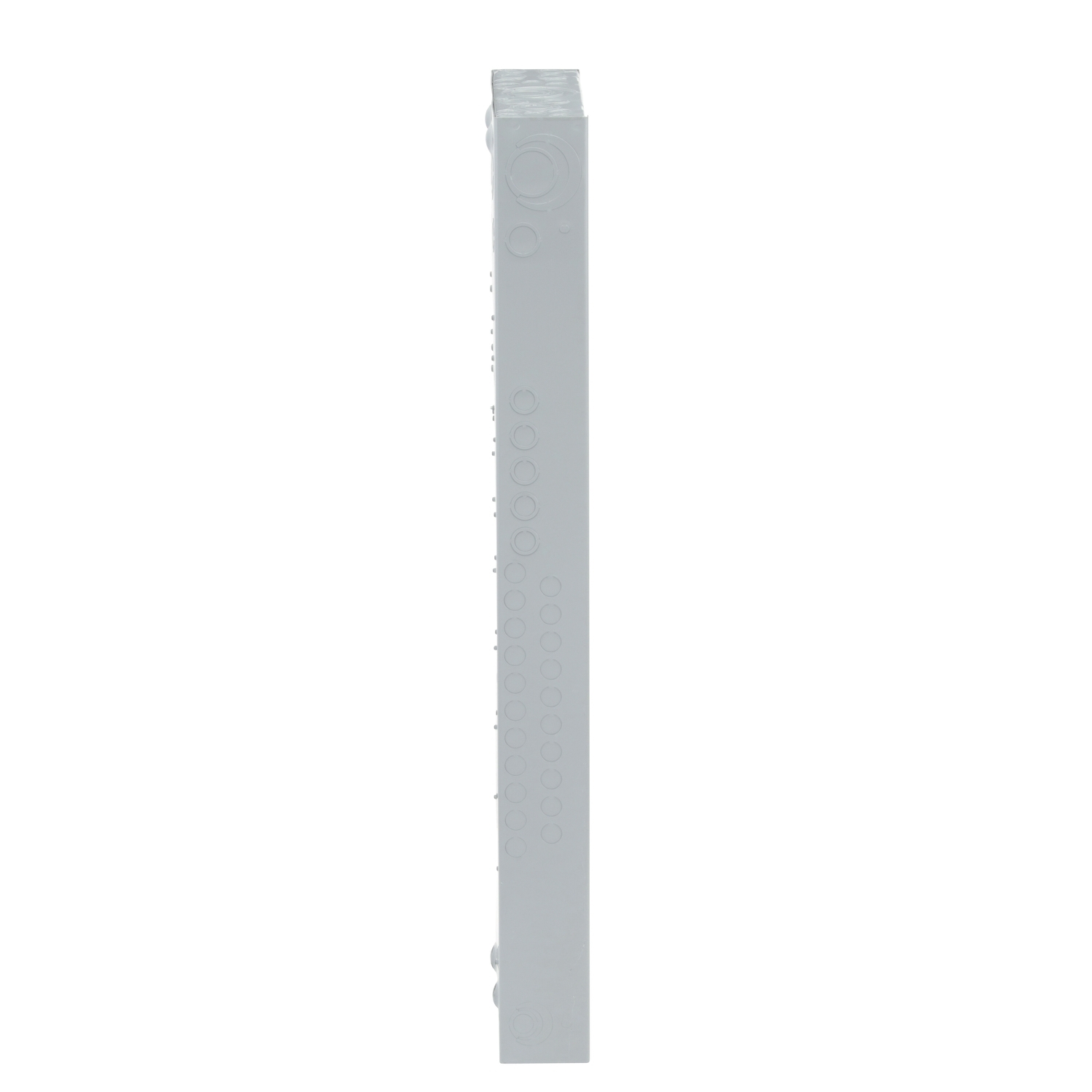

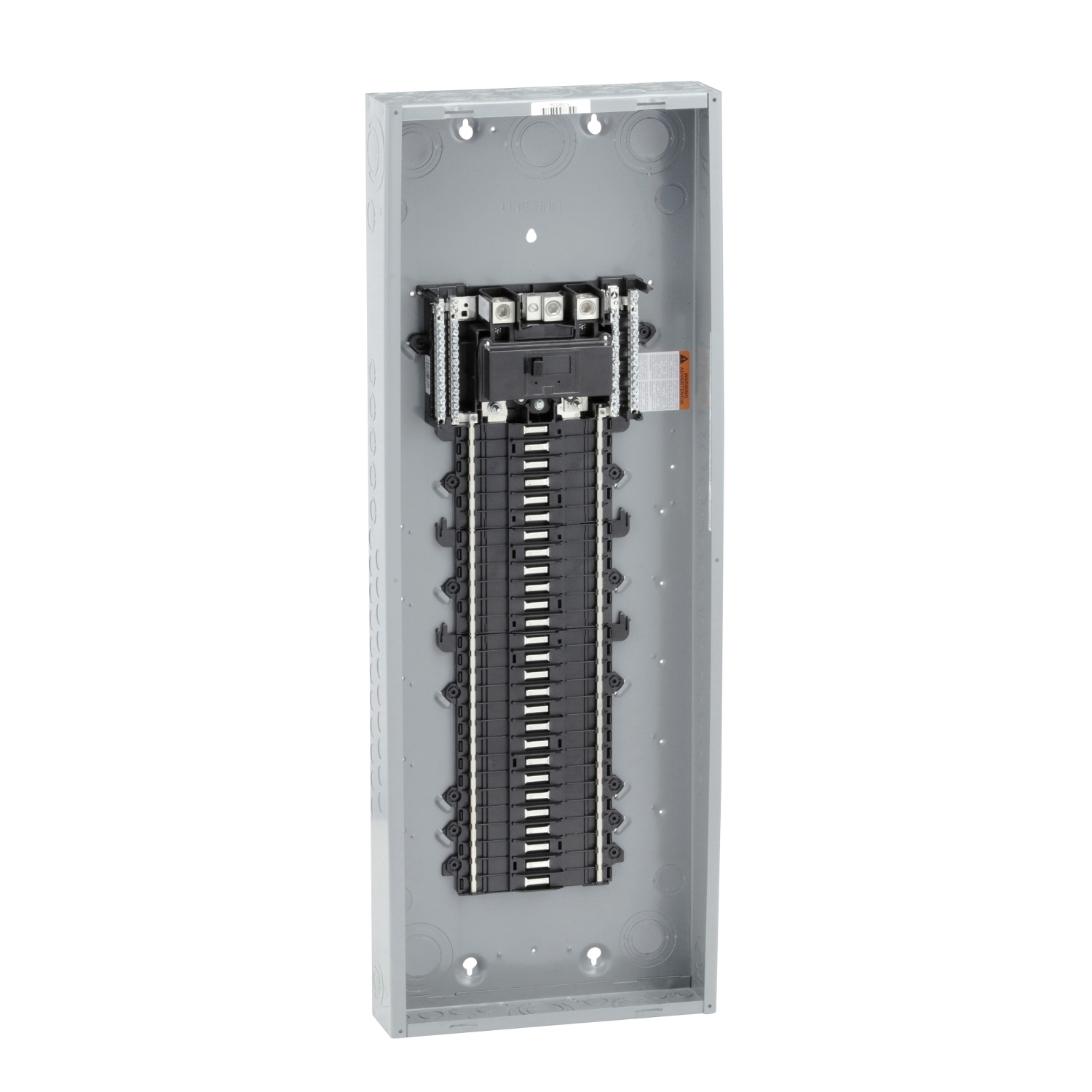

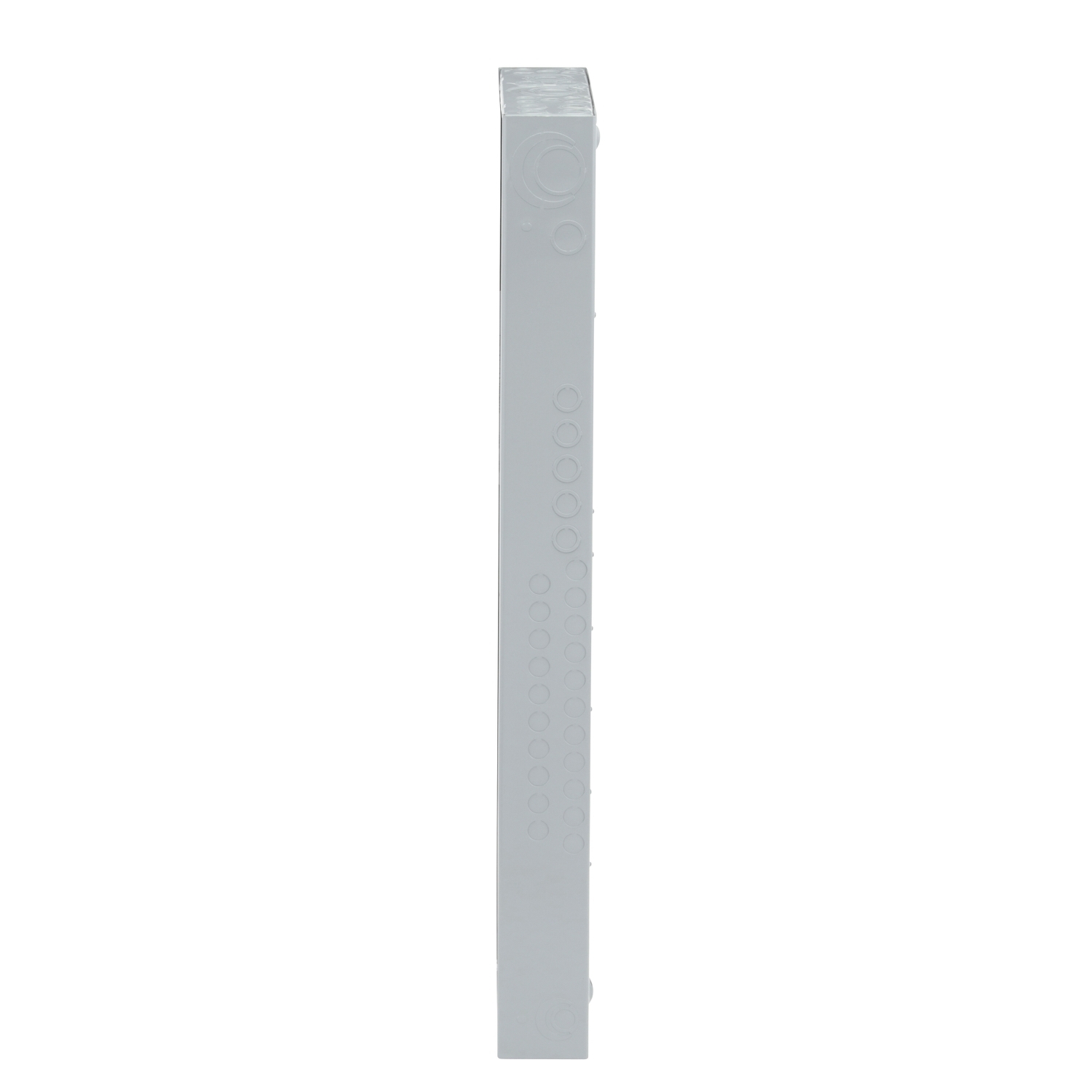

QO154M200P 1-Phase Convertible Neutral Main Breaker Loadcenter, 120/240 V AC, 200 A, 1 Pole, 22 kA Interrupt

MFR:
Schneider Electric
MFR #:
QO154M200P
UPC:
785901377443
Item #:
265231

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 54 spaces and 65 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. This product is UL rated.

Manuals & Documentation
Catalog Number QO154M200P
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Cable Size AWG 4...250 kcmil aluminium/copper
Cover Type Order separately
Enclosure Baked enamel Gray;Welded sheet steel;12
Phase 1
Special Features Tin plated copper: busbar
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=239671185&lang=en-us
UPC 785901377443
GTIN 00785901377443
Item Type Load Center
