Elastimold

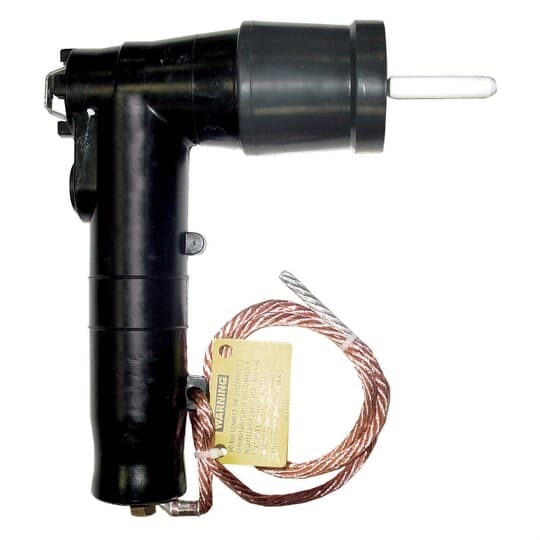

167ESA-18 Elastimold Insulated Shielded Elbow Surge Arrester, 80.5 kV Maximum Discharge, EPDM Rubber, 15.3 kV RMS MCOV Surge, 200 A

MFR:
ABB - Installation Products
MFR #:
167ESA-18
UPC:
783786468935
Item #:
265042
Manuals & Documentation
Catalog Number 167ESA-18
Manufacturer ABB - Installation Products
Brand Elastimold
Country of Origin United States
Made in USA Yes
Amperage Rating 200
Application Provide High Voltage Lightning and Switching Surge Protection of Tranformers, Cable, Equipment and other Components typically Located on Underground Power Distribution Systems
Insulation yes
Material EPDM Molded Rubber
Special Features EPDM Rubber Construction - Fully Shielded and Fully Submersible for a Variety of Applications. IEEE 386 Interfaces Provide Convenient Energized Connection with other 200 Amp Loadbreak or Deadbreak Components. Compact Size Enables Installation in your Existing Cabinetry, Saving you Money. Number 4 AWG Ground Lead Tethered to the Jacket Withstands 10,000 Amps for 10 Cycles without Fusing. Ground Lead Also Controls ENd Plug when Ejected, Preventing Uncontrolled Trajectory and Maintains the Housing Shield Ground Connection After Failure
UPC 783786468935
GTIN 00783786468935
Item Type Elbow Surge Arrester
Voltage Rating 15 kV
