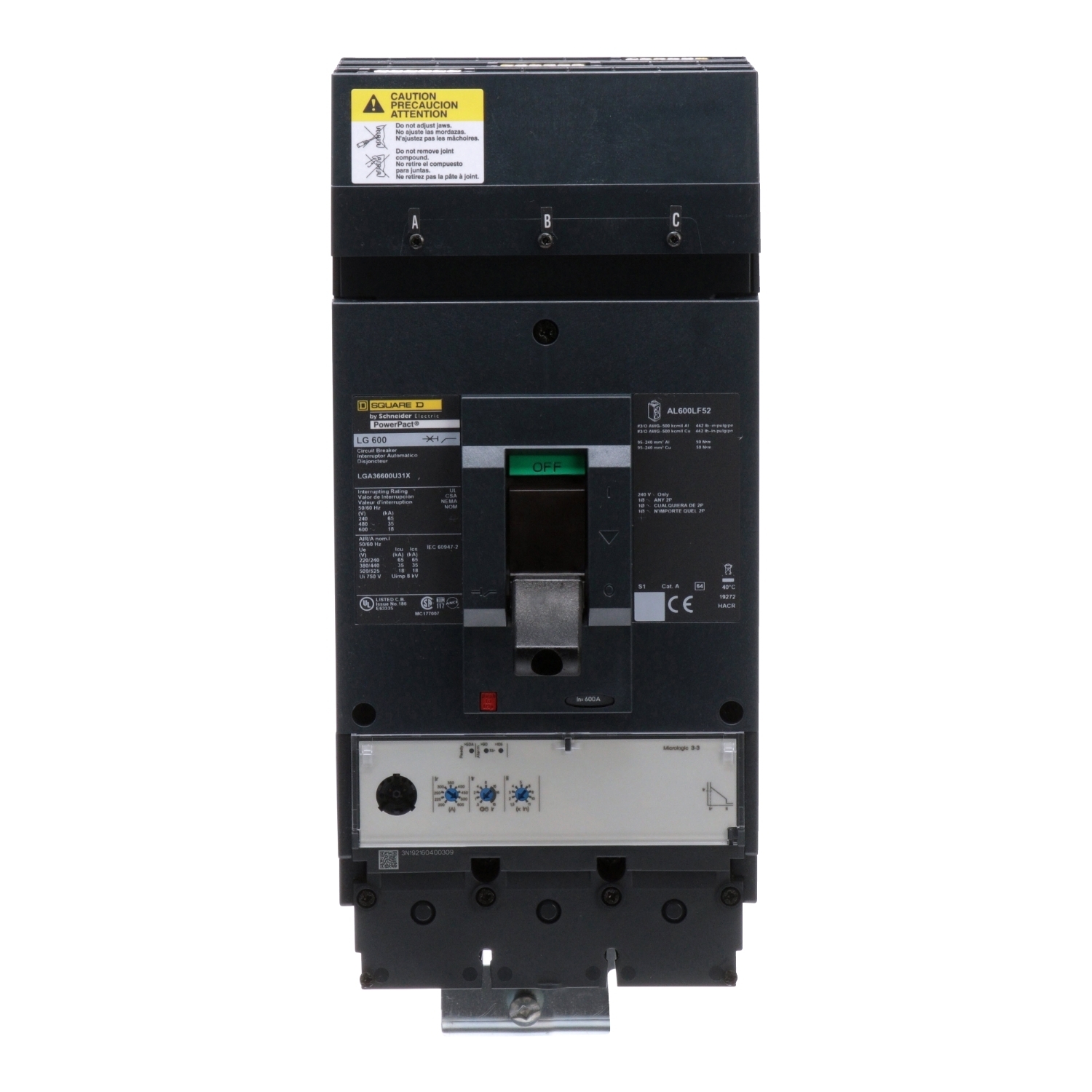

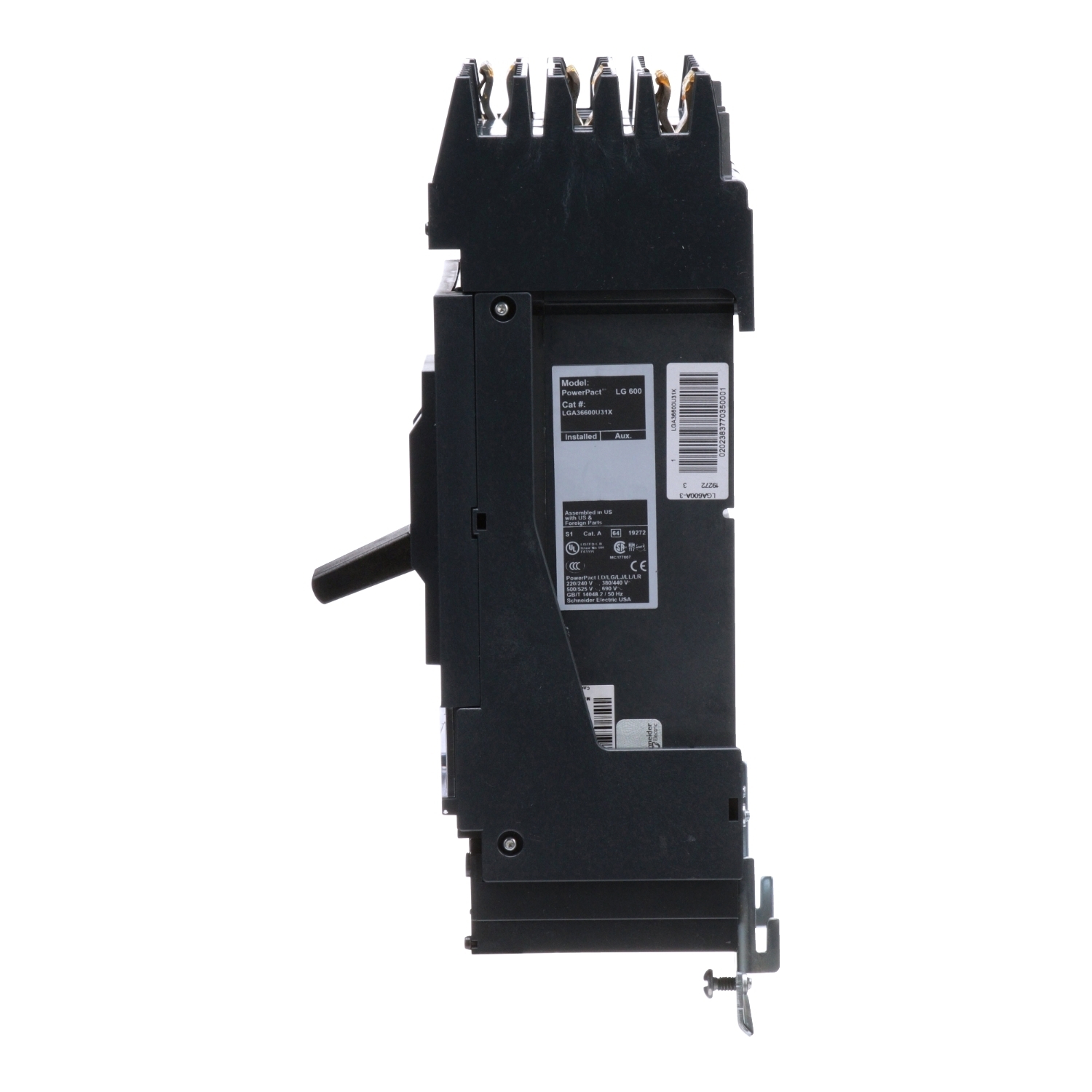

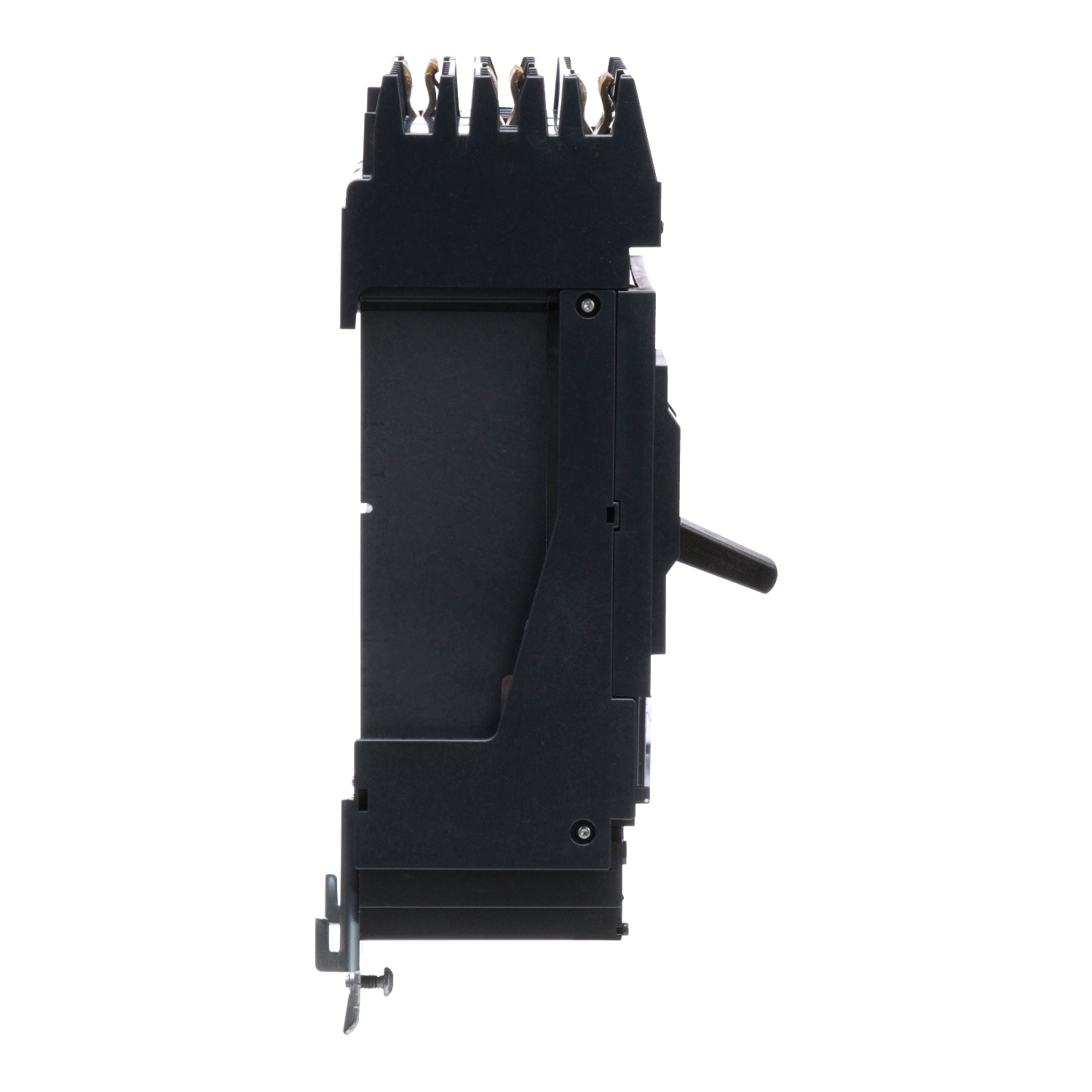

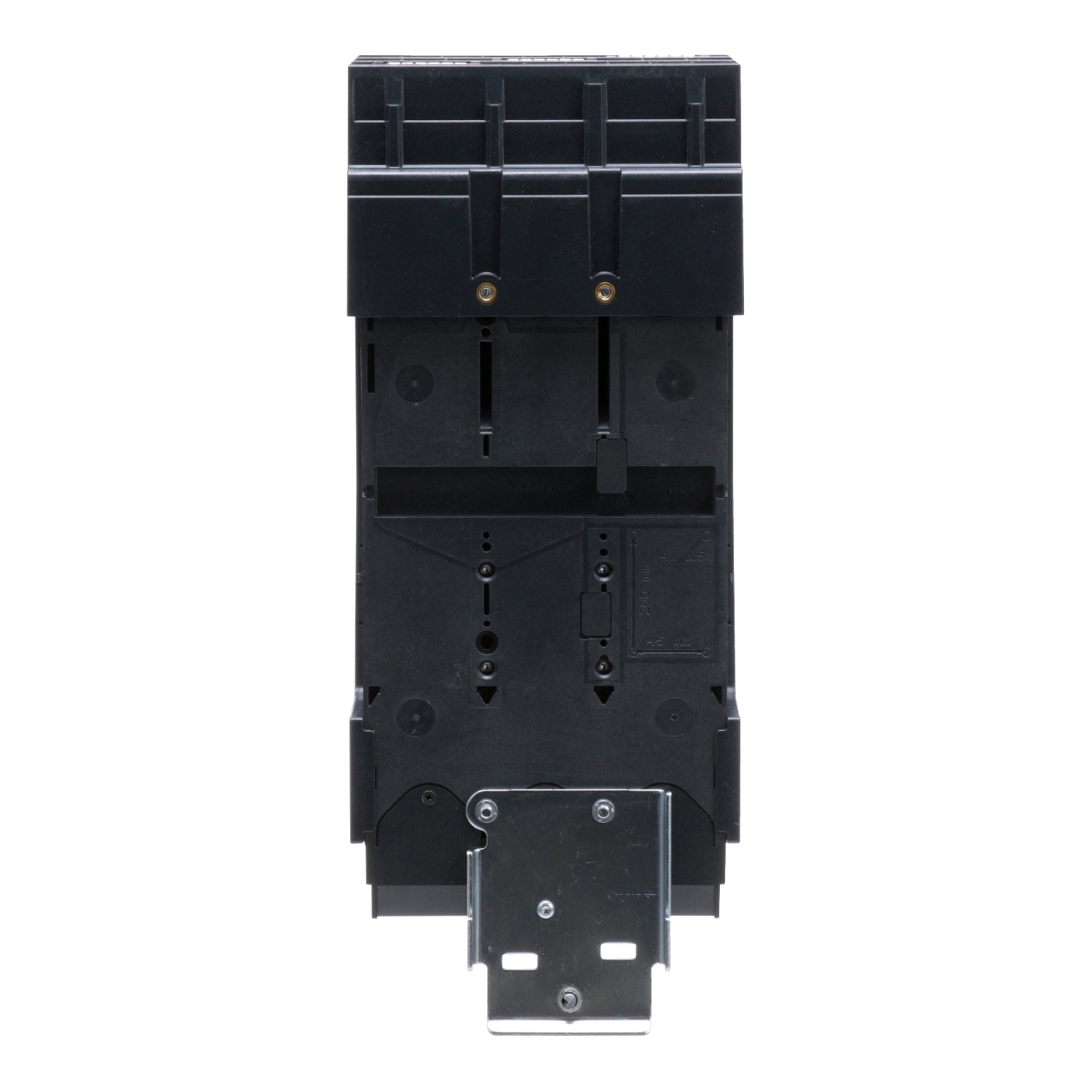

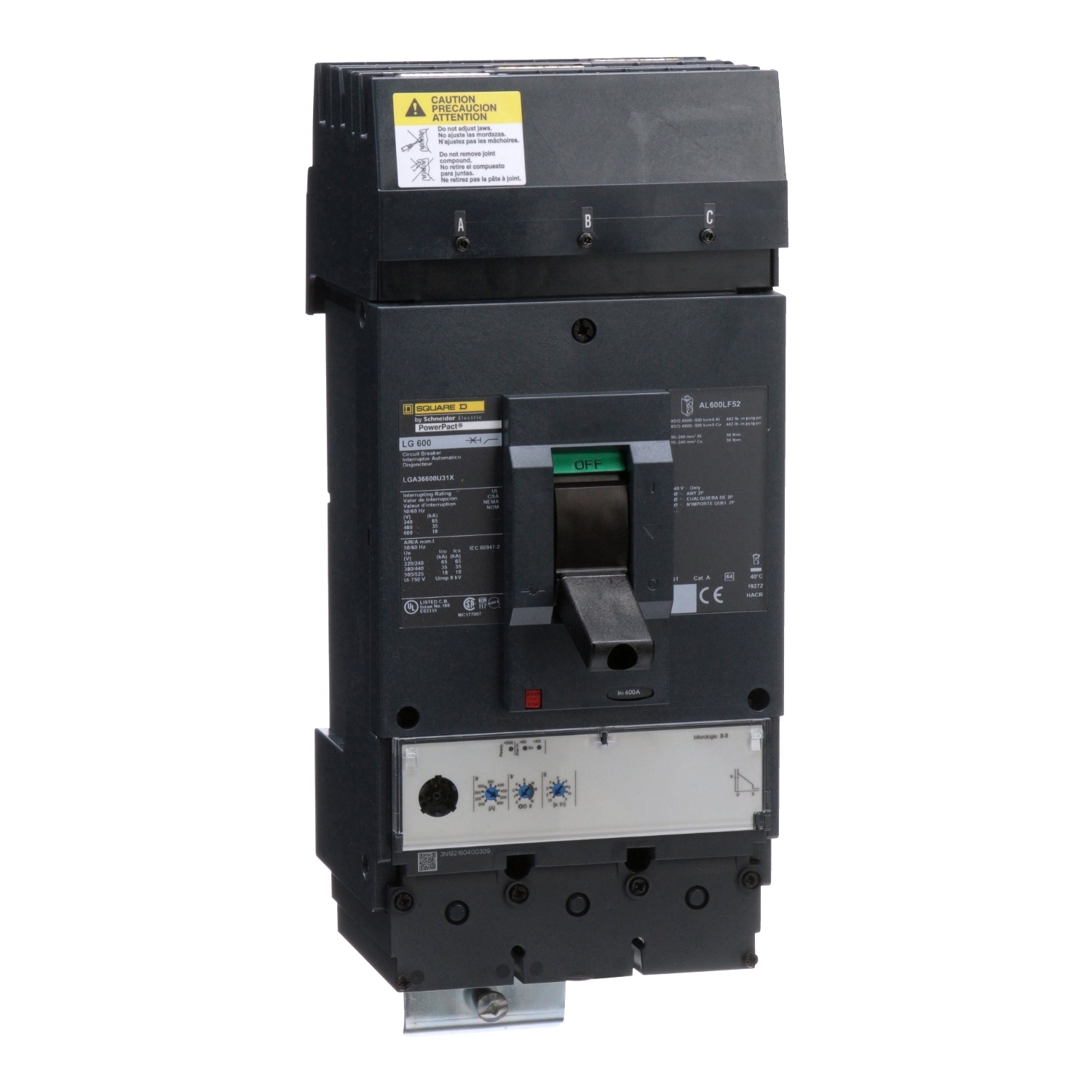

LGA36600U31X I-Line PowerPact L Current Limiter Standard Molded Case Circuit Breaker, 600 V AC, 600 A, 18/35/65 kA Interrupt, 3 Poles, Electronic Trip
- MFR:
- Schneider Electric
- MFR #:
- LGA36600U31X
- UPC:
- 785901989813
- Item #:
- 265003
LGA36600U31X I-Line PowerPact L Current Limiter Standard Molded Case Circuit Breaker, 600 V AC, 600 A, 18/35/65 kA Interrupt, 3 Poles, Electronic Trip
- MFR #:
- LGA36600U31X
- UPC:
- 785901989813
- Item #:
- 265003
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | LGA36600U31X |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | Black |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980586&lang=en-us |
| UPC | 785901989813 |
| GTIN | 00785901989813 |
