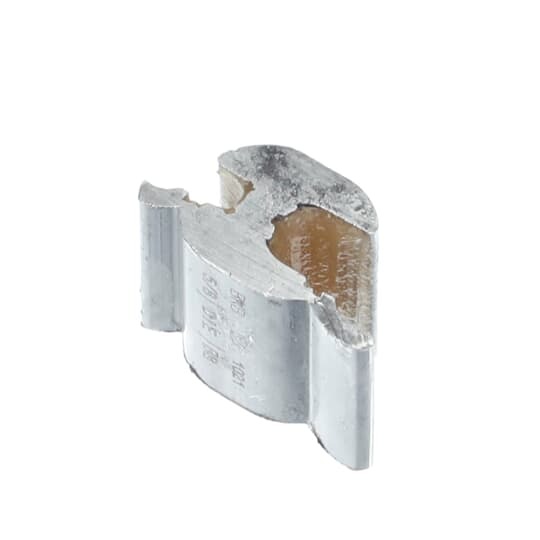

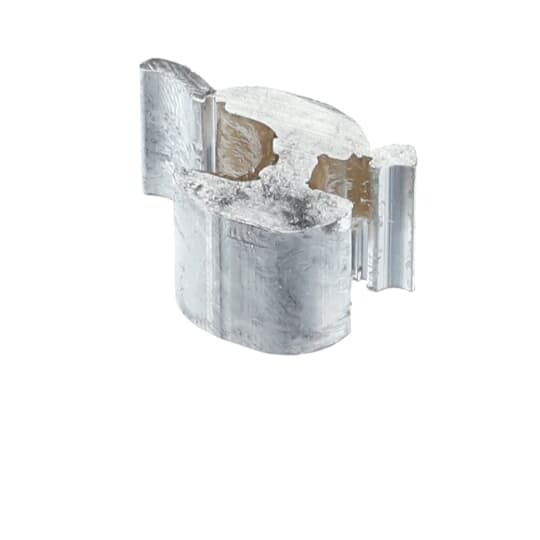

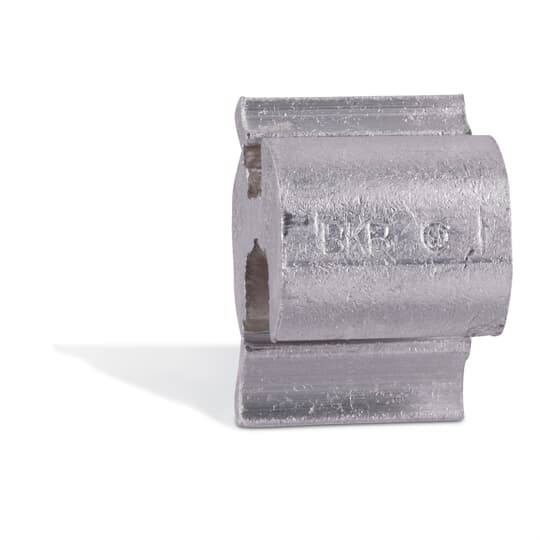

WR9 Blackburn WR Series Type H Wide Range Compression Tap Connector, Figure H Shape, 6 to 3 AWG ACSR, 6 to 2 AWG Stranded, 4 to 1 AWG Solid Main/Run, 8 to 14 AWG Stranded/Solid Tap, Aluminum
- MFR:
- ABB - Installation Products
- MFR #:
- WR9
- UPC:
- 783786100354
- Item #:
- 264231
WR9 Blackburn WR Series Type H Wide Range Compression Tap Connector, Figure H Shape, 6 to 3 AWG ACSR, 6 to 2 AWG Stranded, 4 to 1 AWG Solid Main/Run, 8 to 14 AWG Stranded/Solid Tap, Aluminum
- MFR #:
- WR9
- UPC:
- 783786100354
- Item #:
- 264231
Manuals & Documentation
| Catalog Number | WR9 |
| Manufacturer | ABB - Installation Products |
| Brand | BLACKBURN MECHANICAL |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors |
| Connection | Compression |
| Material | Aluminum |
| Number of Conductors | 2 |
| Special Features | Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area |
| Standard | RUS Accepted. Complies with ANSI C119.4 Specifications |
| UPC | 783786100354 |
| GTIN | 00783786100354 |
| Item Type | H-Type Compression Tap Connector |
| Size | Length 13/16 inch |
| Environmental Conditions | All Seasons / Conditions |
| Temperature Rating | up to 90 C |
| Wire Size | Main: #3 to #6 ACSR or #2 to #6 STR or #1 to #4 SOL AWG , Tap: #8 to #14 STR or #8 to #14 SOL AWGp: #8 to #14 STR AWG , #8 to #14 SOL AWG |
| Cross Reference Products | ABBInstall UB214|ABBInstall WR9|Burndy YPC2A8U|ESP S9|Kearney 4218U|NAED 13568|PennUnion KOR21|PU KOR22|ThomasBett UB214|ThomasBett WR9 |
