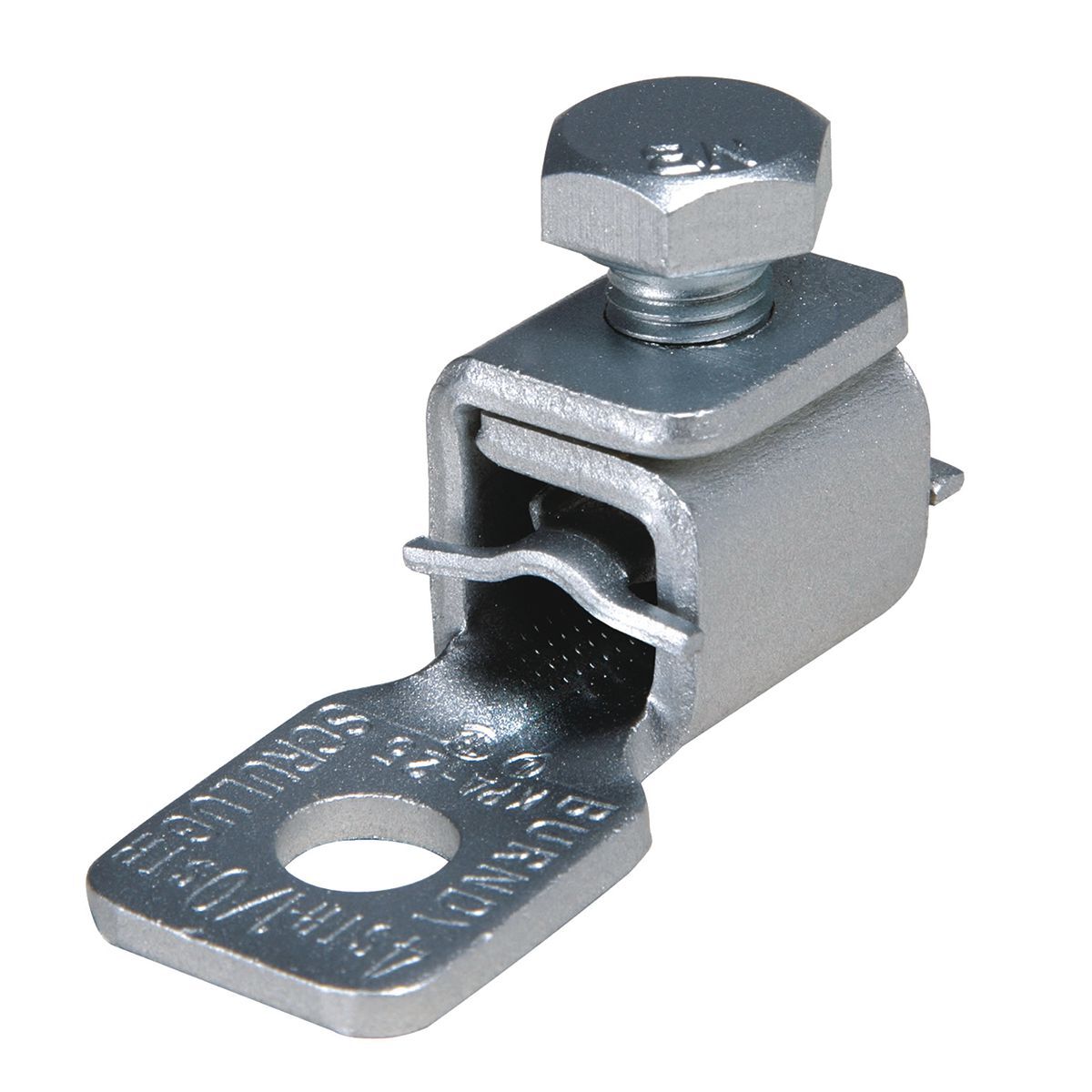

KPA25 Cable Terminal Lug, 4 to 1/0 AWG Copper Conductor, 5/16 in Stud, 1 Bolt Holes, Copper Alloy
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KPA25
- UPC:
- 781810354858
- Item #:
- 263361
KPA25 Cable Terminal Lug, 4 to 1/0 AWG Copper Conductor, 5/16 in Stud, 1 Bolt Holes, Copper Alloy
- MFR #:
- KPA25
- UPC:
- 781810354858
- Item #:
- 263361
Manuals & Documentation
| Catalog Number | KPA25 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications |
| Material | Copper |
| Special Features | Features: High Copper Alloy Tin-Plated Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications, The Tongue And Body Are A One-Piece Design, The Pressure Bar Equalizes Pressure Over The Conductor And Prevents The Screw From Cutting Into The Cable, Stud/bolt Size: 3/8 IN, Stud/bolt Hole Size: 5/16 IN, Set Screw Type: Slot Robertson, Dimension N: 0.41 IN, Installation Torque: 180 IN-LB, Length: 1.7 IN, Width: 0.75 IN, Height: 1.25 IN, Tongue Width : 0.62 IN, Dimension D: 0.81 IN, Dimension K: 0.33 IN, Dimension T: 0.1 IN |
| Standard | UL 486A-486B |
| UPC | 781810354858 |
| GTIN | 00781810354858 |
| Item Type | Bolted Lugs & Terminals |
| Cross Reference Products | CP-0 |
