SQUARE D

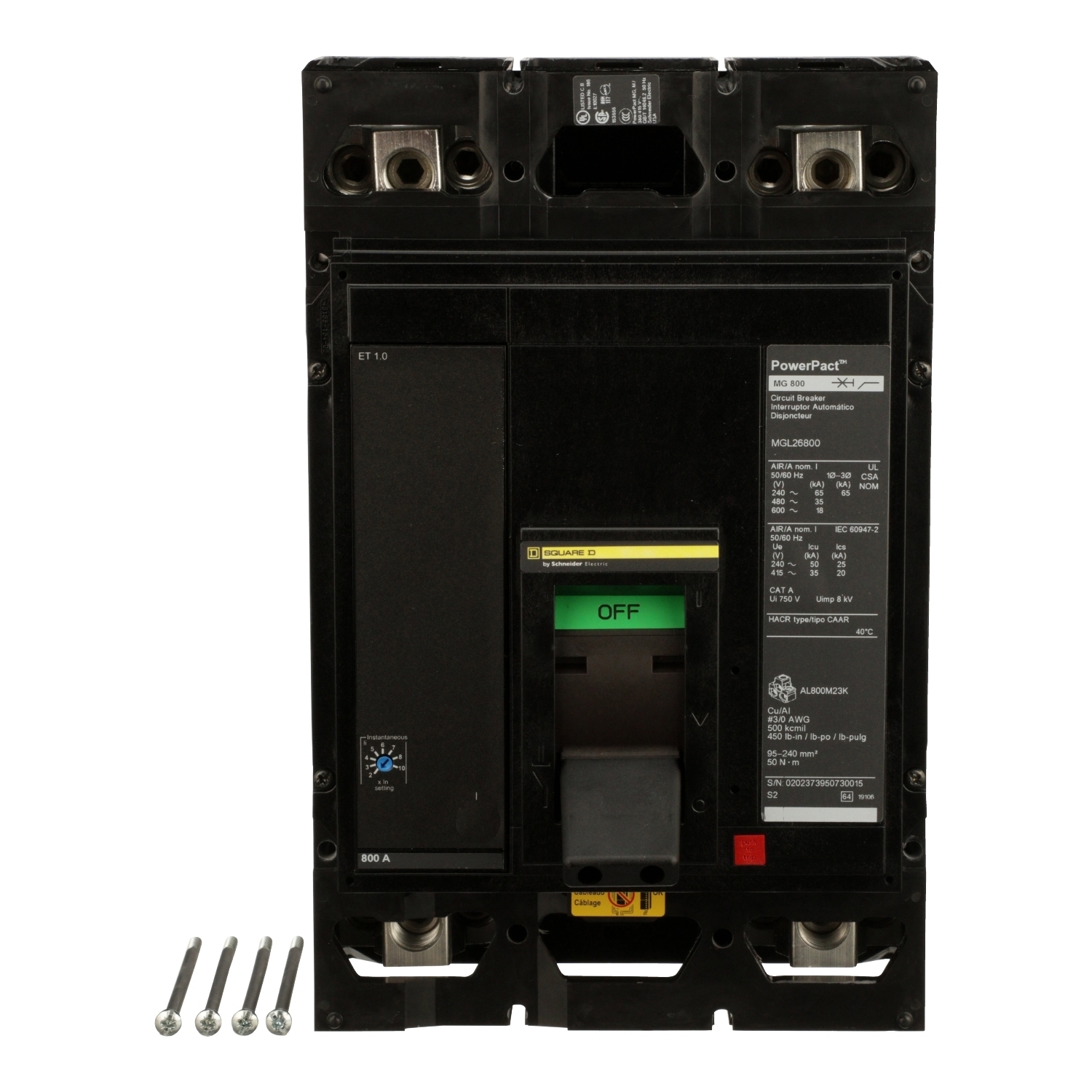

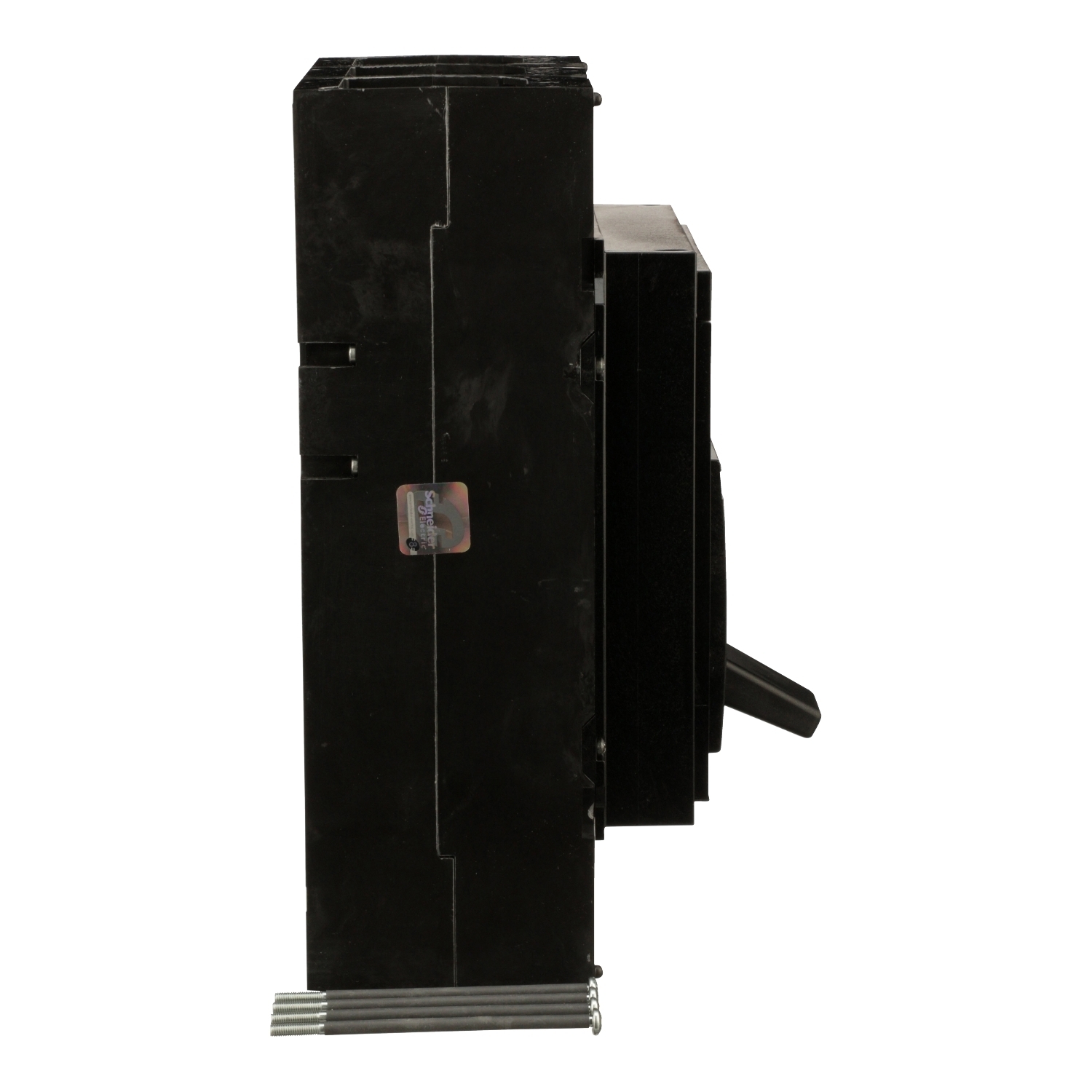

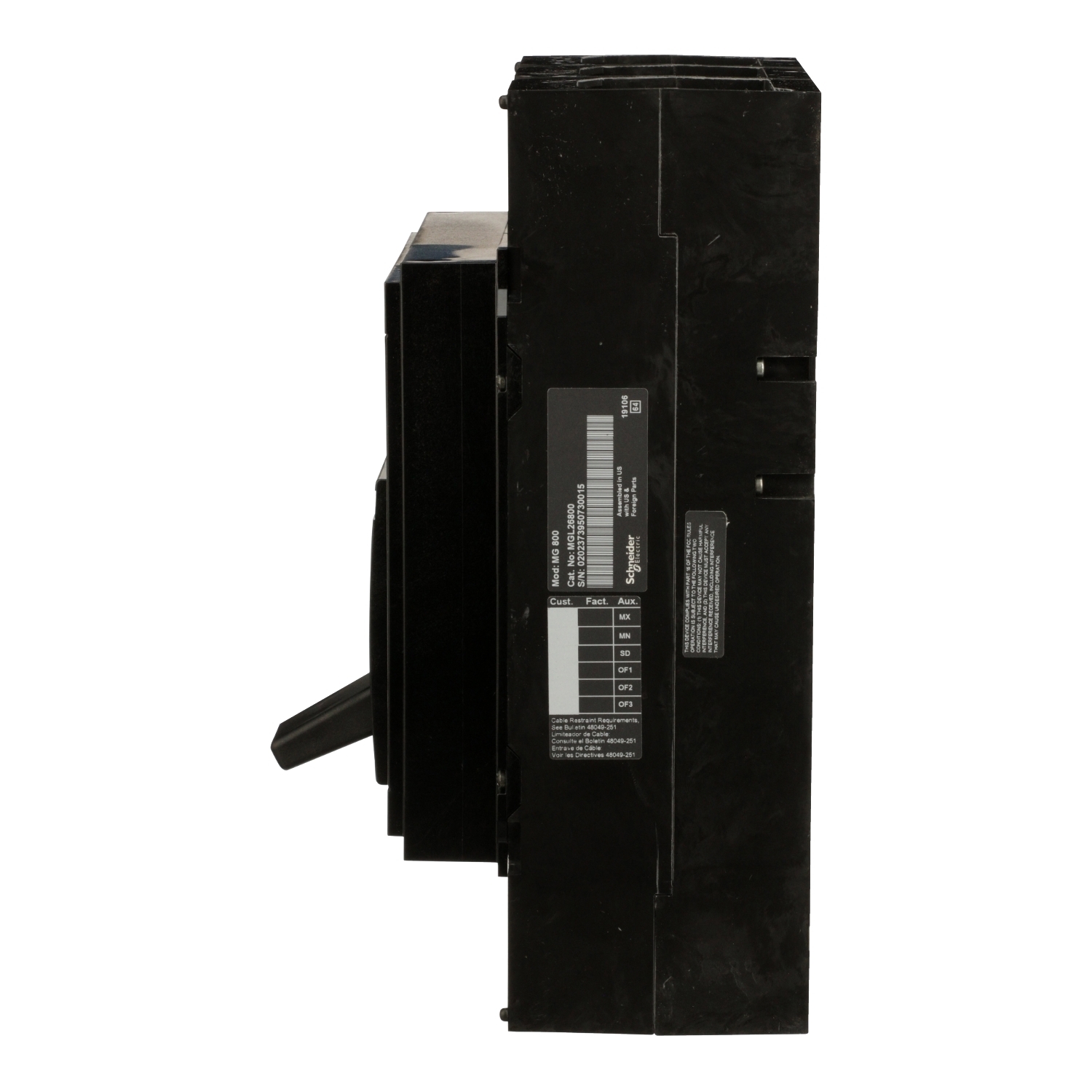

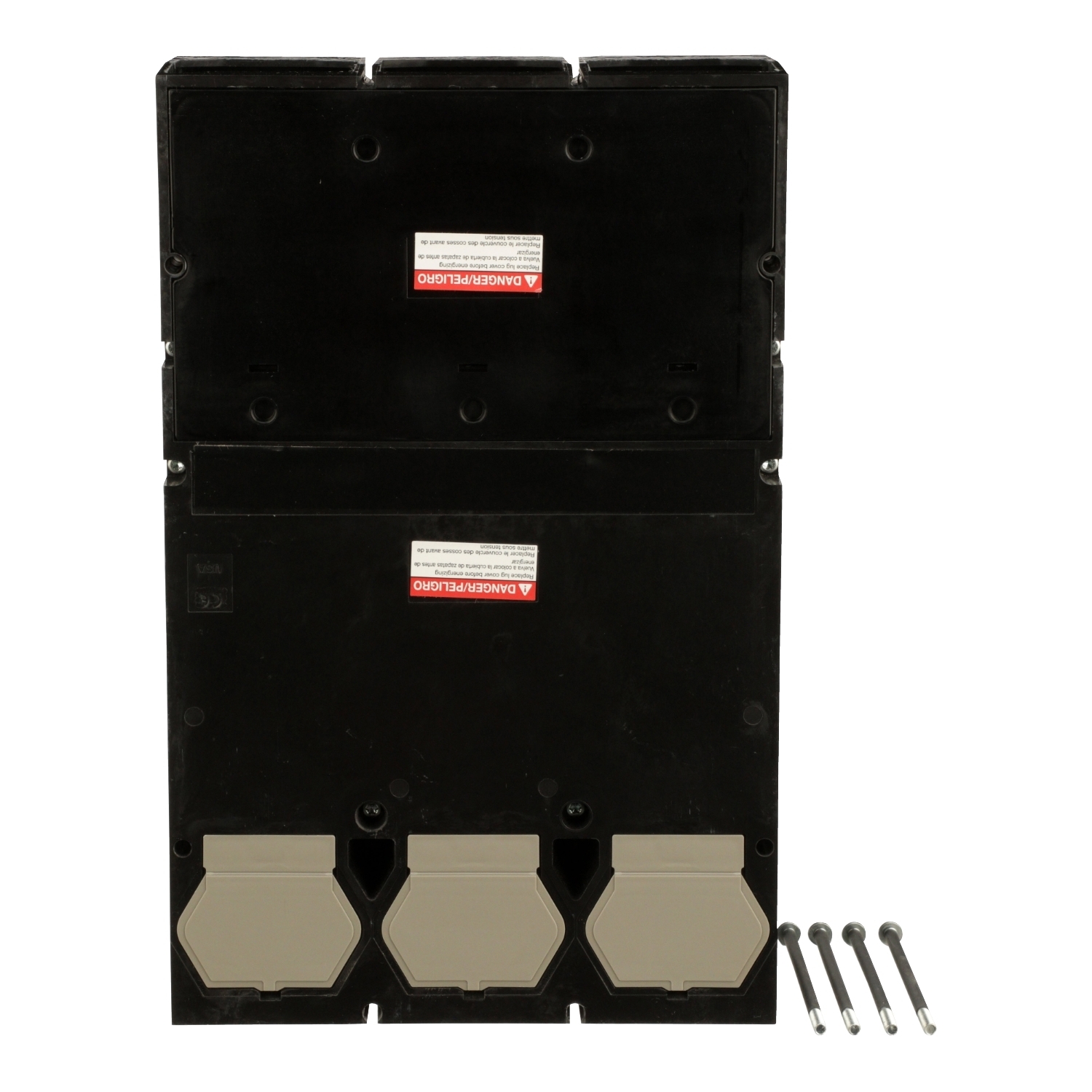

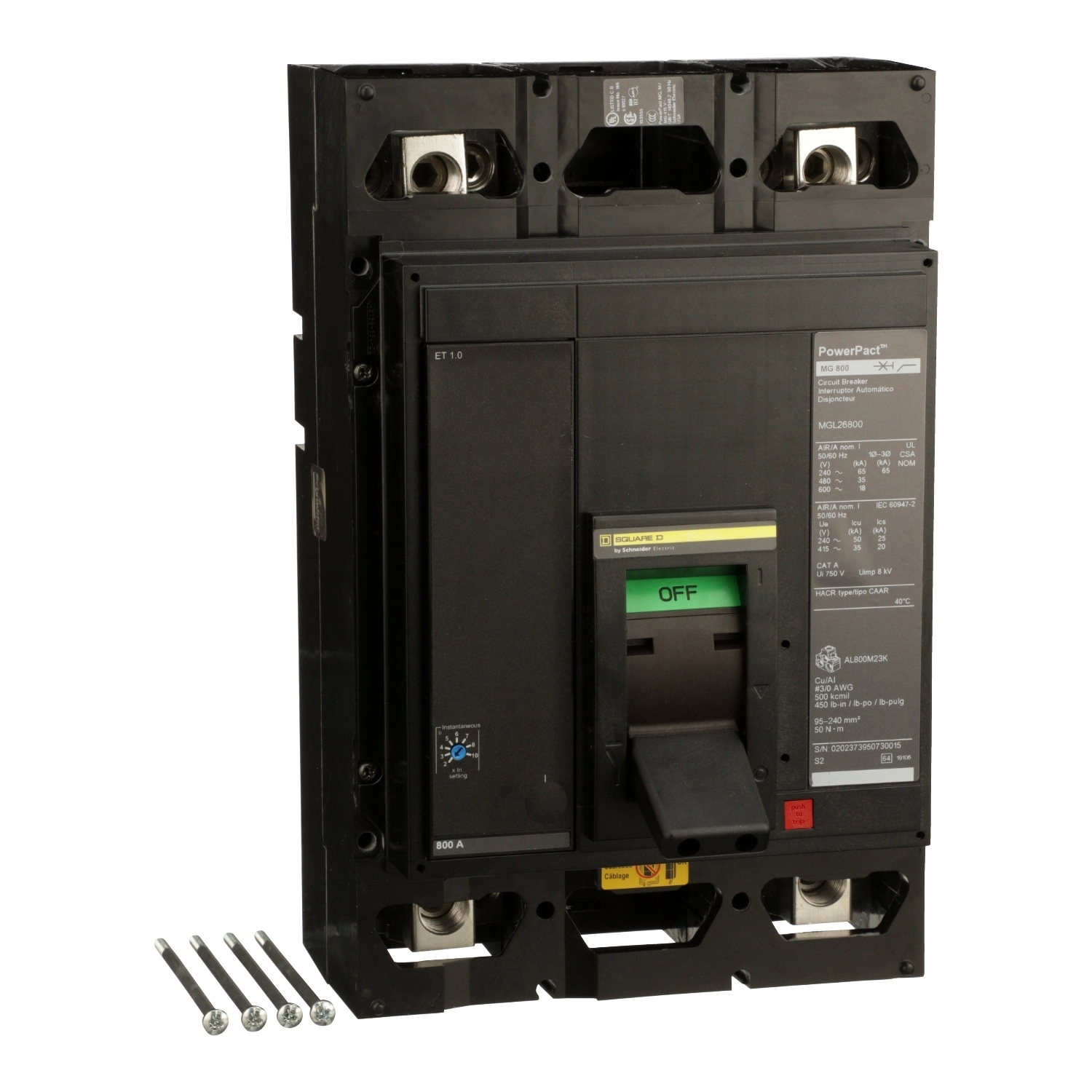

MGL26800 PowerPact 80% Rated Molded Case Circuit Breaker, 600 V AC/250 V DC, 800 A, 18/35/65 kA Interrupt, 2 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
MGL26800
UPC:
785901507628
Item #:
26328

PowerPacTM-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 800A, 2 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number MGL26800
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Color Black
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430891&lang=en-us
UPC 785901507628
GTIN 00785901507628
Width 8.27
Width UOM Inch
Height 12.86
Height UOM Inch
Depth 8.05 IN
