BURNDY

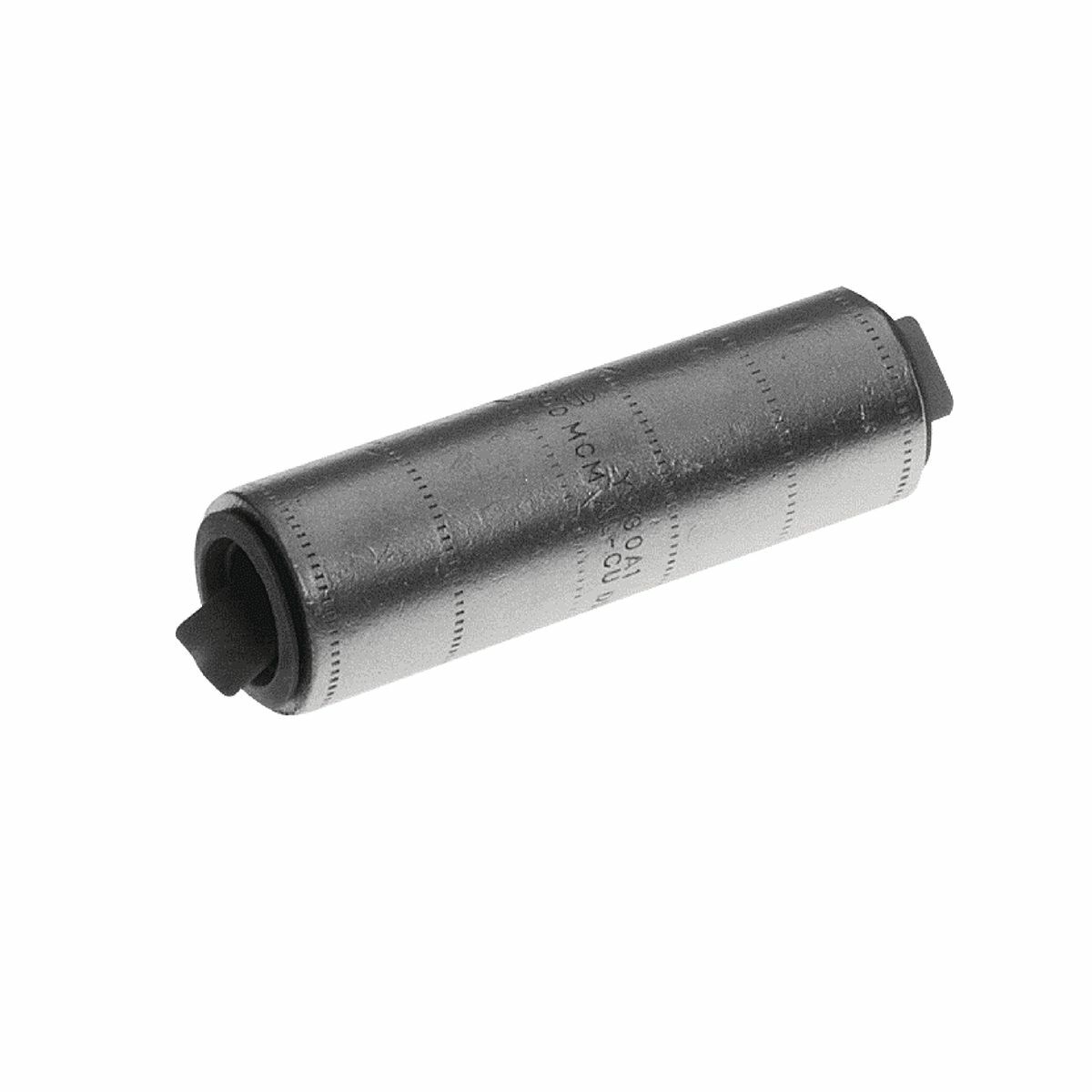

YS34A1 Type YS-A Standard Barrel Compression Butt Splice, 500 kcmil Conductor, 5 in L, Long/Standard Barrel, Aluminum, Pink

MFR:
Burndy, a Hubbell affiliate
MFR #:
YS34A1
UPC:
781810757550
Item #:
263019
Manuals & Documentation
Catalog Number YS34A1
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Splice
Finish Tin-Plated
Material ALUMINUM
Special Features Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing The PENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, UL Listed for Aluminum only, Dieless Tools (number Of Crimps): Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Color Code: Pink, Die Index: 300 Element A, Conductor Type: Stranded Aluminum Or Copper, Wire Strip Length: 2-5/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y75 Tool, U34ART Die, (4), Y46 Tool, U34ART Die With PUADP-1 Adapter, (4)
Standard UL 486A-486B
UPC 781810757550
GTIN 00781810757550
Item Type YS-A, Standard Barrel
Temperature Rating 194
Voltage Rating 35
Cross Reference Products ASN-500
