Discontinued
Panduit

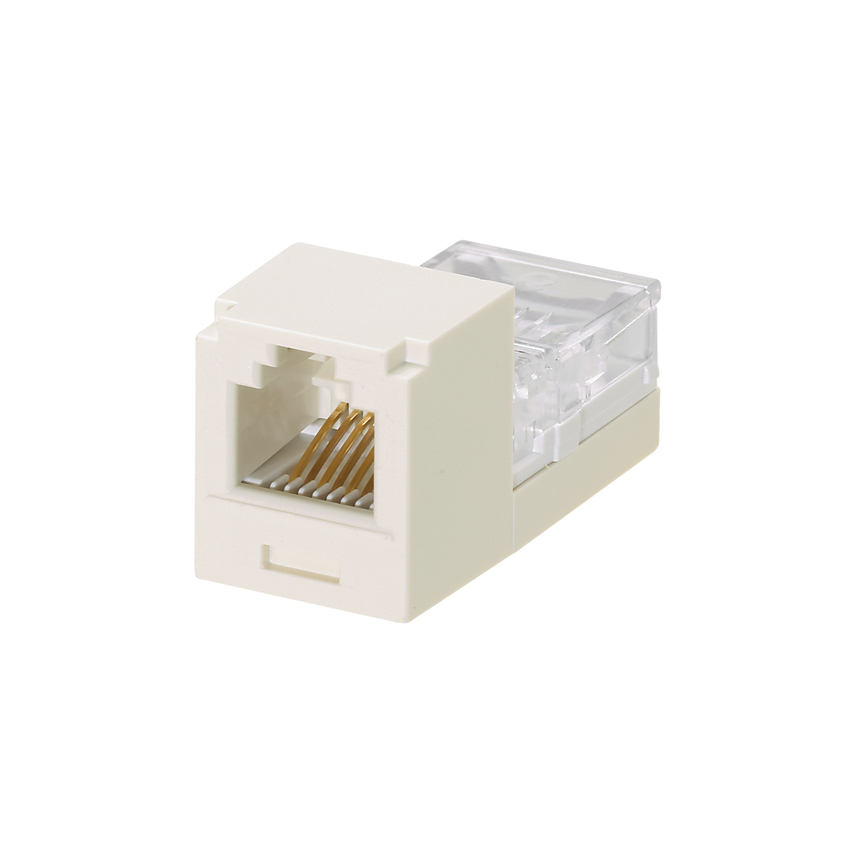

CJ66IWY PanNet Mini-Jack 1-Slot 6-Position 6-Wire Lead Frame Universal Unshielded Jack Module, Cat 3/Mini-Com Module, Surface Mount, 1 Port, ABS, Off-White

MFR:
Panduit
MFR #:
CJ66IWY
UPC:
074983035212
Item #:
262468

The Mini-Com Cat 3 UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Off White.

Manuals & Documentation
Catalog Number CJ66IWY
Manufacturer Panduit
Brand Panduit
Country of Origin China
Made in USA No
Application Unshielded
Cable Entry T568A/T568B
Color Off White
Material ABS
Standard Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
UPC 074983035212
GTIN 00074983035212
Item Type Jack Module
Width 0.61
Width UOM Inch
Depth 1.37 IN
