Lutron

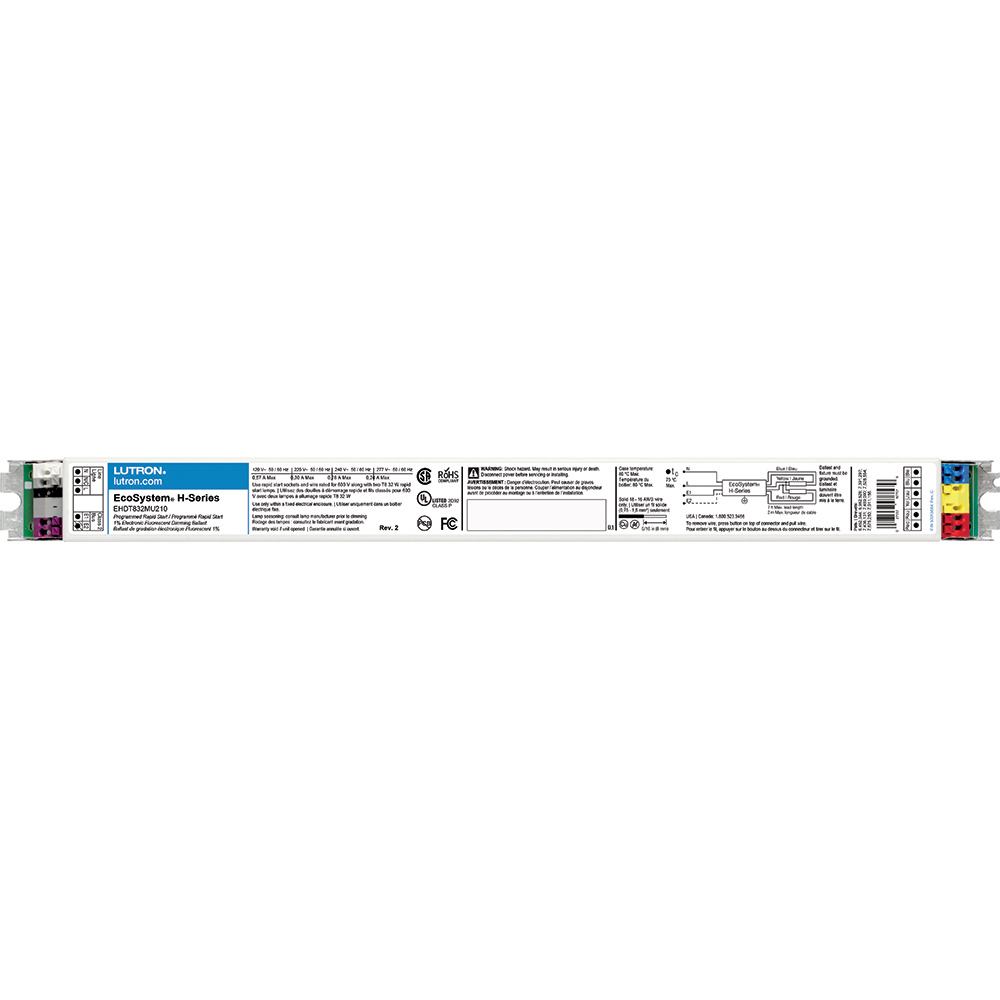

EHDT832MU210 EcoSystem M-Type Case Architectural Style Universal Dimming Ballast, T8 Lamp, 32 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor

MFR:
Lutron Electronics
MFR #:
EHDT832MU210
UPC:
027557977579
Item #:
262425
Manuals & Documentation
Catalog Number EHDT832MU210
Manufacturer Lutron Electronics
Brand Lutron
Application Lighting Control
Color White
Frequency Rating 50/60 HZ
Lamp Type T8/U-Bend fluorescent
Mounting Fixture
Special Features Digitally addressable ballasts that provide a low-cost, flexible solution for any space in any application. Industry leading, continuous, flicker-free dimming from 100 to 1 % or less to meet the needs of the most demanding applications. Individual control with the EcoSystem Digital Link eliminates the need to rewire, reduces design time, and provides a scalable solution from a small area to an entire building. Compatible with Energi Savr Node with EcoSystem and Grafik Eye QS control units, PowPak dimming module with EcoSystem units, and Quantum software, allowing for integration into an existing or planned EcoSystem lighting control solution. Programmed rapid start design preheats lamp cathodes before applying full arc voltage to ensure full-rated lamp life while dimming and cycling. 100 % performance tested and burned in at factory. Lamps turn on to any dimmed level without going to full brightness. Low harmonic distortion throughout the entire dimming range maintains power quality. Frequency of operation ensures that ballast does not interfere with infrared devices operating between 38 and 42 kHz. Maintains consistent light output for different lamp lengths, ensuring fixture-to-fixture uniformity. Ultra-quiet operation. Protected from miswires of any input power to control lead, or from lamp leads to each other and/or ground. End-of-lamp-life protection circuitry ensures safe operation throughout entire lamp life. Non-volatile memory restores all ballast settings after power failure. 100 % compatible with all EcoSystem digital controls. Custom ballast factors available for UL or CSA listed products. Design tool and specifications can be found at www.lutron.com/ballasttool.
Standard UL, CSA, Class P thermal protected, ANSI, FCC
UPC 027557977579
GTIN 00027557977579
Item Type Ballast
Length 14.13
Length UOM Inch
Width 1.18
Width UOM Inch
Height 1
Height UOM Inch
Thermal Protection Class P
Voltage Rating 120/240/277
Wattage 32 W
Power Factor Greater than 0.95
