SQUARE D

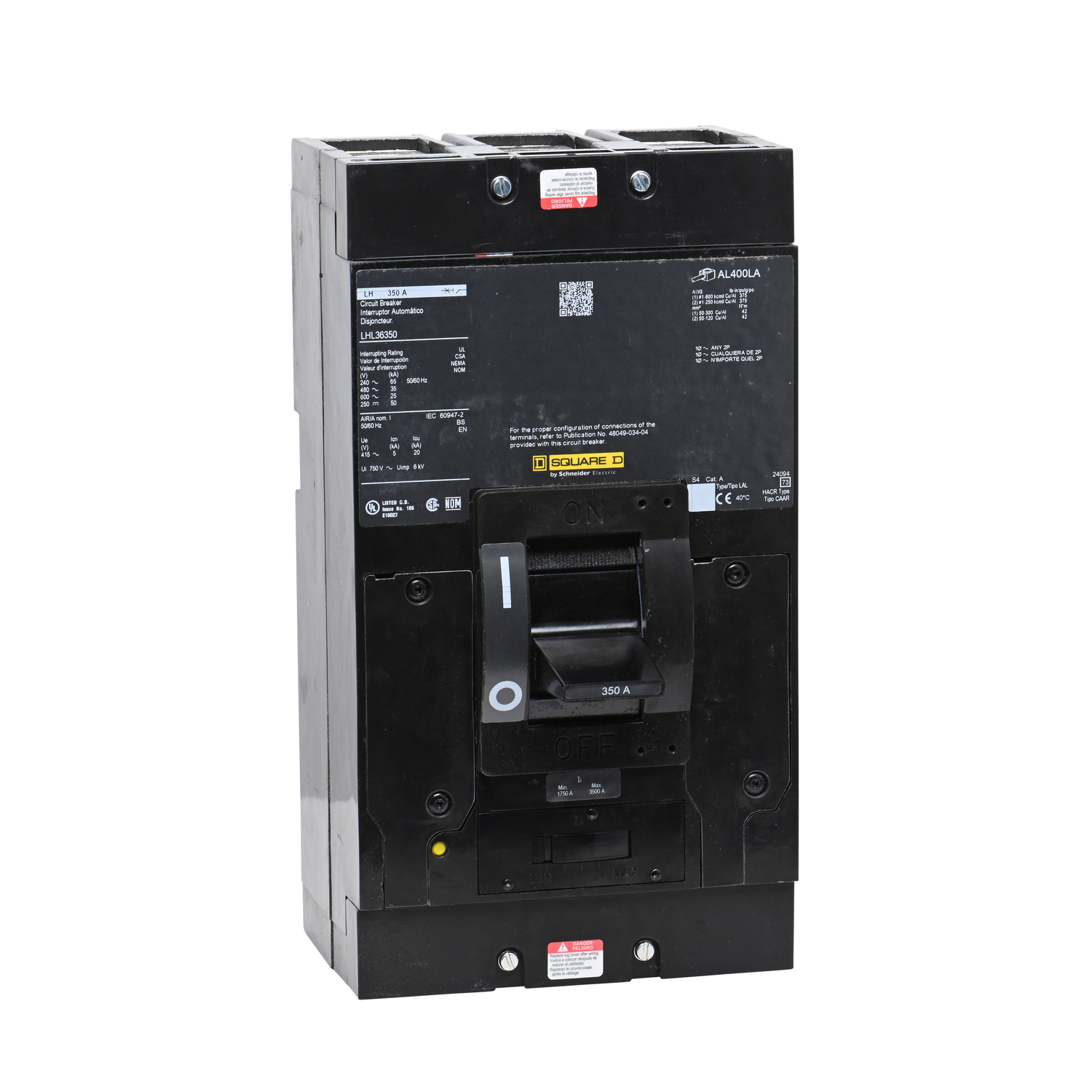

LHL36350 Molded Case Circuit Breaker, 600 V AC/250 V DC, 350 A, 250 VDC/600 VAC/50 kA at 125 VDC/50 kA at 250 VDC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
LHL36350
UPC:
785901563280
Item #:
2618

Square D LH molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LH circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LH molded case circuit breaker is a 3 pole unit mount breaker, 350A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 25kA for 600VAC and 50kA for 250VDC. LH breakers are UL 489, CSA, IEC certified.

Manuals & Documentation
Catalog Number LHL36350
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Lugs, load;lugs, line
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430353&lang=en-us
UPC 785901563280
GTIN 00785901563280
Item Type Circuit breaker
Width 6.0
Width UOM Inch
Height 11.0
Height UOM Inch
Depth 5.84 IN
Trip Type Thermal-magnetic
