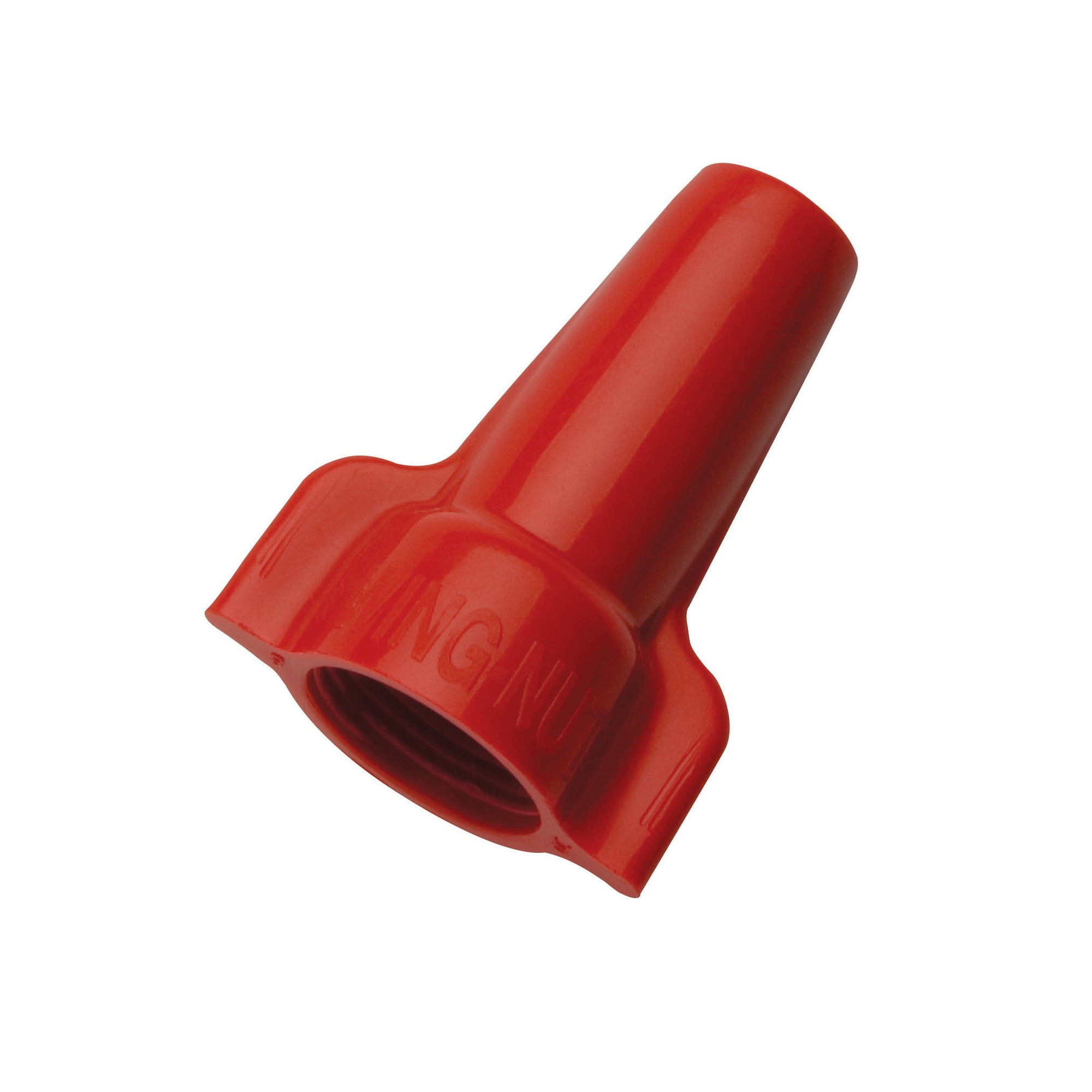

30-852 Wing-Nut Wire Connector, Model 452, Red, Barrel of 25000

MFR:
Ideal Industries
MFR #:
30-852
UPC:
783250308521
Item #:
261601

Largest range in the Industry - from 2 #18 to up 4 #10High-leverage, contoured wing provides superior torque on every twistWide range, live-action spring handles small combinations and expands to accommodate large combinations as you need itCopolymer shell expands for smooth, progressive tightening providing dependable connectionsRemovable for repeat usage on same size or larger combinationsMore power with every twist.The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.

Manuals & Documentation

Features

  • Specially designed contour wings provide a secure grip for extra leverage
  • Live action Spring expands to accept wire shape abd size with no pre-twisting required
  • Square wire spring threads directly onto conductors for fast, secure connections
  • Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection
  • Togh UL 94V-2 flame-retardant shell rated at 105 deg c(221 deg F)
  • UL Listed To 486C And CSA Certified To C22.2 #188
  • Comply With Federal Specification W-S-610E
  • Flammability Rating: UL94V-2
Catalog Number 30-852
Manufacturer Ideal Industries
Brand Ideal
Country of Origin United States
Made in USA Yes
Application Insulating or Joining 2 or more conductors
Color Red
Conductor Range 18 - 8 AWG, 18/2 AWG Min, 10/4 AWG MAX
Material Flame-retardant polypropelene
Number of Conductors 2, 4
Standard CSA, UL Listed
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 783250308521
GTIN 00783250308521
Item Type Twist-On
Environmental Conditions Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
Voltage Rating 600
