BURNDY

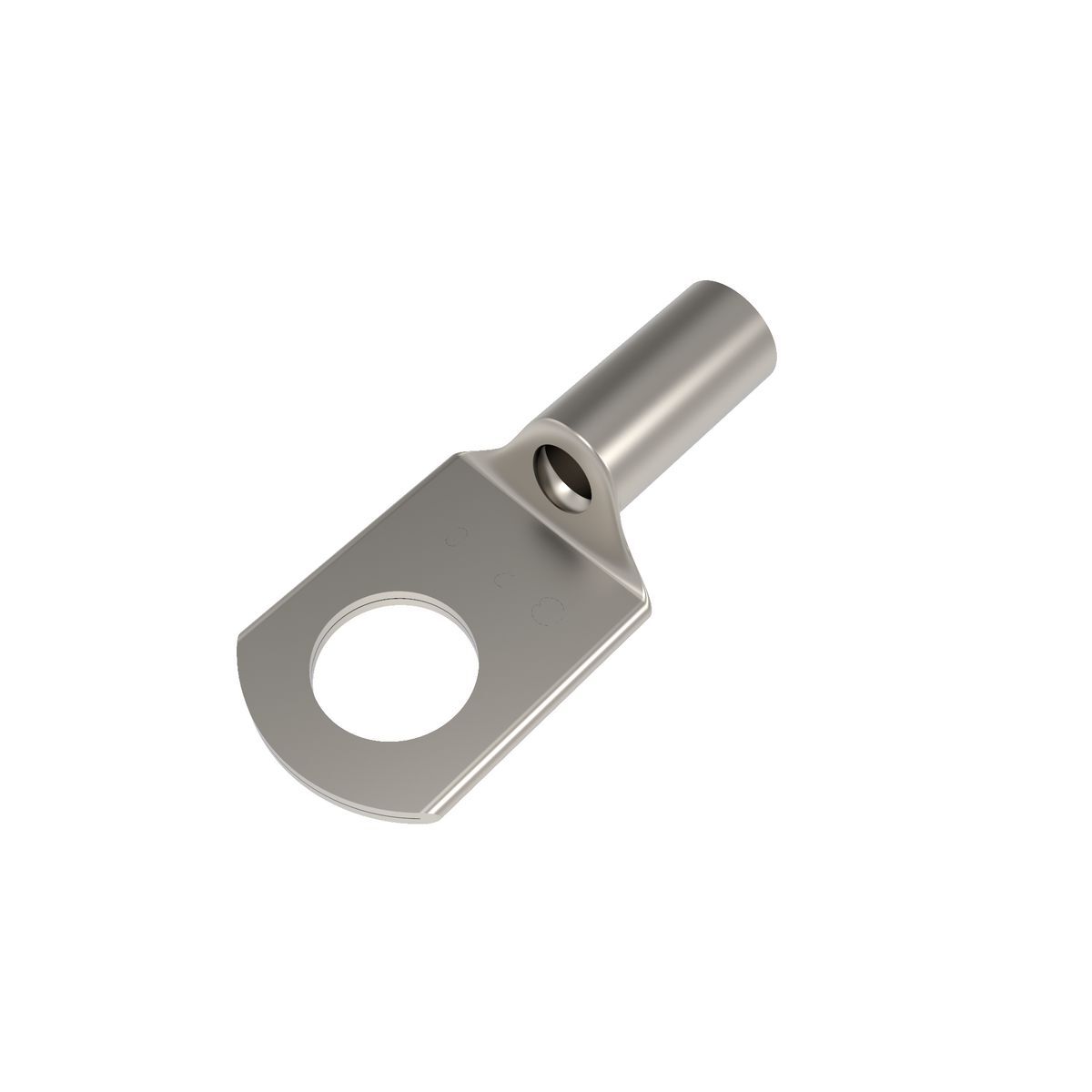

YAV10BOX YAV 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Window, 12 to 10 AWG Solid/Stranded Copper Conductor, Die Code: 2, #8 to #10 Stud, Electro-Tin Plated Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YAV10BOX
UPC:
781810541500
Item #:
260986
Manuals & Documentation
Catalog Number YAV10BOX
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance
Material Copper
Special Features Features: Seamless uninsulated compression heavy duty ring tongue terminal. HYLUG Type YAV is a seamless, heavy duty uninsulated compression ring tongue terminal made from pure electrolytic copper tubing for use on copper commercial (Code) cable, Type AN aircraft cable and extra flexible conductors. Its seamless design also accommodates solid conductors. Double thick tongue provides a strong connector for demanding applications requiring high reliability. Applications include: industrials, hospitals, electric utilities, aircraft, shipboard and marine, steel mills, computers, mining equipment and other equipment subject to vibration. HYLUG Type YAV provides maximum conductivity, low resistance and excellent ductility. Seamless tubular crimp barrel has no seams to split for a very high quality electrical connection. Extra copper material assures the compression connector operates cooler than the conductors it connects. Internally bevelled barrel provides easy cable entry, especially for flexible conductors. Inspection hole provides visual check for proper conductor insertion. Nickel plating available, add -NK suffix.
Standard UL467;Military Specified (Mil-Spec)
UPC 781810541500
GTIN 00781810541500
Item Type Ring Tongue
