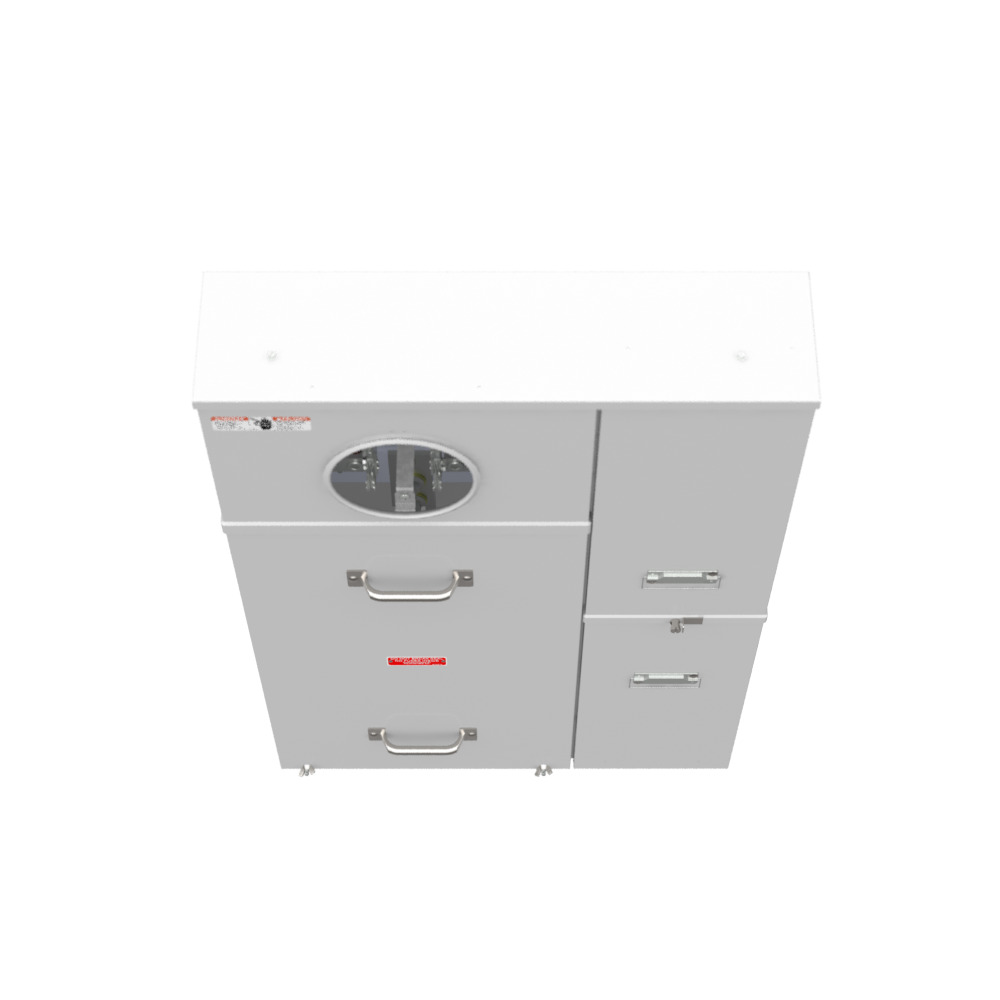

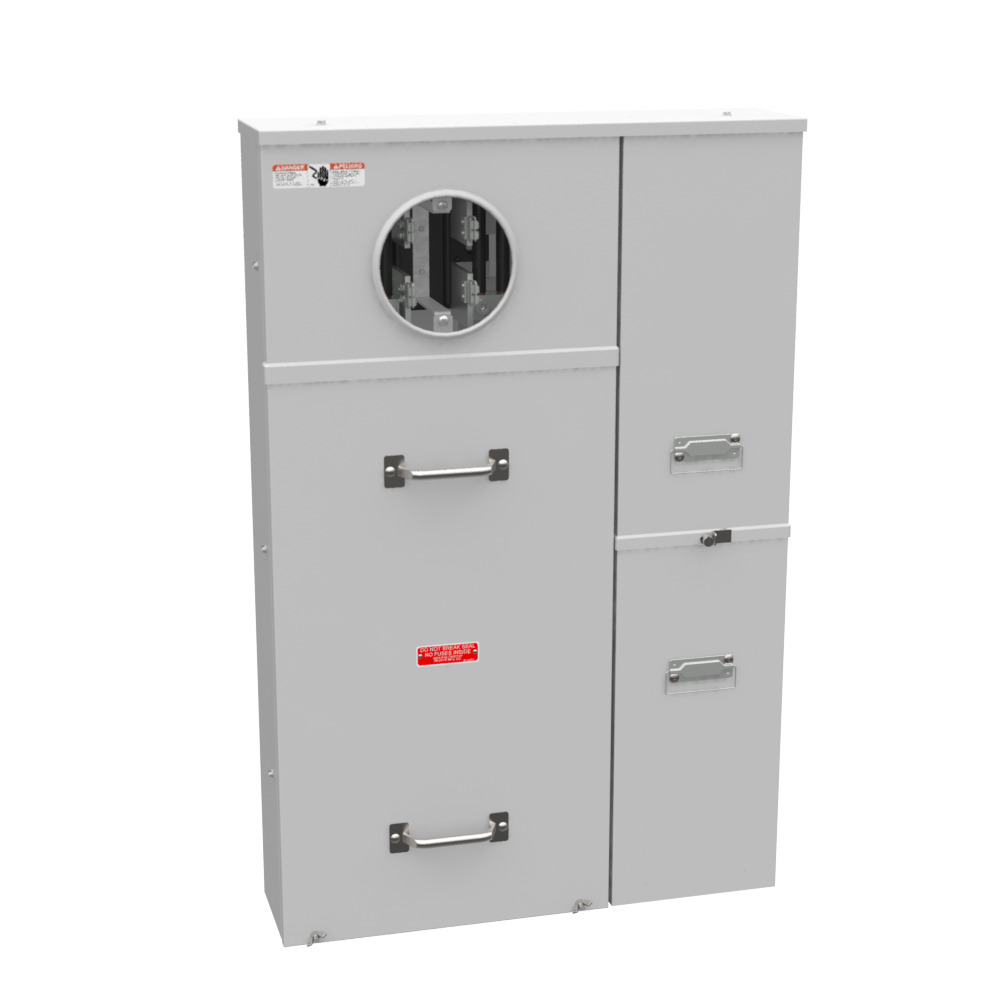

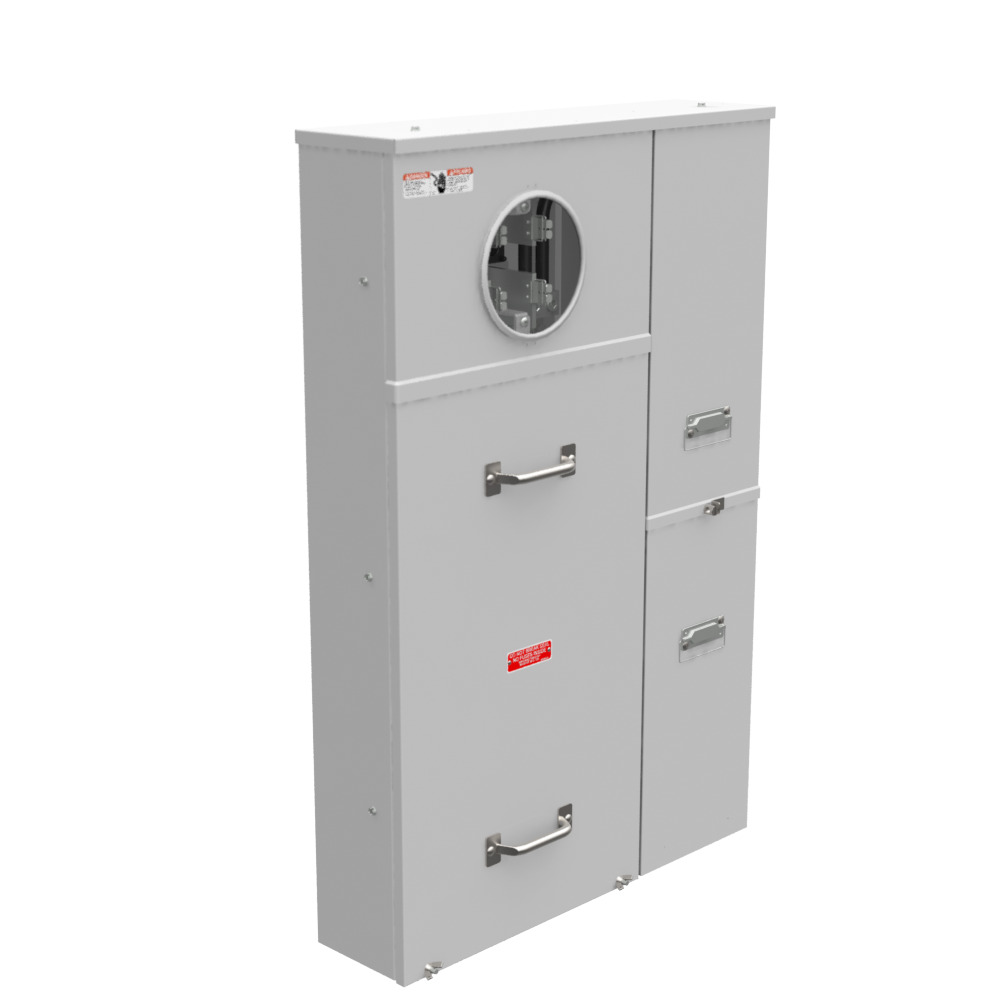

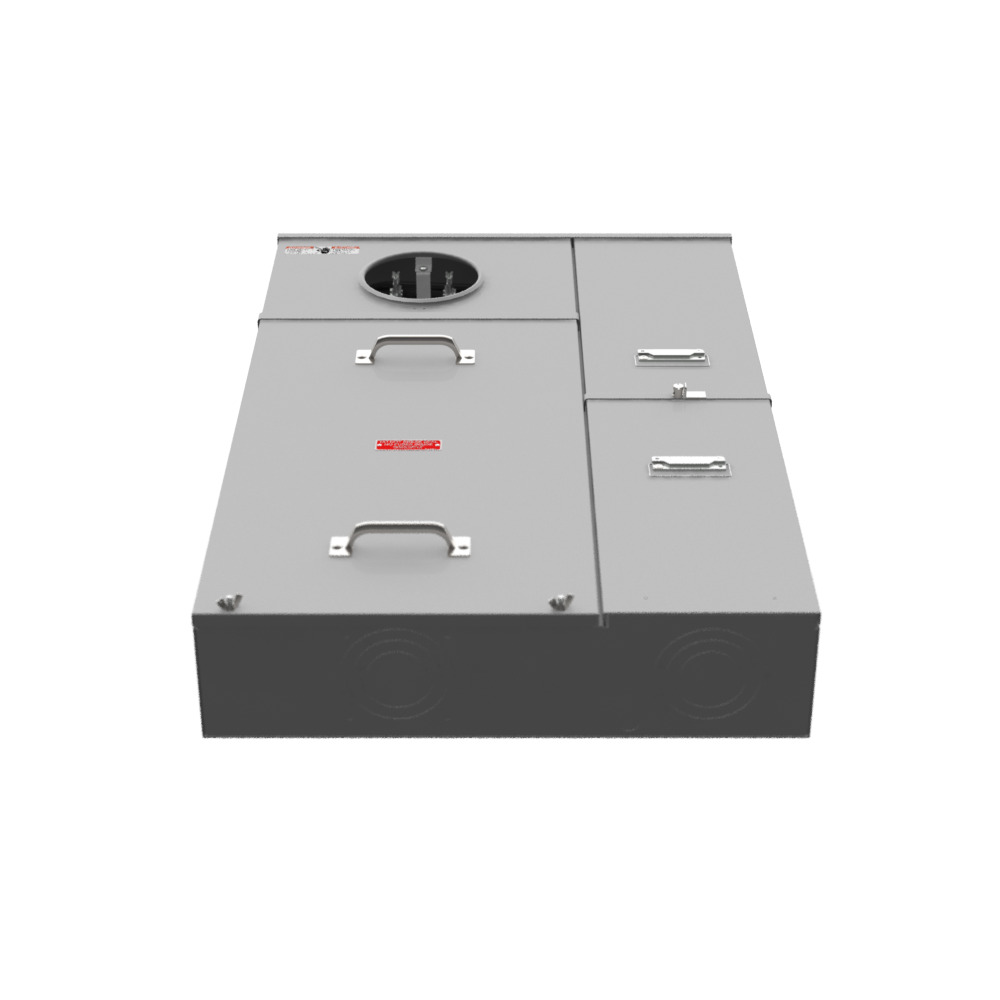

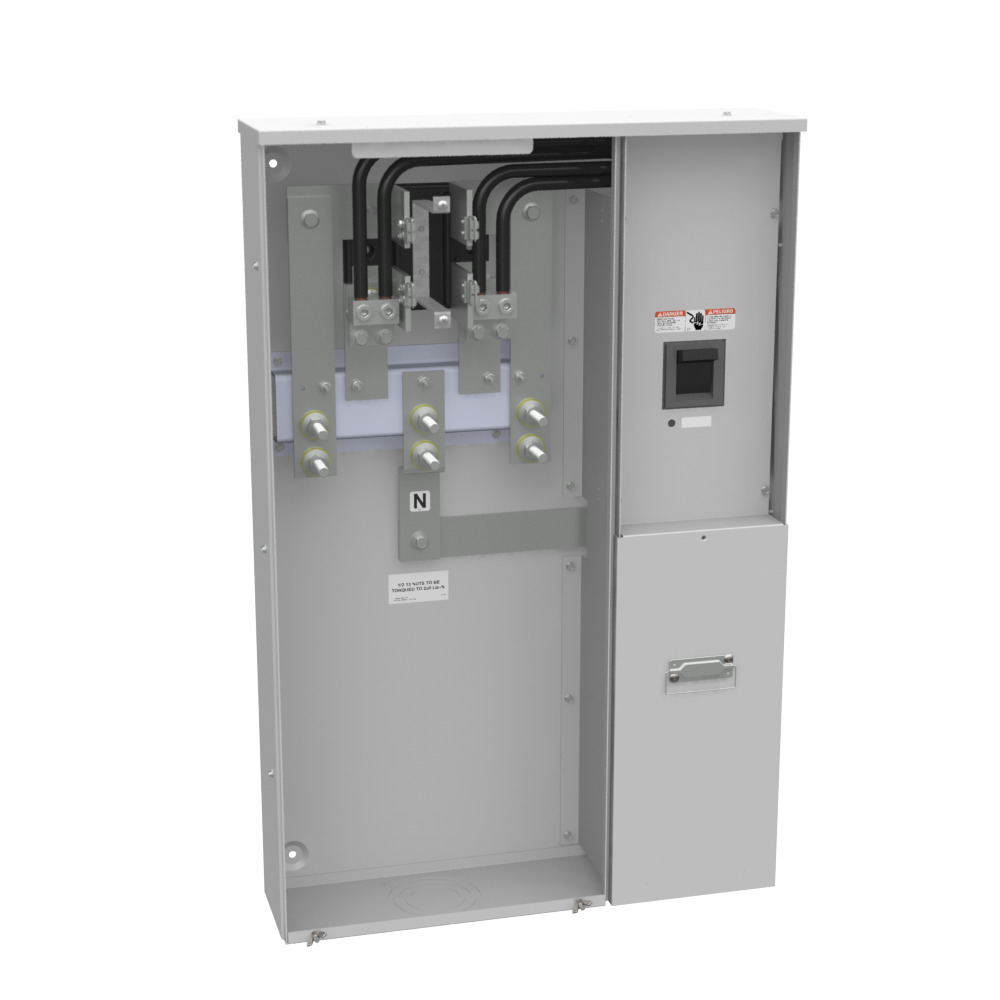

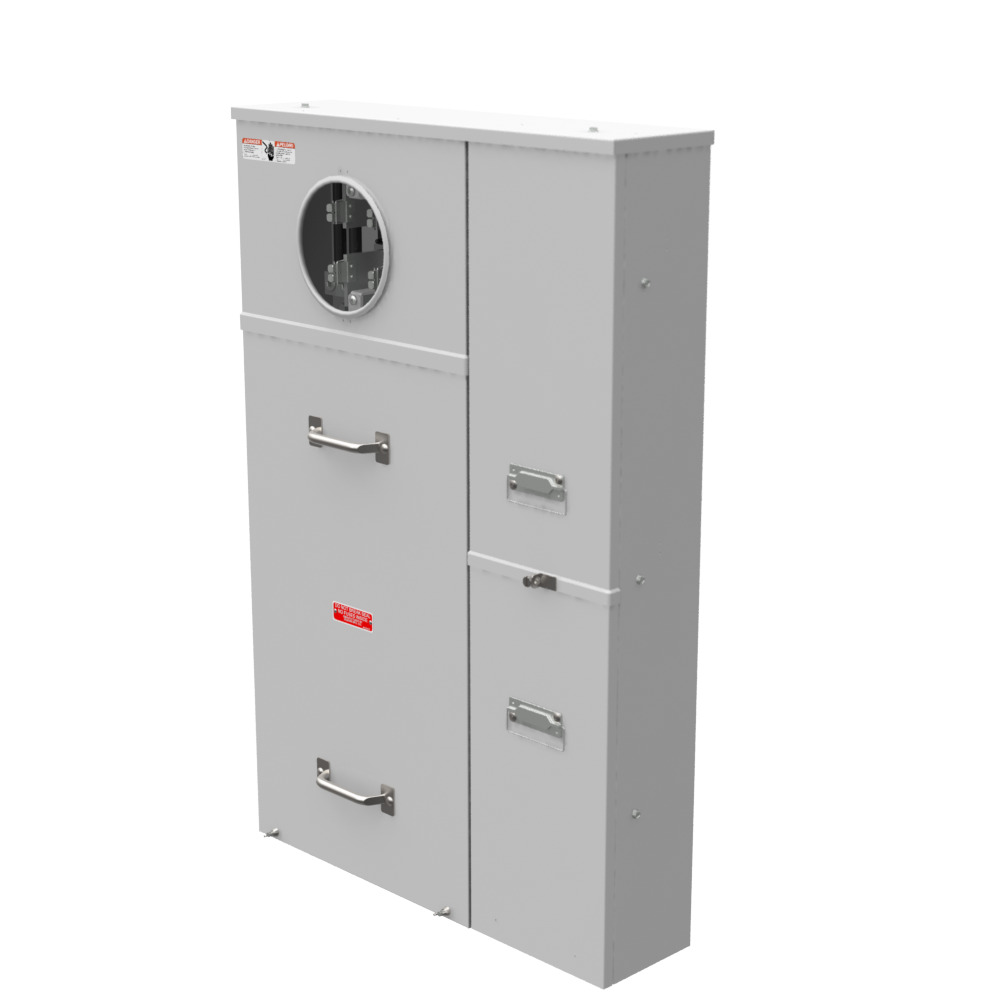

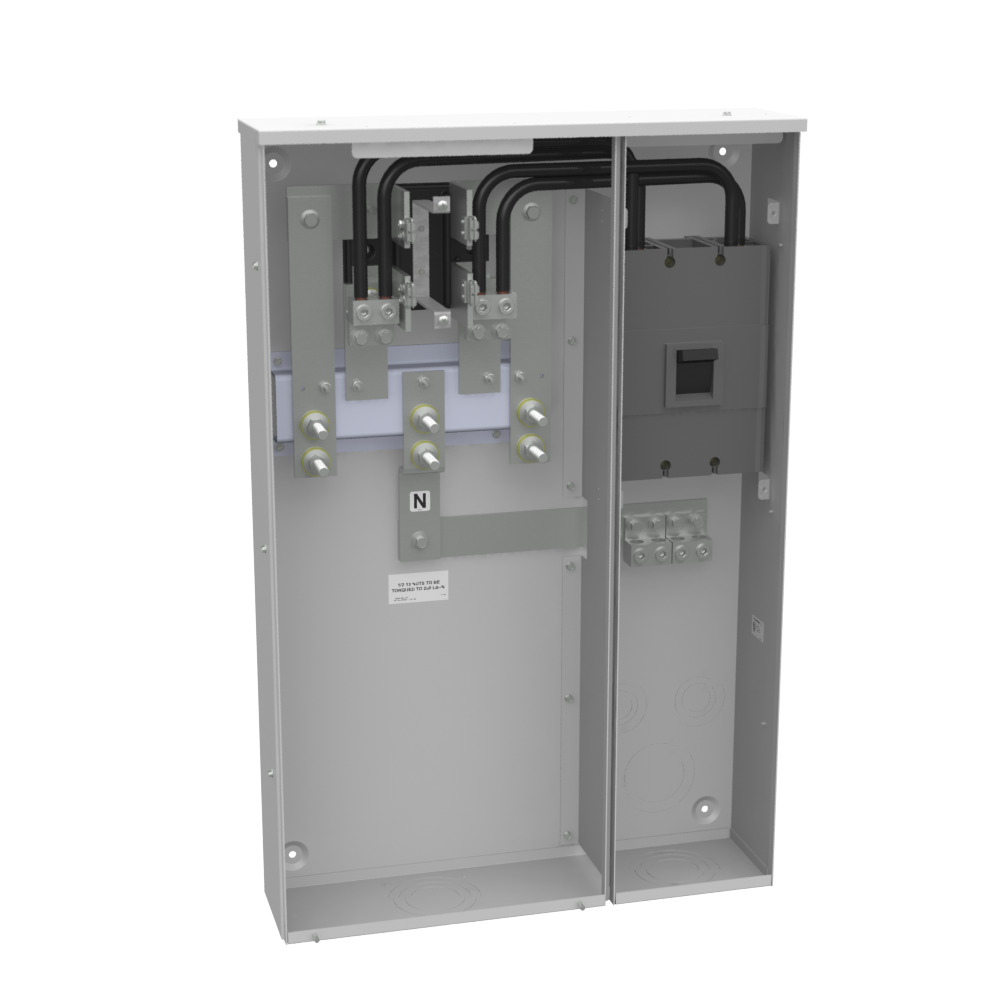

4 TERM RNGTP PLAIN TOP 1-400A MN BRKR LNK BYPS
Manuals & Documentation
| Catalog Number | M401-UG-BS |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Meter Socket With Main |
| Bypass Type | Link |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572211865 |
| GTIN | 00784572211865 |
| Item Type | Ring Type Meter Socket |
| Length | 5.97 |
| Length UOM | Inch |
| Width | 24.88 |
| Width UOM | Inch |
| Height | 38 |
| Height UOM | Inch |
| Size | 5.97L x 24.88W x 38H |
| Terminals | 1/2 Inch Stud Line Side |
| Voltage Rating | Up to 240 Volts Alternating Current |
