Telemecanique

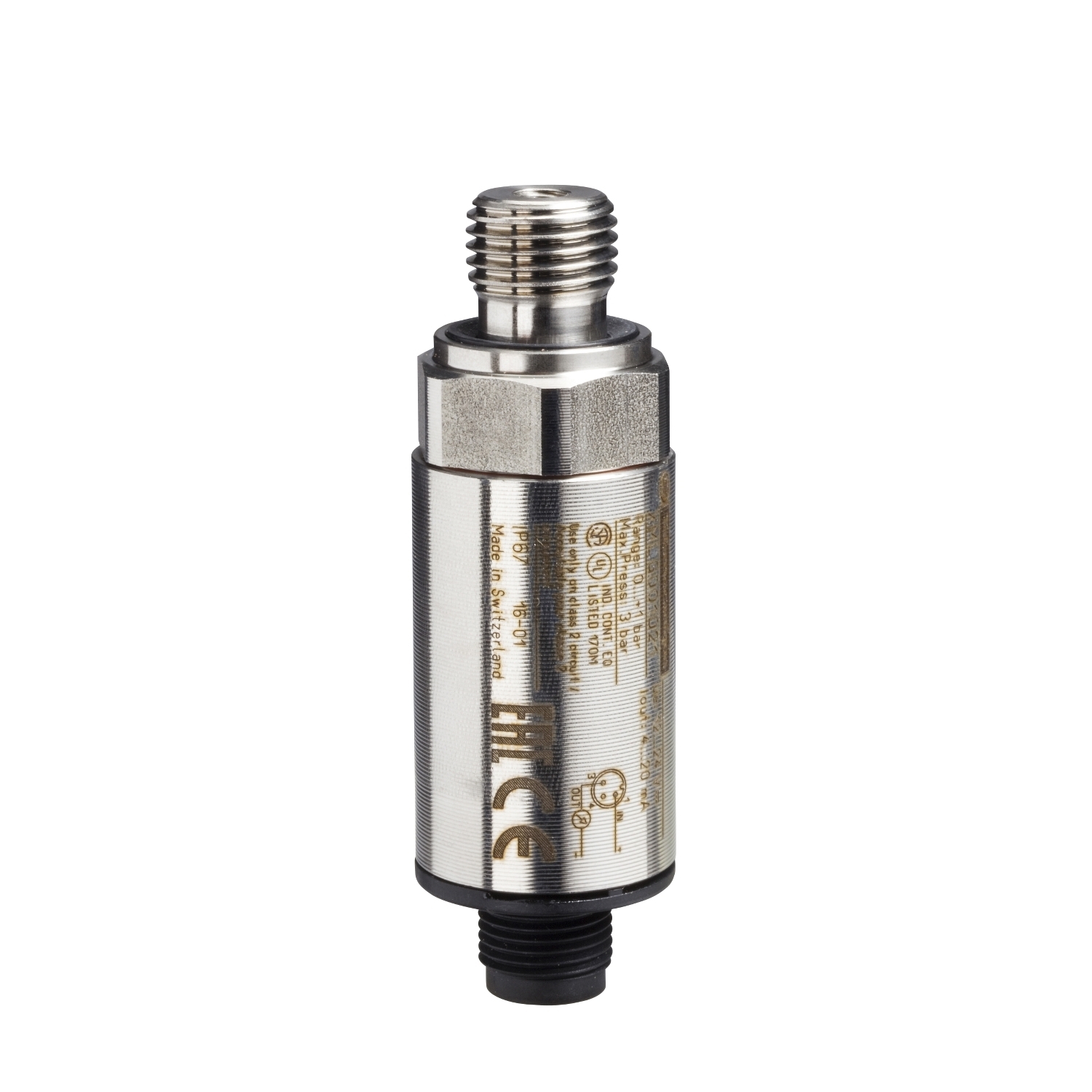

XMLG001D23 OsiSense XM Electronic Pressure Sensor, 0 to 1 bar, <2 ms Response, Analog Output, 12/24 V DC

MFR:
Telemecanique Sensors
MFR #:
XMLG001D23
UPC:
785901533092
Item #:
259400

This product is part of the XML range, an offer of pressure sensors and switches. This pressure switch controls or regulates pressure levels in fresh water, hydraulic systems and corrosive fluids. It transforms the pressure change into a digital electrical signal when the preset operating points are reached. These pressure switches are used for pressure control or monitoring on water pumps, compressors, molding presses, injection molders, grinding machines, machining centers, etc. A pressure transmitter transforms measured pressure into a proportional analog output. The range of this transmitter is 0psi to 14.5psi and the current output is 4mA to 20mA. The transmitter accepts 12VDC to 24VDC power. The transmitter has an M12 3-pin male connector and a 1/4in NPT male fluid connection. It is compliant with IEC, CE, EAC, UL, and CSA standards and IP66, IP67, and NEMA 4 rated. It is suitable for monitoring air, fresh water, hydraulic oils and refrigeration fluids. This product is certified by CSA C22.2 No 14, EAC and UL 508. It meets CE and EN/IEC 61326-2-3 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.

Manuals & Documentation
Catalog Number XMLG001D23
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Control circuit
Enclosure NEMA 4
Process Connection 1/4IN - 18 NPT (MALE)
Special Features 3 PINS 1 MALE CONNECTOR M12,IP66 CONFORMING TO EN/IEC 60529-IP67 CONFORMING TO EN/IEC 60529
Standard 1 KV 42 OHM EN/IEC 61000-4-5-500 KV 12 OHM EN/IEC 61000-4-5,15 KV IN AIR EN/IEC 61000-4-2-8 KV ON CONTACT EN/IEC 61000-4-2,200 V/M 80-1000 HZ EN/IEC 61000-4-3,30 A/M 50 HZ EN/IEC 61000-4-8,30 V 0.15-80 HZ)EN/IEC 61000-4-6,4 KV EN/IEC 61000-4-4,CE-EN/IEC 61326-2-3,EAC-UL 508-CSA C22.2 NO 14,IP66 EN/IEC 60529-IP67 EN/IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=863960&lang=en-us
UPC 785901533092
GTIN 03389118342187
Item Type Pressure transmitter;Electronic pressure sensors
Operating Temperature -15-85 A Degrees C
System Pressure 14.50
Temperature Rating -15…125 DEGRESS C
