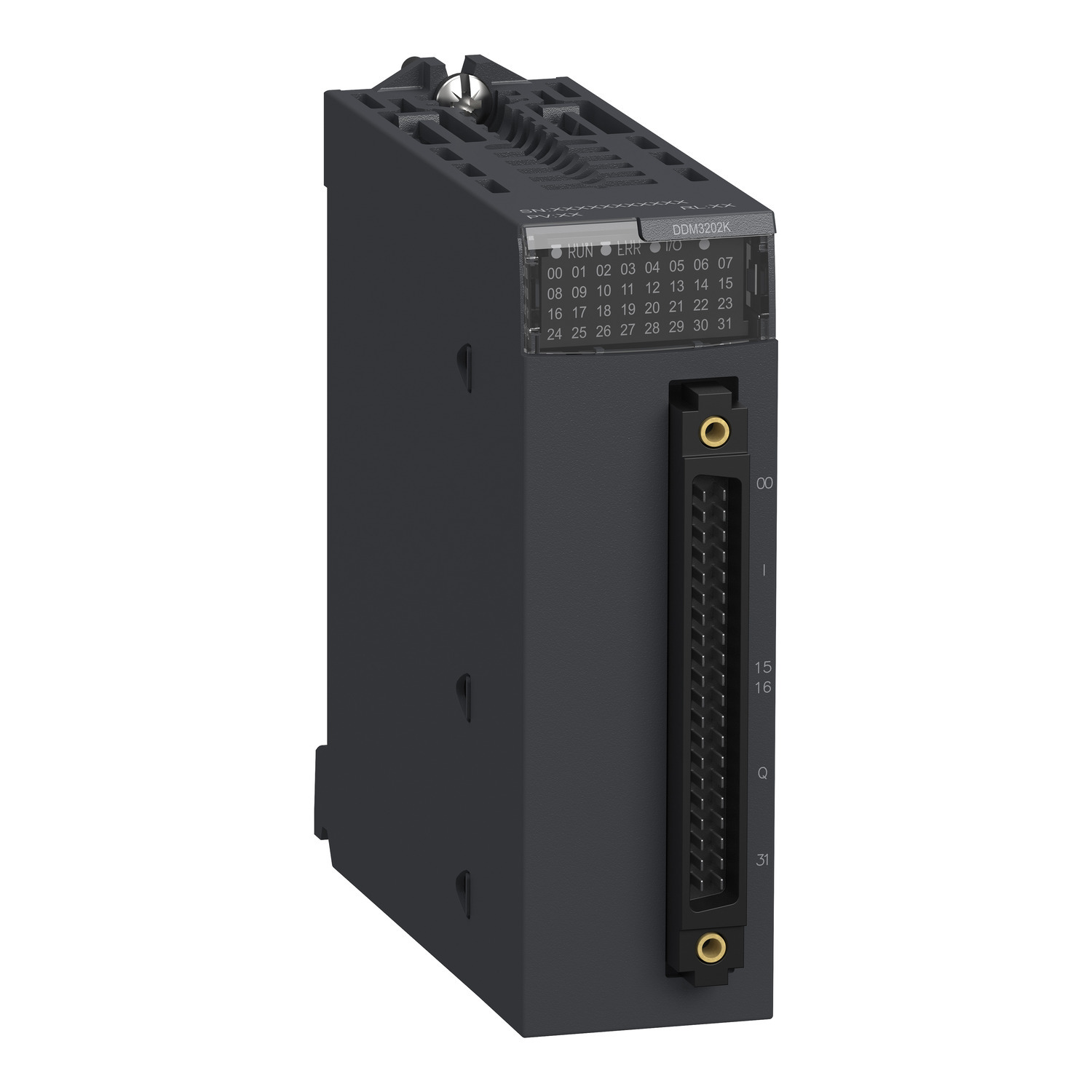

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Manuals & Documentation
Catalog Number BMXDDM3202K
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Input 9600 OHM
Input Signal Current sink (logic positive)
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=698328&lang=en-us
GTIN 03595863910636
