Type FSCC Cast Device Box; Malleable Iron Ridge Top, Hub Size: 3/4 In
- MFR:
- Appleton Electric
- MFR #:
- FSCC175
- UPC:
- 781381345651
- Item #:
- 25639
Type FSCC Cast Device Box; Malleable Iron Ridge Top, Hub Size: 3/4 In
- MFR #:
- FSCC175
- UPC:
- 781381345651
- Item #:
- 25639

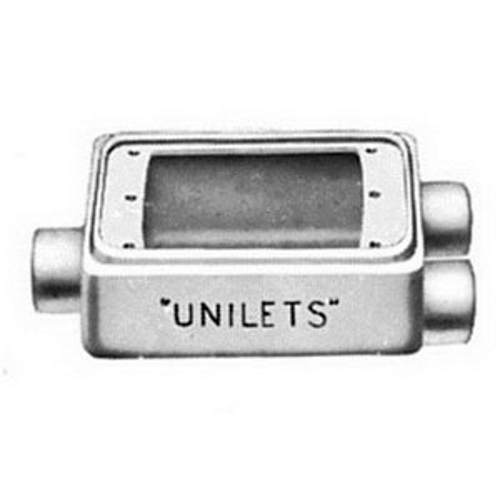

UNILETS FSCC Shallow Depth 1-Gang Cast Device Box, Number Of Outlet: 3, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (3) 3/4 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81 IN, Depth: 2 IN, Finish: Tr
Manuals & Documentation
| Catalog Number | FSCC175 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit And IMC |
| Cable Entry | (3) 3/4 IN Hub |
| Cubic Capacity | 25 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; |
| Standard | UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381345651 |
| GTIN | 00781381345651 |
| Item Type | FSCC Shallow Depth 1-Gang Cast Device Box |
| Length | 6.7000 |
| Length UOM | Inch |
| Width | 5.0000 |
| Width UOM | Inch |
| Height | 3.5000 |
| Height UOM | Inch |
| Weight | 2.060 |
| Weight UOM | Pounds |
| Size | 3/4 |
