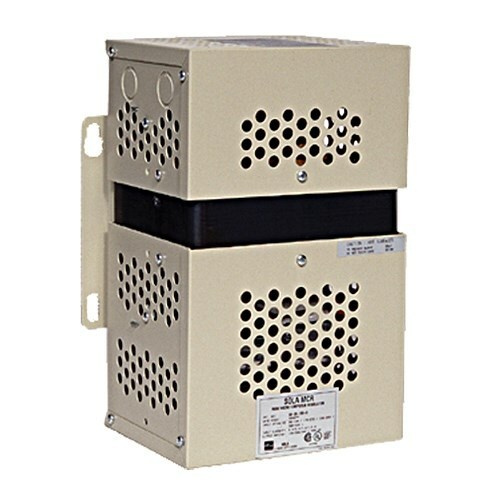

63-23-220-8 MCR Hardwired Power Line Conditioner With Voltage Regulation, 120/208/240/480 V AC Input, 120/208/240 VAC Output, 16.7 A, 1 Phase
- MFR:
- SolaHD
- MFR #:
- 63-23-220-8
- UPC:
- 783472561711
- Item #:
- 256375
63-23-220-8 MCR Hardwired Power Line Conditioner With Voltage Regulation, 120/208/240/480 V AC Input, 120/208/240 VAC Output, 16.7 A, 1 Phase
- MFR #:
- 63-23-220-8
- UPC:
- 783472561711
- Item #:
- 256375
Manuals & Documentation
| Catalog Number | 63-23-220-8 |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Computers/Printers, Telephone/FAX systems, POS Terminals, Security Systems, LAN Networks, Laboratory Equipment |
| Connector | (4) 5-R & (1) L5-30R Receptacles |
| Frequency Rating | 60 |
| Input | 120 |
| Mounting | Bracket |
| Special Features | +/- 3% output voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Galvanic isolation, Noise attenuation 120 dB common mode/60 dB transverse mode |
| Standard | RoHS Compliant, UL Listed: UL 1012, cULus Listed: (1500VA Units) UL 1012, CSA C22.2 No. 66; CSA Certified: (70VA-1kVA Units), CSA C22.2 No. 66 |
| UPC | 783472561711 |
| GTIN | 00783472561711 |
| Item Type | MCR Portable Series Power Line Conditioning with Voltage Regulation |
| Length | 17 |
| Width | 11 |
| Height | 11 |
