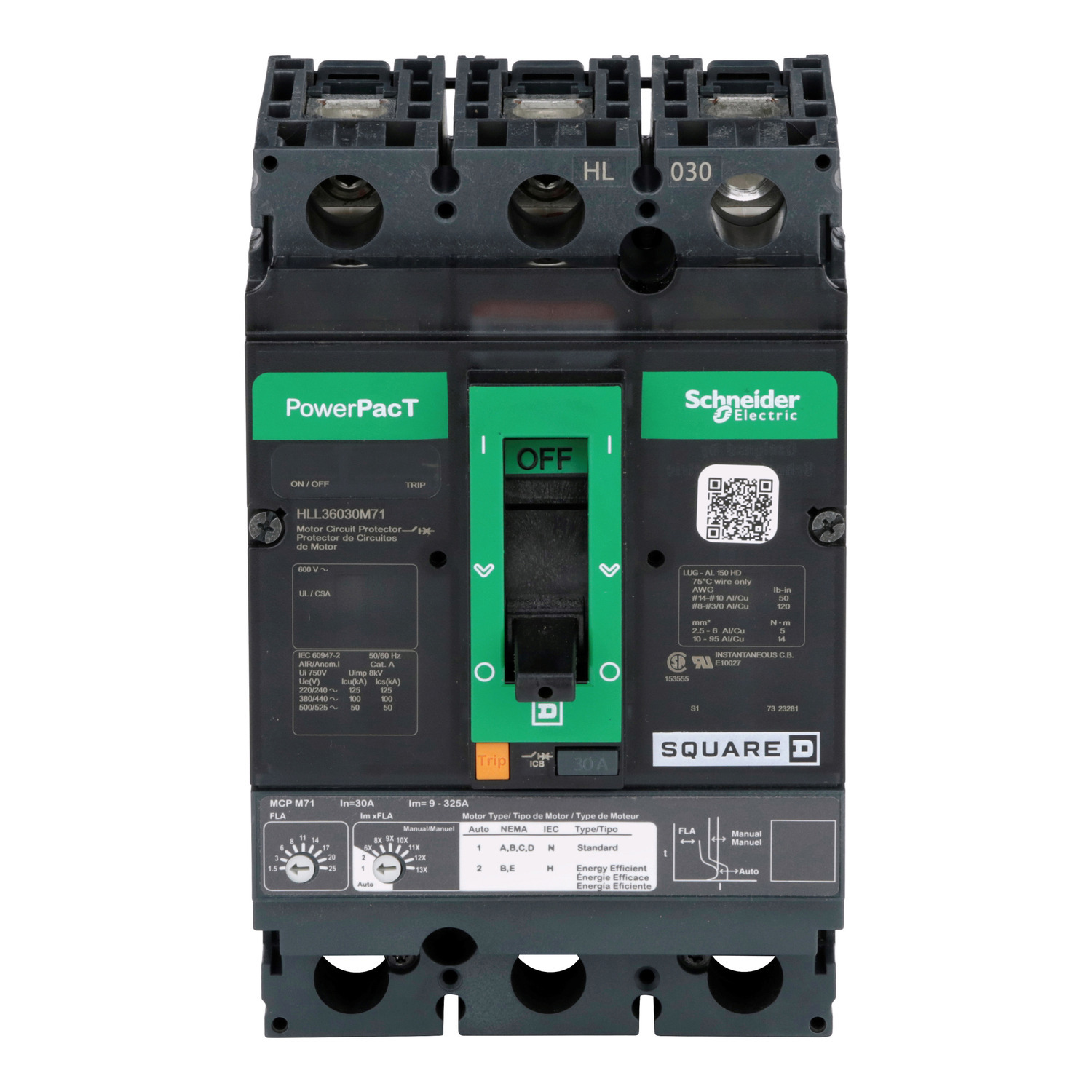

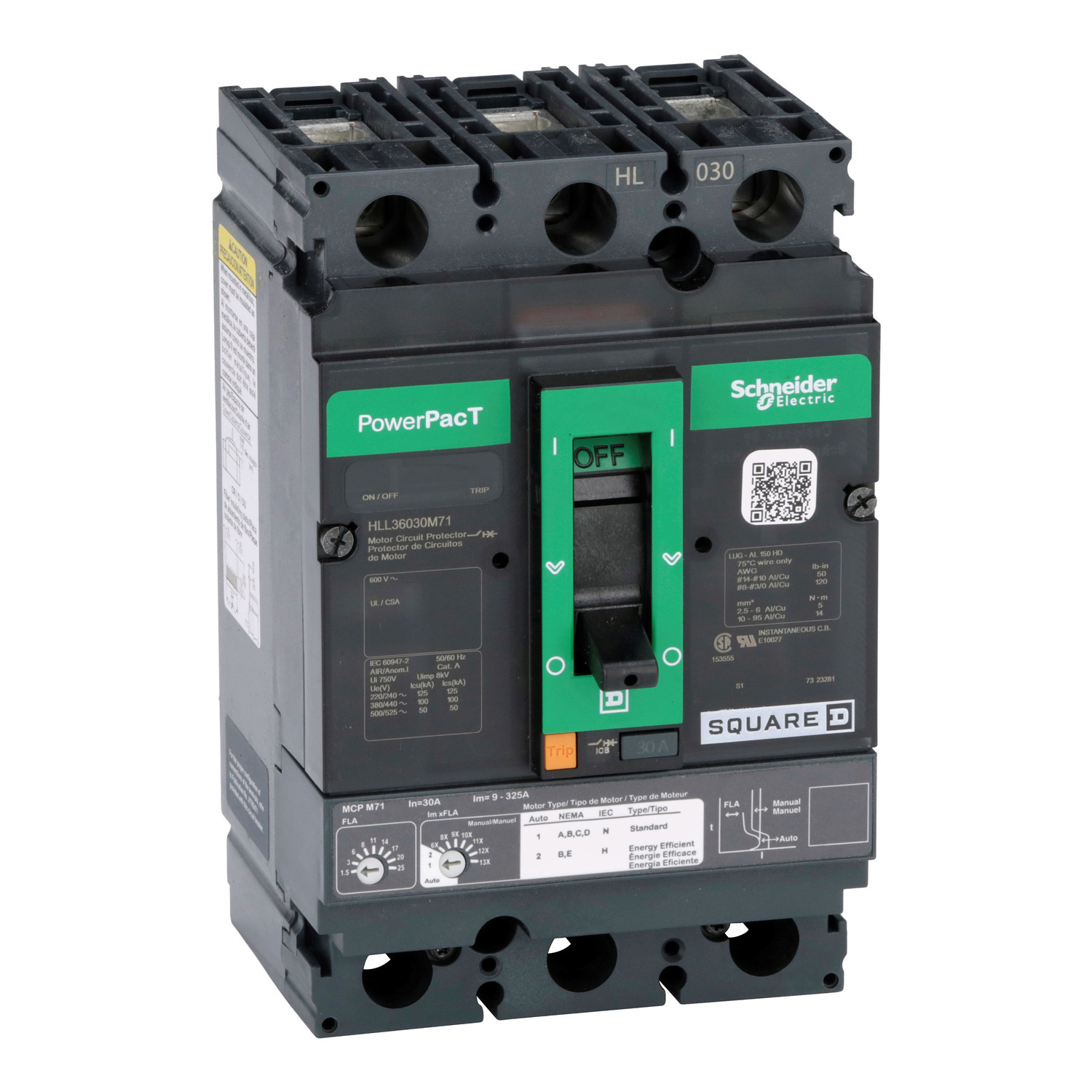

HLL36030M71 Motor Circuit Breaker, 30 Amp, 3 Pole, 600V
- MFR:
- Schneider Electric
- MFR #:
- HLL36030M71
- UPC:
- 785901632139
- Item #:
- 255927
HLL36030M71 Motor Circuit Breaker, 30 Amp, 3 Pole, 600V
- MFR #:
- HLL36030M71
- UPC:
- 785901632139
- Item #:
- 255927
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 30A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | HLL36030M71 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Distribution |
| Color | Black |
| Connection | Lugs, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Control | Toggle |
| Number of Poles | 3 |
| Special Features | Modbus;Ethernet |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55987521&lang=en-us |
| UPC | 785901632139 |
| GTIN | 00785901632139 |
| Item Type | Motor Circuit Protector |
| Trip Type | Thermal-magnetic |
