Telemecanique

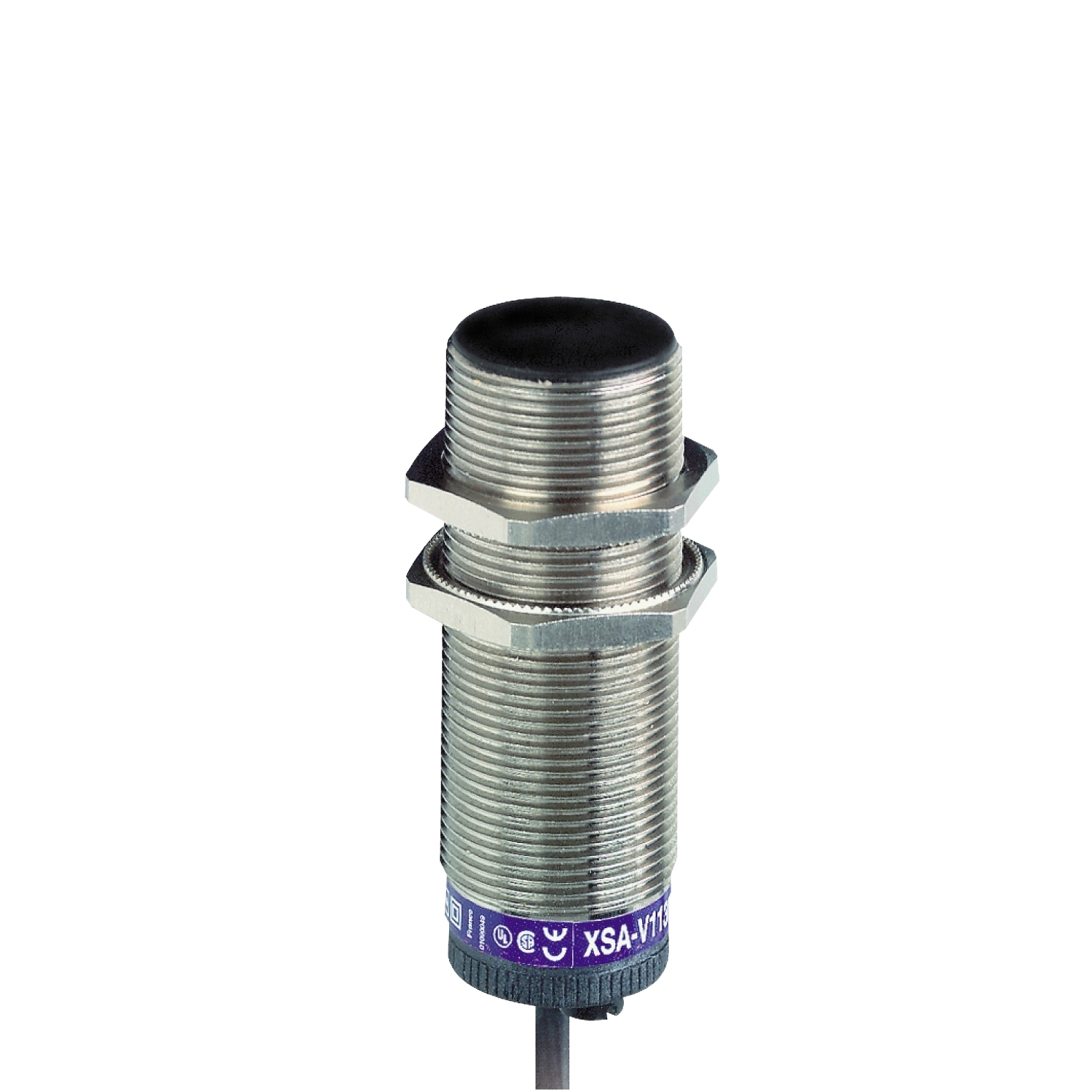

XSAV02801 OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, Discrete Output, 1NC Contact, 20 to 264 V AC/DC, 24 to 240 V AC, 24 to 210 V DC

MFR:
Telemecanique Sensors
MFR #:
XSAV02801
UPC:
785901858942
Item #:
255217

This sensor provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading. Dedicated to rotation monitoring, it is suitable for conveyor belts, bucket elevators and Archemedian screws. And also for grinders, crushers, pumps, centrifugal driers, mixers, etc. This product is a cylindrical, flush mountable metal sensor, diameter 30mm, threaded M30 x 1.5. It features a cylindrical metal case and a 2m long cable. It has a sensing distance of 10mm. Its adjustable frequency range is 120 impluses/min to 3000 impluses/min. Two-wire, AC/DC (24V to 240VAC or 24V to 210VDC), 1 NC discrete output. This sensor has no run-up delay at power-up.

Manuals & Documentation
Catalog Number XSAV02801
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Rotation monitoring
Connector Cable
Control Output 1 NC
Enclosure Nickel Plated Brass
Indicator Output state 1 LED red)
Material Metal
Mounting Flush
Sensing Range > 0.31...0.59 in (> 8...15 mm)
Sensor 30 MM,81 MM,INDUCTIVE PROXIMITY SENSOR
Special Features METAL
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 24...210 V DC;24...240 V AC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=871074&lang=en-us
UPC 785901858942
GTIN 03389110858945
Item Type Sensor;Inductive proximity sensor;Cylindrical M30
Operating Temperature -25-70 A Degrees C
