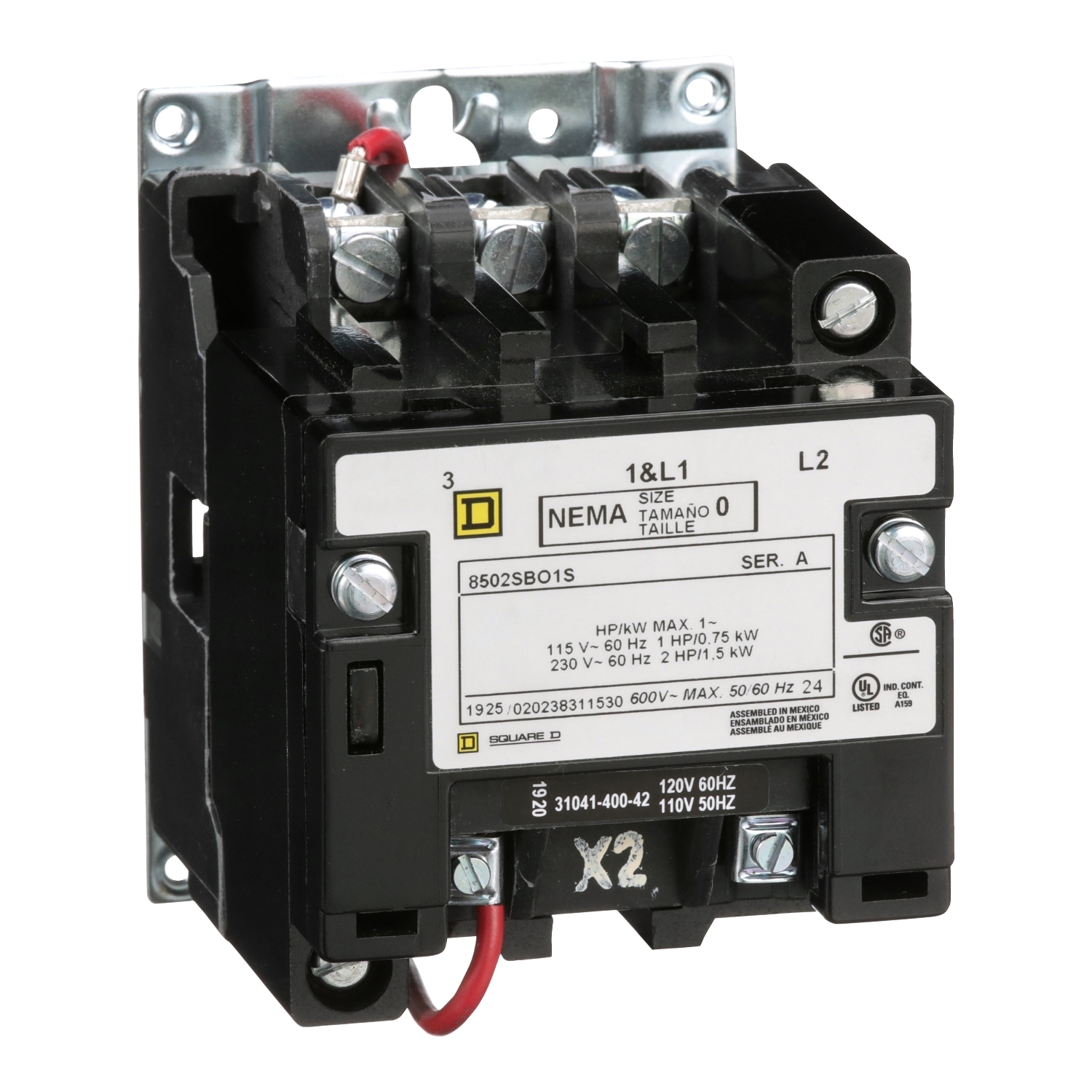

8502SBO1V02S 8502S Type S Nema Contactor, 120/240 V AC V Coil, 18 A, 3PST Contact, 2 Poles
- MFR:
- Schneider Electric
- MFR #:
- 8502SBO1V02S
- UPC:
- 785901761518
- Item #:
- 25459
8502SBO1V02S 8502S Type S Nema Contactor, 120/240 V AC V Coil, 18 A, 3PST Contact, 2 Poles
- MFR #:
- 8502SBO1V02S
- UPC:
- 785901761518
- Item #:
- 25459

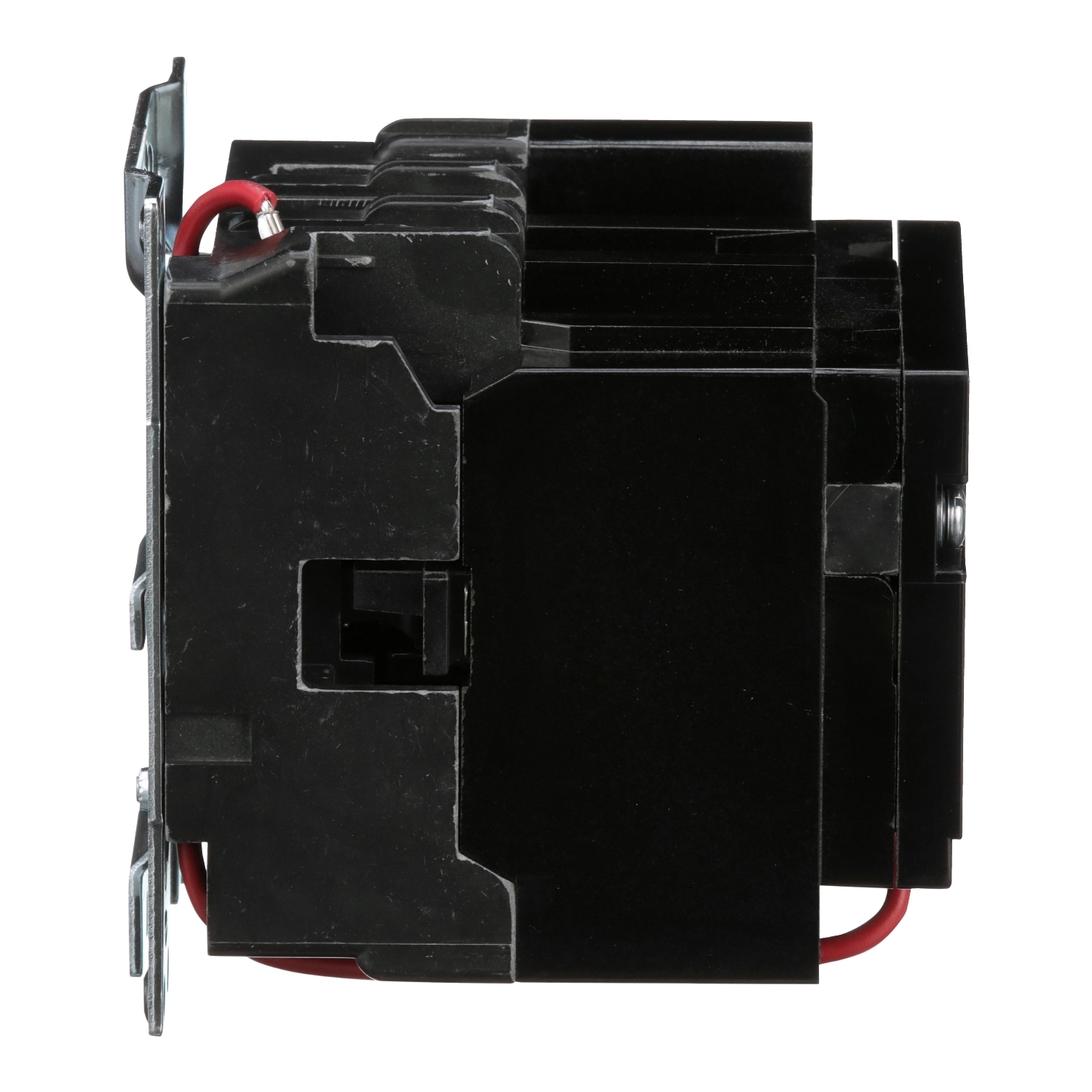

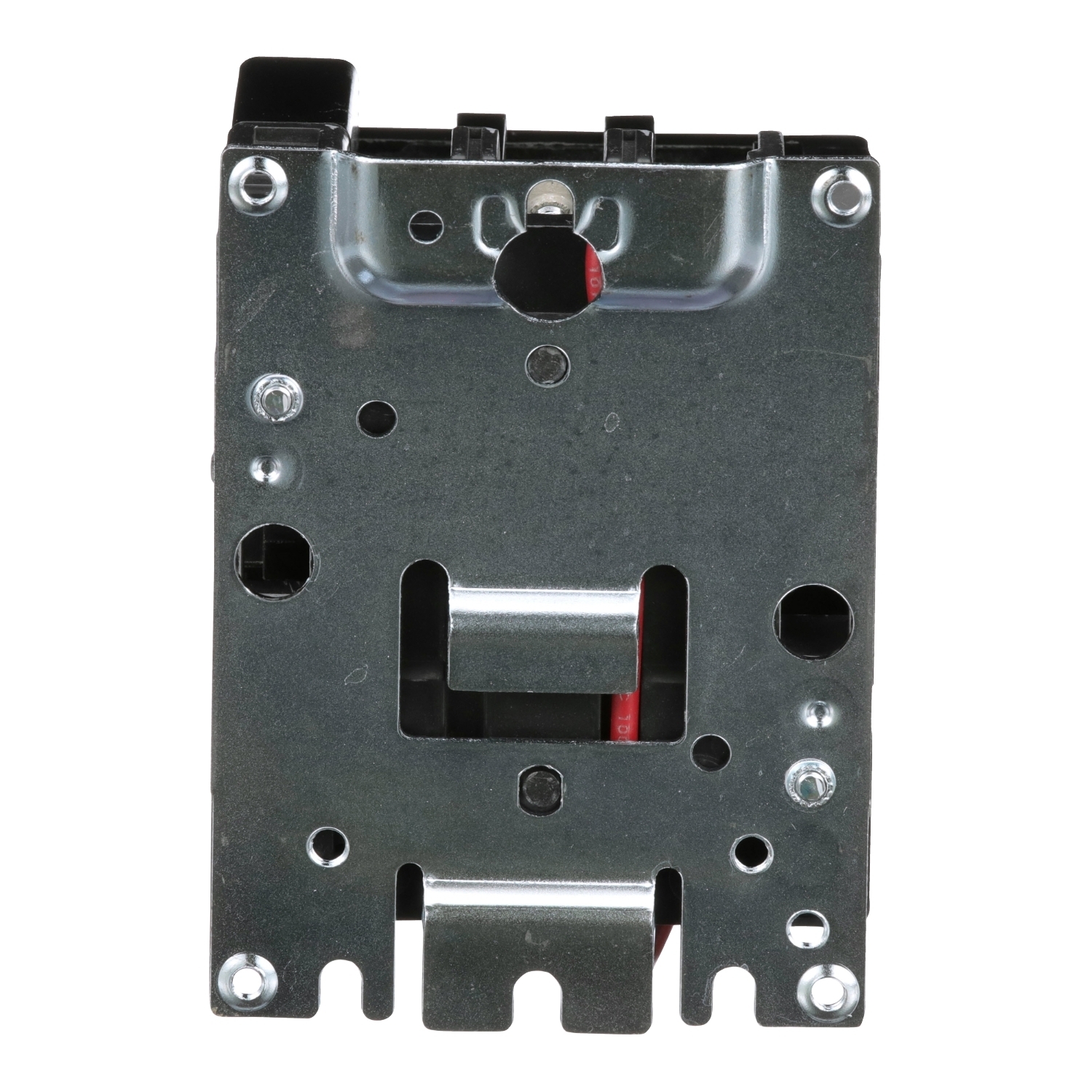

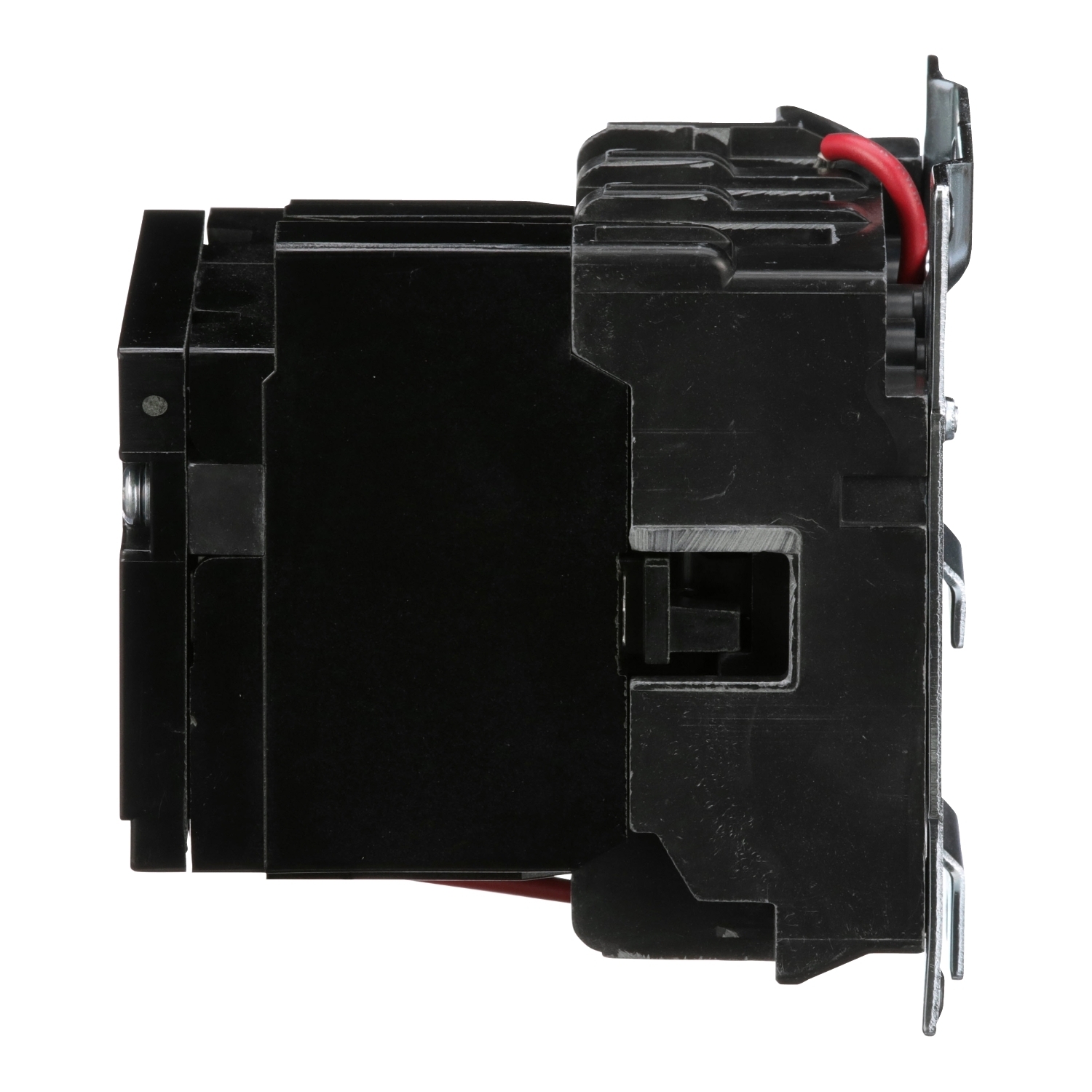

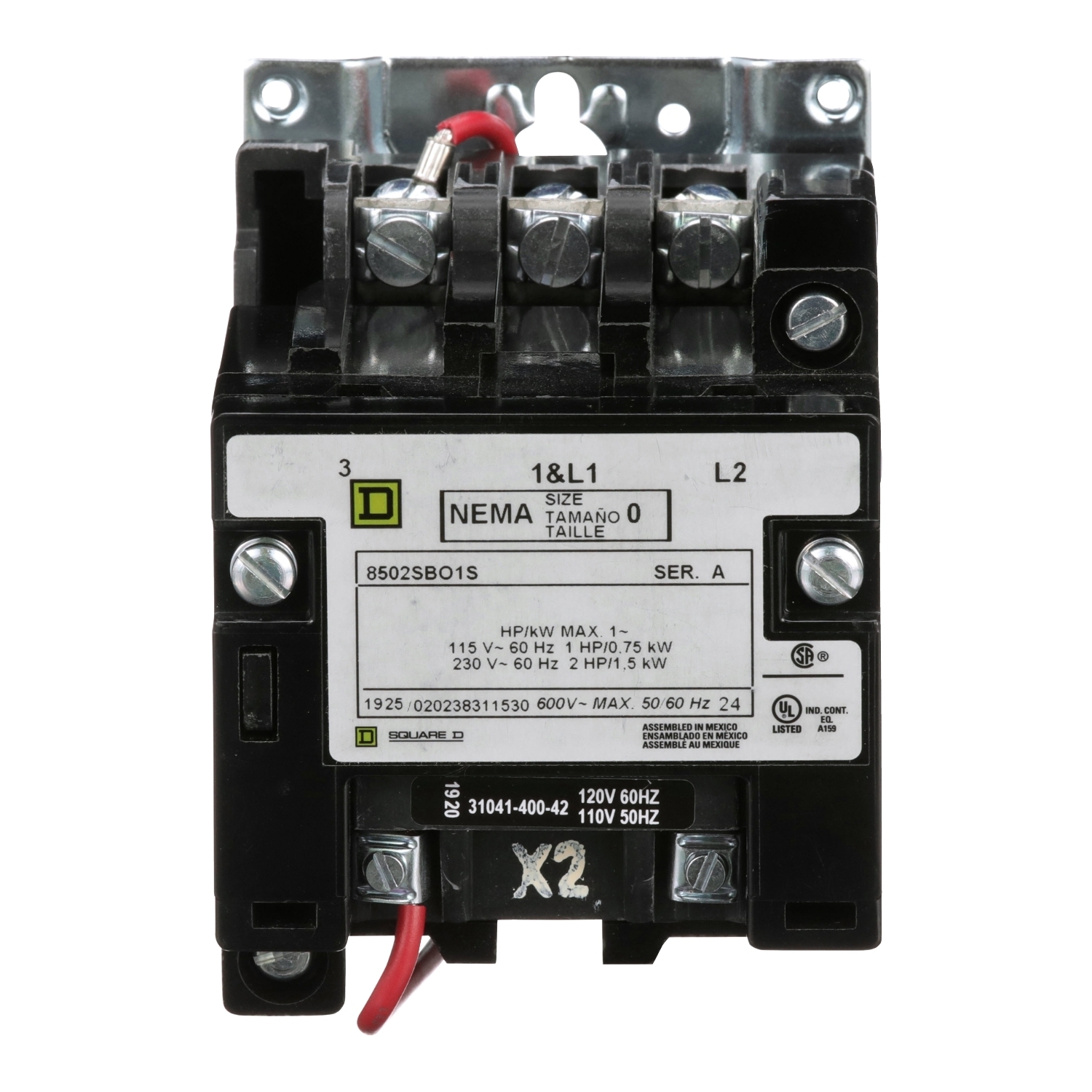

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 2 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating. Single phase NEMA Size 0 contactors have 1 HP at 115 VAC and 2 HP at 230 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Manuals & Documentation
| Catalog Number | 8502SBO1V02S |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| UPC | 785901761518 |
| GTIN | 00785901761518 |
