8536SDG1V02H30S Type S Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SDG1V02H30S
- UPC:
- 785901807087
- Item #:
- 254562
8536SDG1V02H30S Type S Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
- MFR #:
- 8536SDG1V02H30S
- UPC:
- 785901807087
- Item #:
- 254562

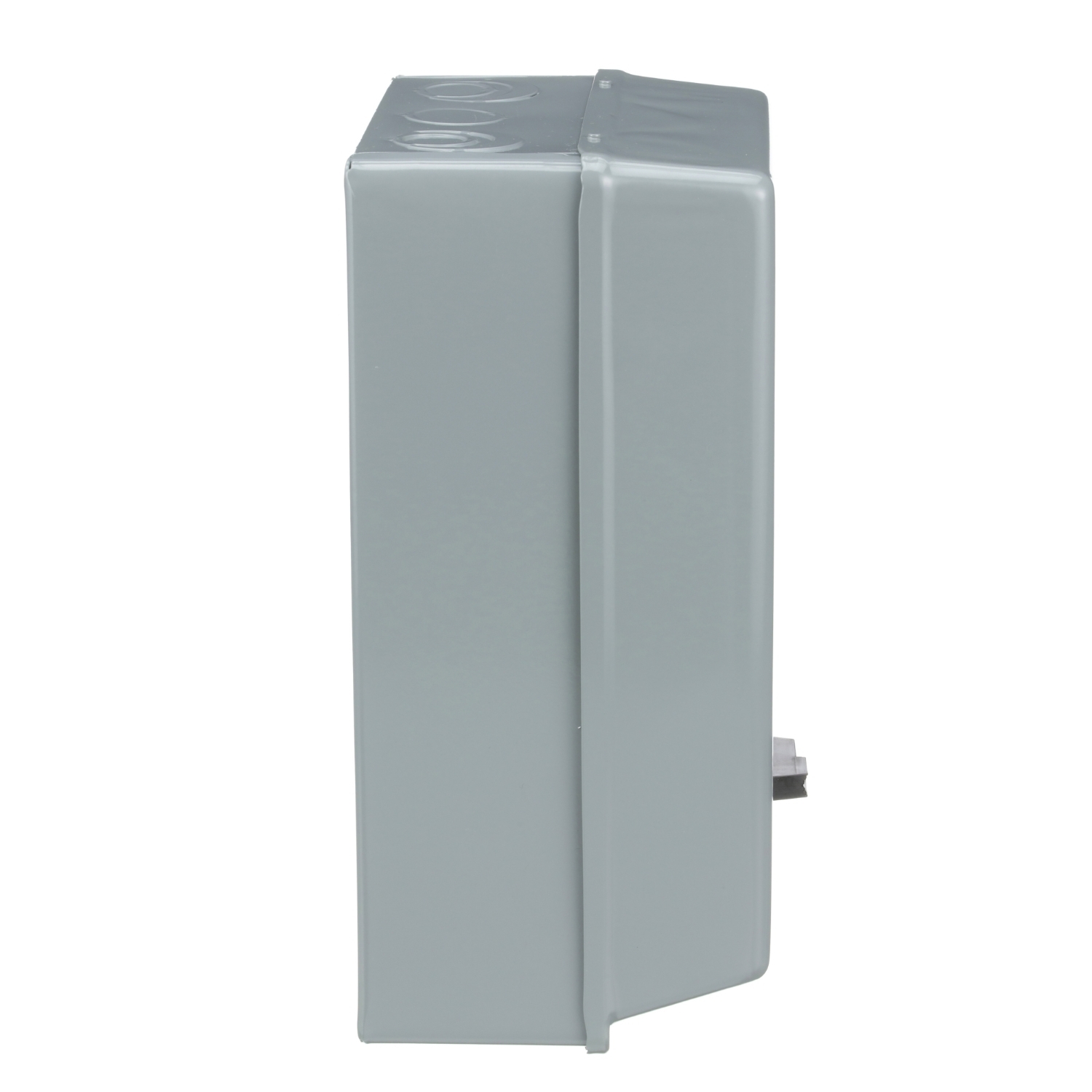

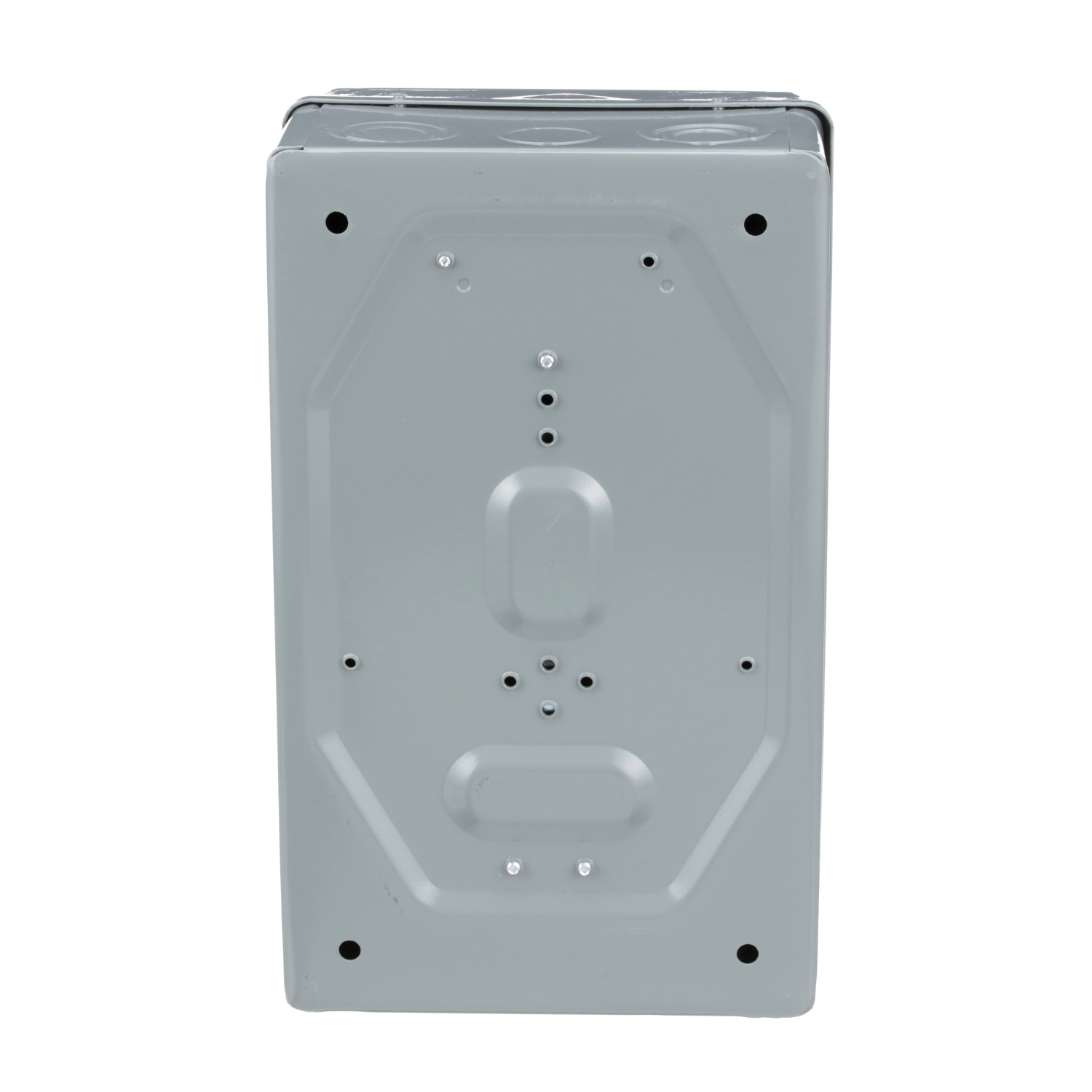

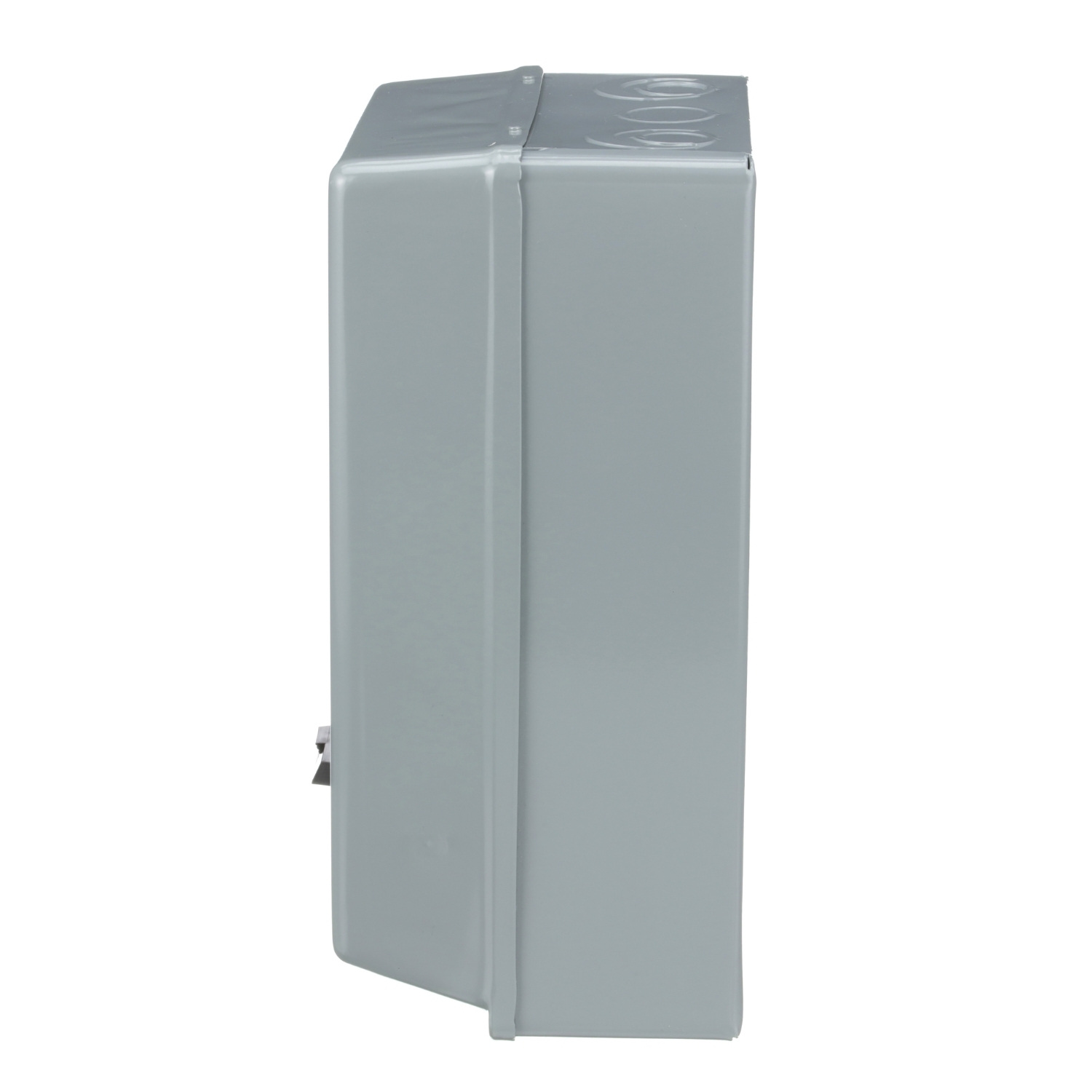

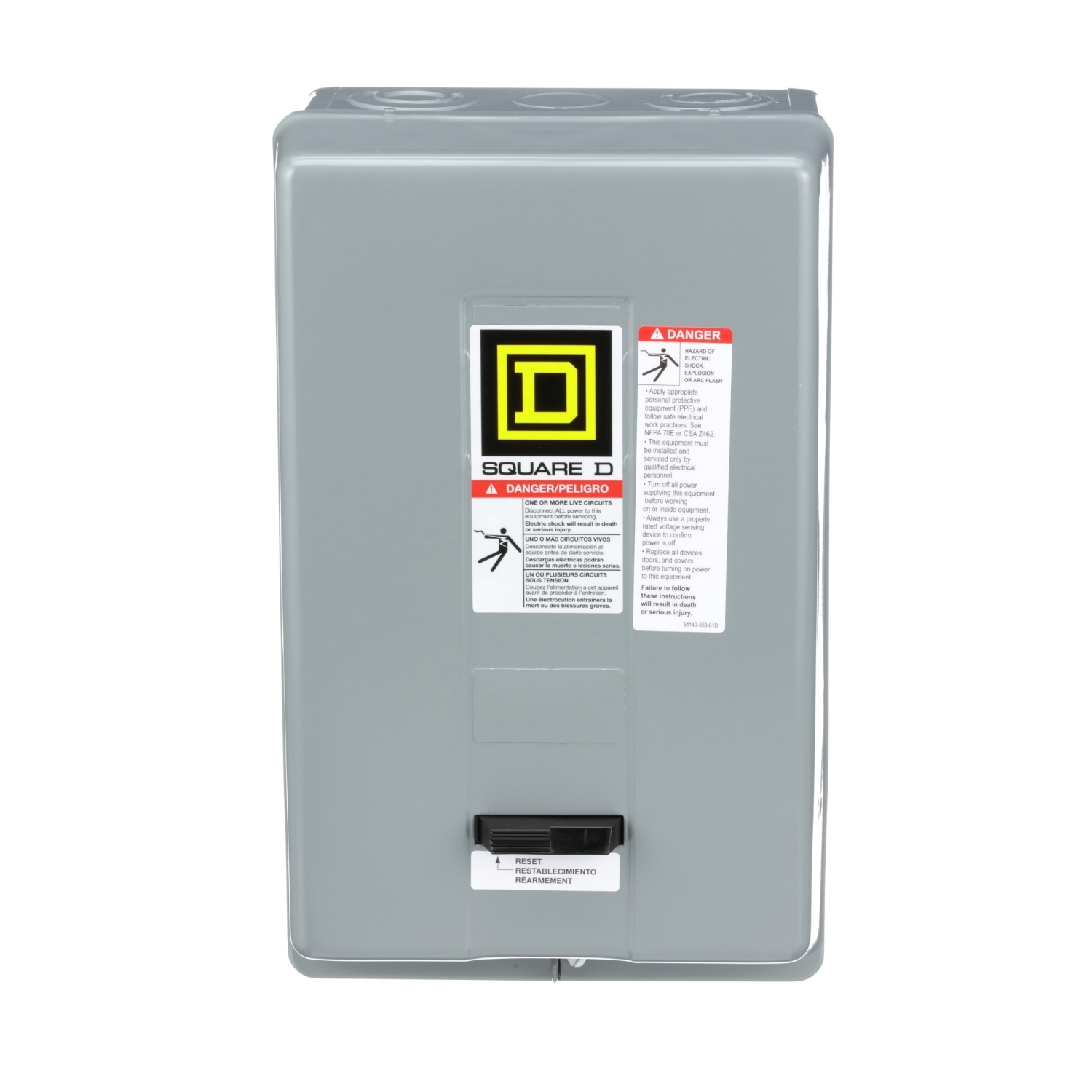

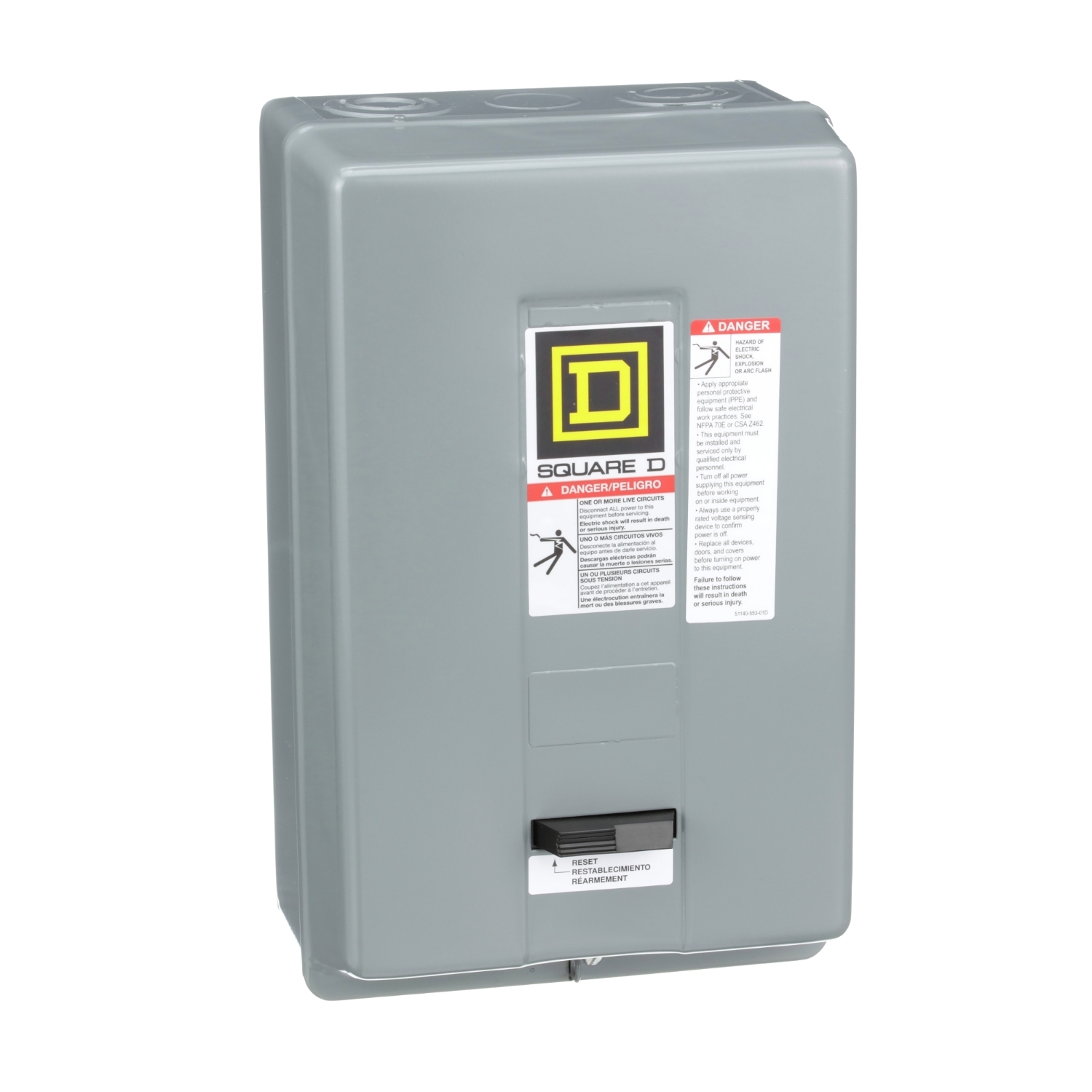

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating. This NEMA Size 2 motor starter has 3 phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 15A to 45A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.31 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Manuals & Documentation
| Catalog Number | 8536SDG1V02H30S |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=517753&lang=en-us |
| UPC | 785901807087 |
| GTIN | 00785901807087 |
