SCHNEIDER ELECTRIC

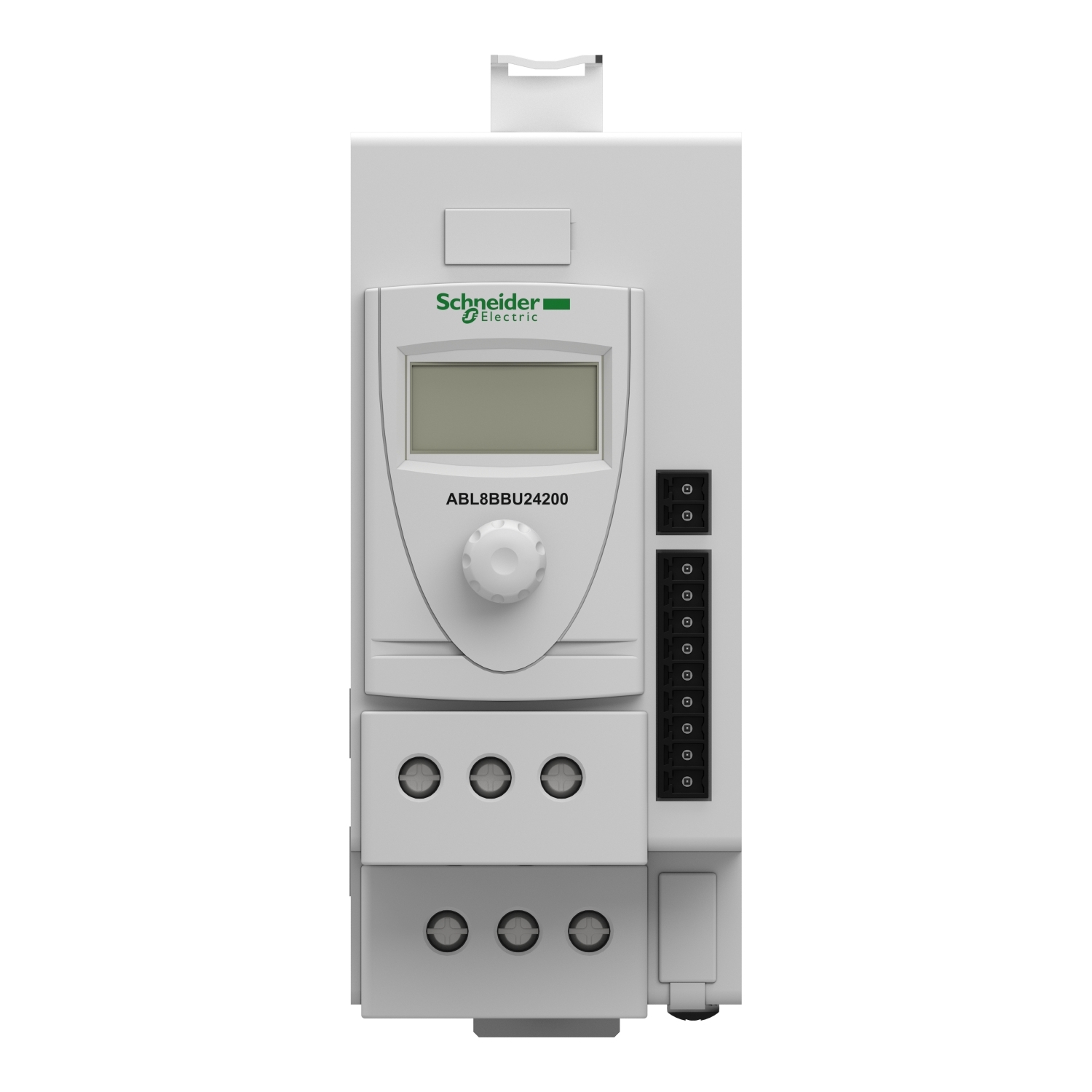

ABL8BBU24200 Phaseo Regulated Switch Mode Battery Control Module, 0.5 V DC Battery Mode, 0.25 V DC Nominal Mode Input, 24 VDC Output, 20 A, DIN Rail Mount

MFR:
Schneider Electric
MFR #:
ABL8BBU24200
Item #:
253742

This ABL8 battery control module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 20A at 24V DC. This battery control module is designed to act as a battery charger, to allow batteries usage during significant network power shortages. It has control backup battery charging and backup supply to ensure the longest battery life-time. It provides reliable and fast switching between network supply and battery supply avoiding disturbances on your critical control power supply lines. It weighs 0.500kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Manuals & Documentation
Catalog Number ABL8BBU24200
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Input Voltage 24...28.8 V DC
Output Voltage (Ubattery-0.5) V battery mode DC;(Uin-0.25) V nominal mode DC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1452659&lang=en-us
GTIN 03389119406826
