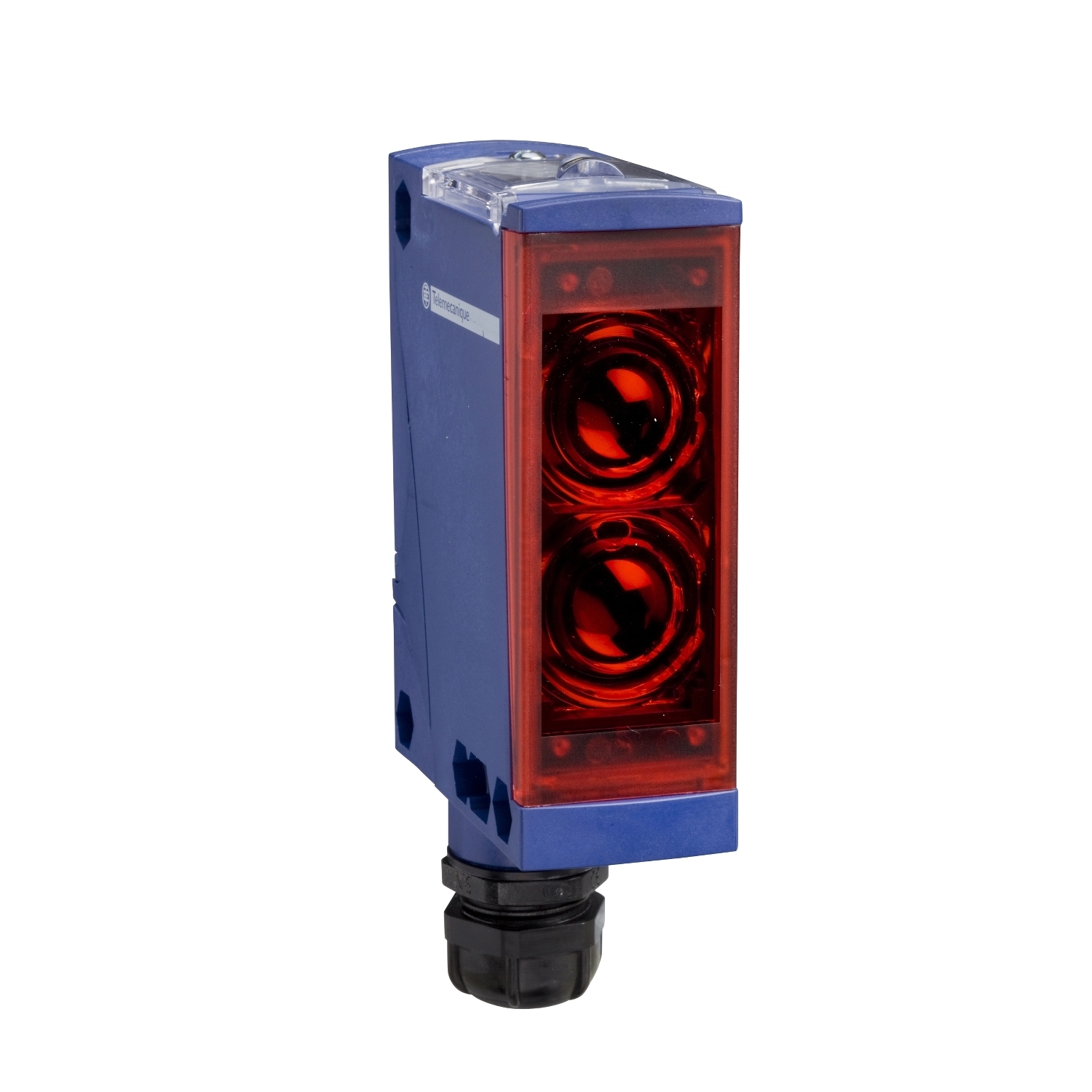

XUX1ARCNT16 OsiSense XU Series Compact Photoelectric Sensor, 65.62 ft, Through Beam Sensing Beam, <2 ms Response, Solid State Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XUX1ARCNT16
- UPC:
- 785901489870
- Item #:
- 253114
XUX1ARCNT16 OsiSense XU Series Compact Photoelectric Sensor, 65.62 ft, Through Beam Sensing Beam, <2 ms Response, Solid State Output
- MFR #:
- XUX1ARCNT16
- UPC:
- 785901489870
- Item #:
- 253114

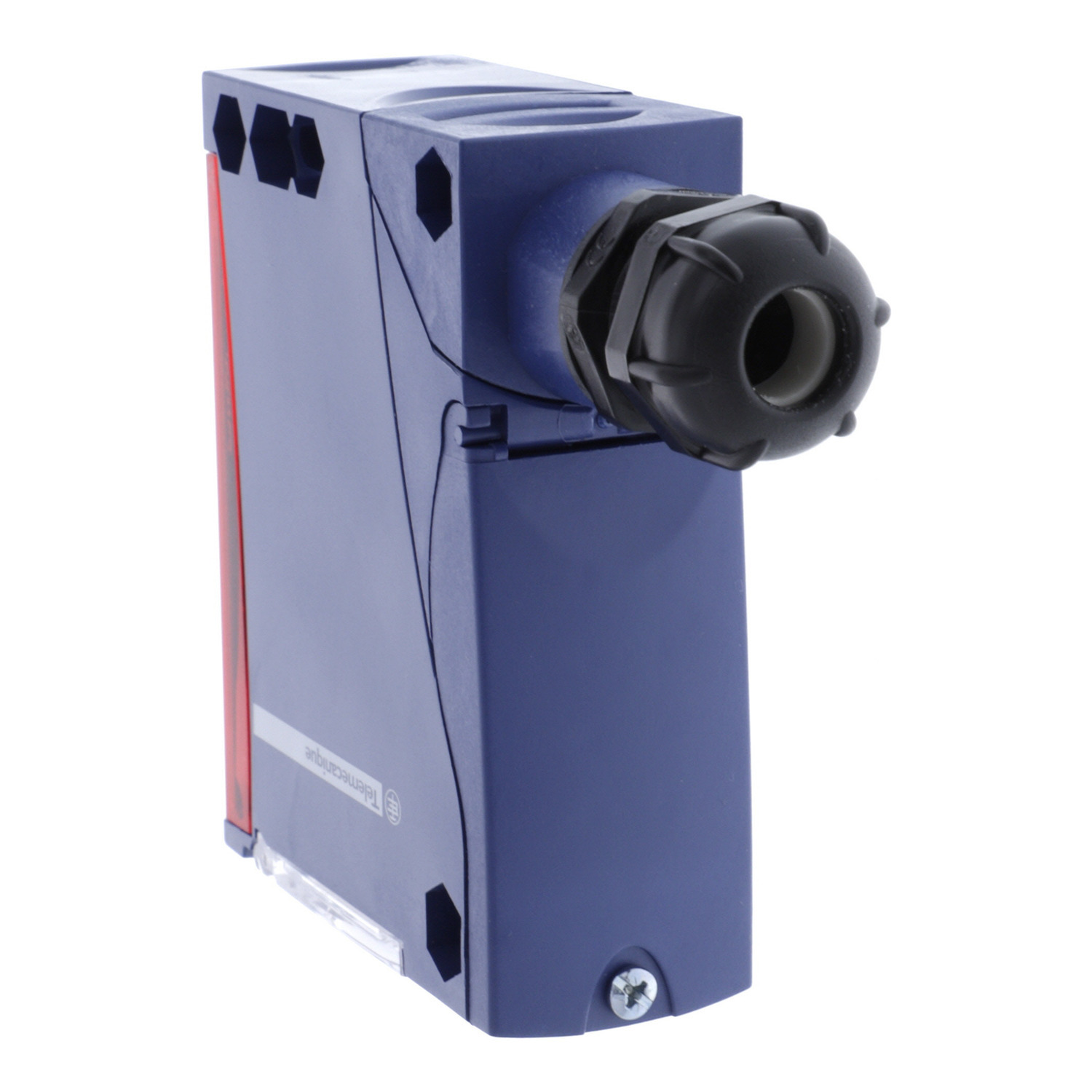

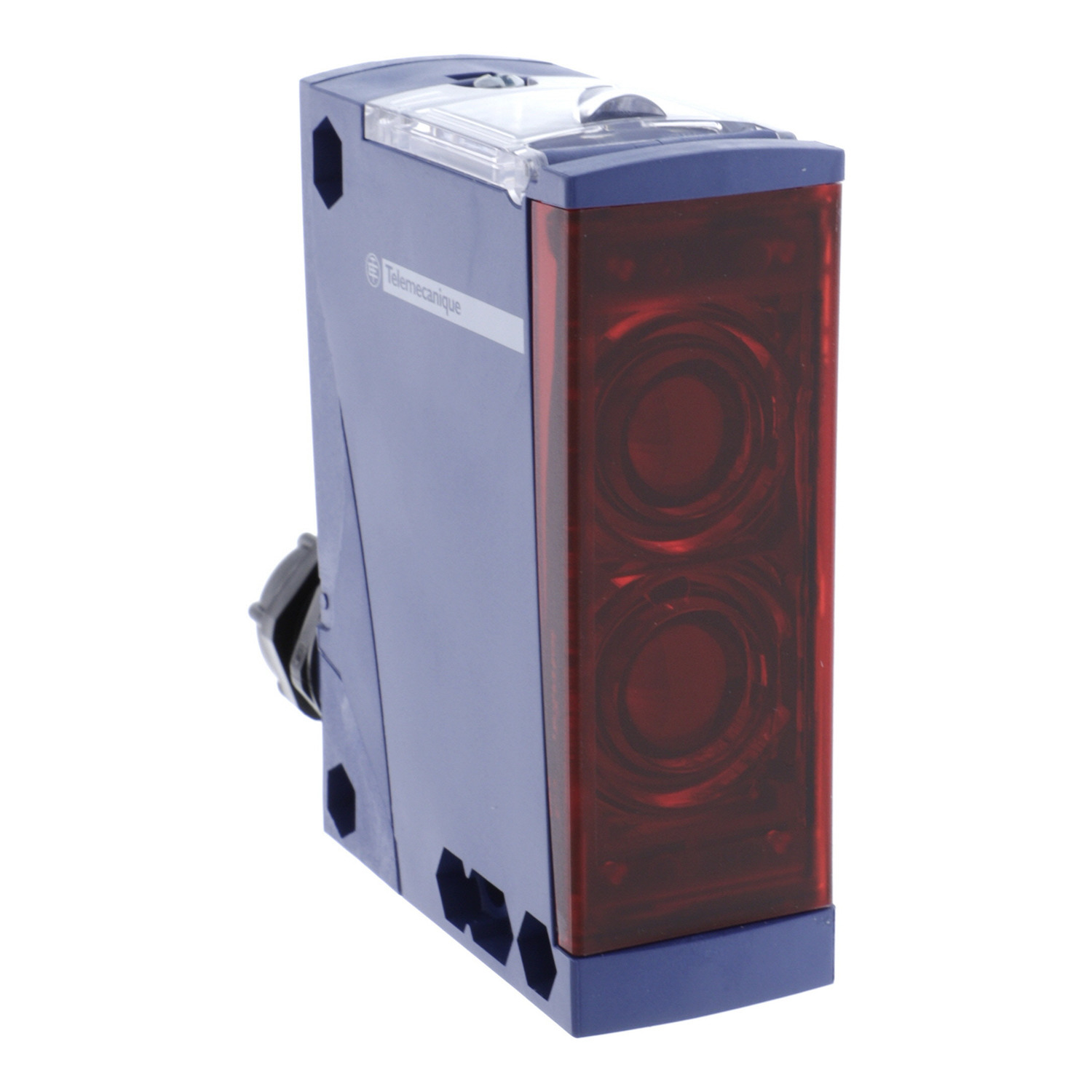

This compact design single mode (reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Manuals & Documentation
| Catalog Number | XUX1ARCNT16 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connection | Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor |
| Enclosure | IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT |
| Operating Cycles | <= 20 Hz |
| Output | 1 C/O;Discrete;Relay |
| Sensing Range | 14-14 M REFLEX NEED REFLECTOR XUZC50,> 16.4...49.21 FT (> 5...15 M) |
| Special Features | 1 LED yellow)output state;1 LED green)supply |
| Standard | CSA-CE-UL,IP67 DOUBLE INSULATION IEC 60529-IP65 DOUBLE INSULATION IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=876170&lang=en-us |
| UPC | 785901489870 |
| GTIN | 03389110168419 |
| Item Type | General purpose single mode;Reflex;Compact 92 x 71;Photo-electric sensor |
| Size | 3.03 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR) |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 24...240 V AC/DC |
| Wattage | 2 W AC/DC |
