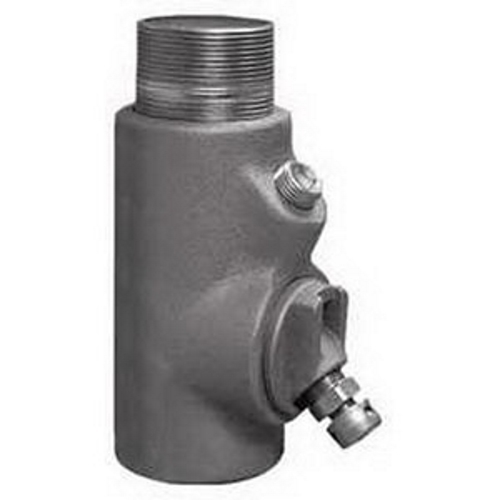

EYDM250 Unilets Type EYDM Vertical Sealing Fitting, 2-1/2 in, For Use With IMC/Threaded Rigid Conduit, Malleable Iron, Triple-Coated
- MFR:
- Appleton Electric
- MFR #:
- EYDM250
- UPC:
- 781381230193
- Item #:
- 252249
EYDM250 Unilets Type EYDM Vertical Sealing Fitting, 2-1/2 in, For Use With IMC/Threaded Rigid Conduit, Malleable Iron, Triple-Coated
- MFR #:
- EYDM250
- UPC:
- 781381230193
- Item #:
- 252249
UNILETS EYDM Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting With Removable Nipple, Size: 2-1-/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered MNPT X T
Manuals & Documentation
Features
- Dimension: 10-3/16 Inch Overall Length x 3-5/8 Inch Body Dia
- Explosionproof and dust-ignition proof
- To seal and drain vertical conduits
- Threaded for rigid conduit or IMC
- Large cover opening for easy packing of fiber dam on 1-1/4 Inch through 4 Inch sizes
- Can be used with Appleton Kwiko A or crouse-hinds chico sealing compound
- Provides continuous water drain path while allowing conduit run to breathe, in compliance with the NEC
- 25% conductor fill
| Catalog Number | EYDM250 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| Connection | Tapered MNPT X Tapered FNPT |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Material | Malleable Iron |
| Special Features | For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; U |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D; Class II, Groups E, F, G; And Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381230193 |
| GTIN | 00781381230193 |
| Item Type | EYDM Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting With Removable Nipple |
| Length | 9.0000 |
| Length UOM | Inch |
| Width | 5.3000 |
| Width UOM | Inch |
| Height | 3.6000 |
| Height UOM | Inch |
| Weight | 9.000 |
| Weight UOM | Pounds |
| Size | 2-1-/2 |
