Appleton

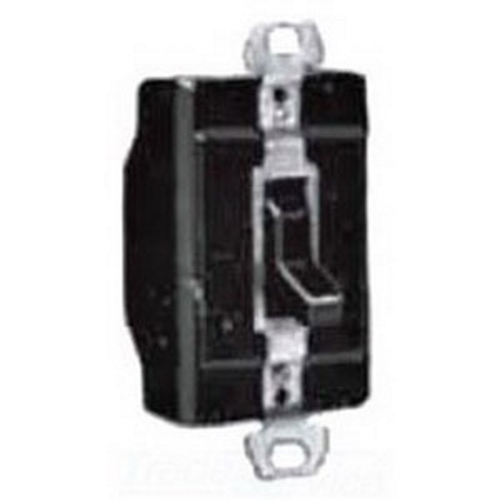

EFS-FR2-Q 1-Gang Non-Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 7CD/9EFG NEMA Rating

MFR:
Appleton Electric
MFR #:
EFS-FR2-Q
UPC:
781381287357
Item #:
251625

UNILETS EFS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 2, Enclosure: NEMA 7CD, 9EFG, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handl

Manuals & Documentation

Features

  • Discontinued
Catalog Number EFS-FR2-Q
Manufacturer Appleton Electric
Brand Appleton
Country of Origin China
Made in USA No
Amperage Rating 20
Application For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Enclosure NEMA 7CD, 9EFG
Special Features Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Choice of front-operating or side rocker arm handle each may be locked in ON or OFF position; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Enclosures furnished with internal ground screw; For installation in: chemical plants, petrochemical plants, Refineries, other process industries; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
Standard UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
UPC 781381287357
GTIN 00781381287357
Item Type EFS Series 1-Gang Tumbler Switch
Voltage Rating 120 - 277
